Firmware 05.00 - DMS 4.2 EN - 02/2010 L 971
8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_Interpolator_1

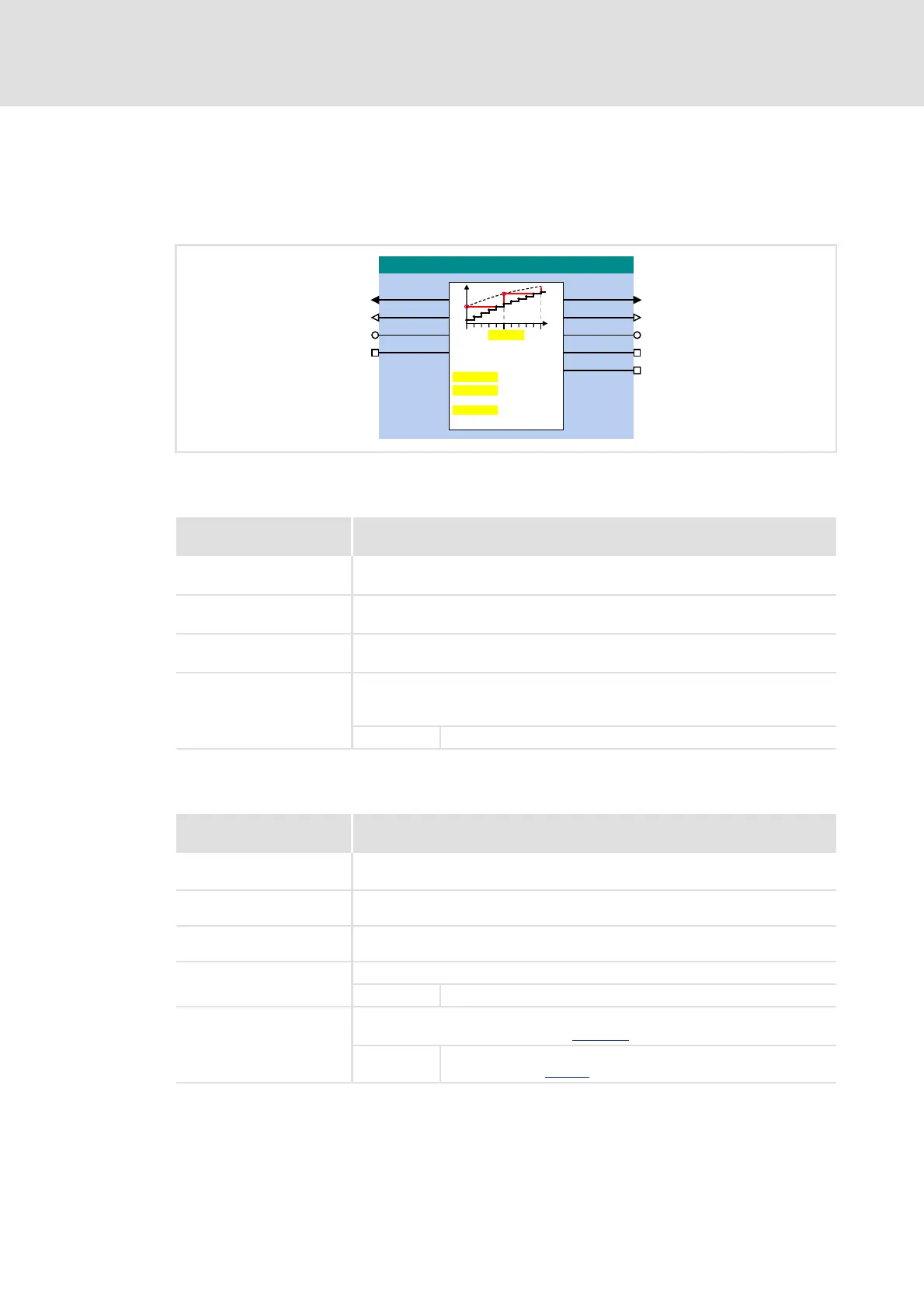

14.1.76 L_Interpolator_1
This FB interpolates a position setpoint and/or an analog value e.g. to compensate for
larger bus transmission cycles or to continue signal characteristics if data telegrams are
missing.
Inputs
Outputs
Identifier
Data type
Information/possible settings
dnPhIn_p
DINT
Position setpoint
Is interpolated and completed when signal interpolation is activated.
nPhdIn_v
INT
Angular velocity
Is only passed through to the nPhdOut_v output.
nNIn_a
INT
Analog value
Is interpolated when signal interpolation is activated.
bSpeedAct0
BOOL
Input for detecting the "Current speed is zero" status
This status signal needs to be transmitted by the setpoint source to ensure
trouble-free operation.
TRUE Current speed is zero.
Identifier
Data type
Value/meaning
dnPhOut_p
DINT
Output of the dnPhIn_p position setpoint which, if applicable, has been interpolated
and completed
nPhdOut_v
INT
Output of the nPhdIn_v angular velocity
nNOut_a
INT
Output of the nNIn_a analog value which, if applicable, has been interpolated
bPulse
BOOL
"Input values have been accepted" status signal
TRUE The input values have been accepted during this cycle.
bSignalError
BOOL
"Signal error" status signal
Only if signal monitoring is active (C00950/2
="1:On").
TRUE The number of missing data telegrams has exceeded the limit value
parameterised in C00952
.
/B,QWHUSRODWRUB
GQ3KL2XWBSGQ3KL,QBS
Q3KG,QBY
Q1,QBD
E6SHHG$FW
Q3KG2XWBY
Q12XWBD
E3XOVH
E6LJQDO(UURU
&
1RRILQWHUSRODWLRQF\OHV
& ,QWHUSRODWLRQ
& 0RQLWRULQJ
&
0D[1RRI
HUURUF\FOHV
$FWLYDWH
