Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 443
8400 HighLine | Parameter setting & configuration
Basic drive functions (MCK)
Holding brake control

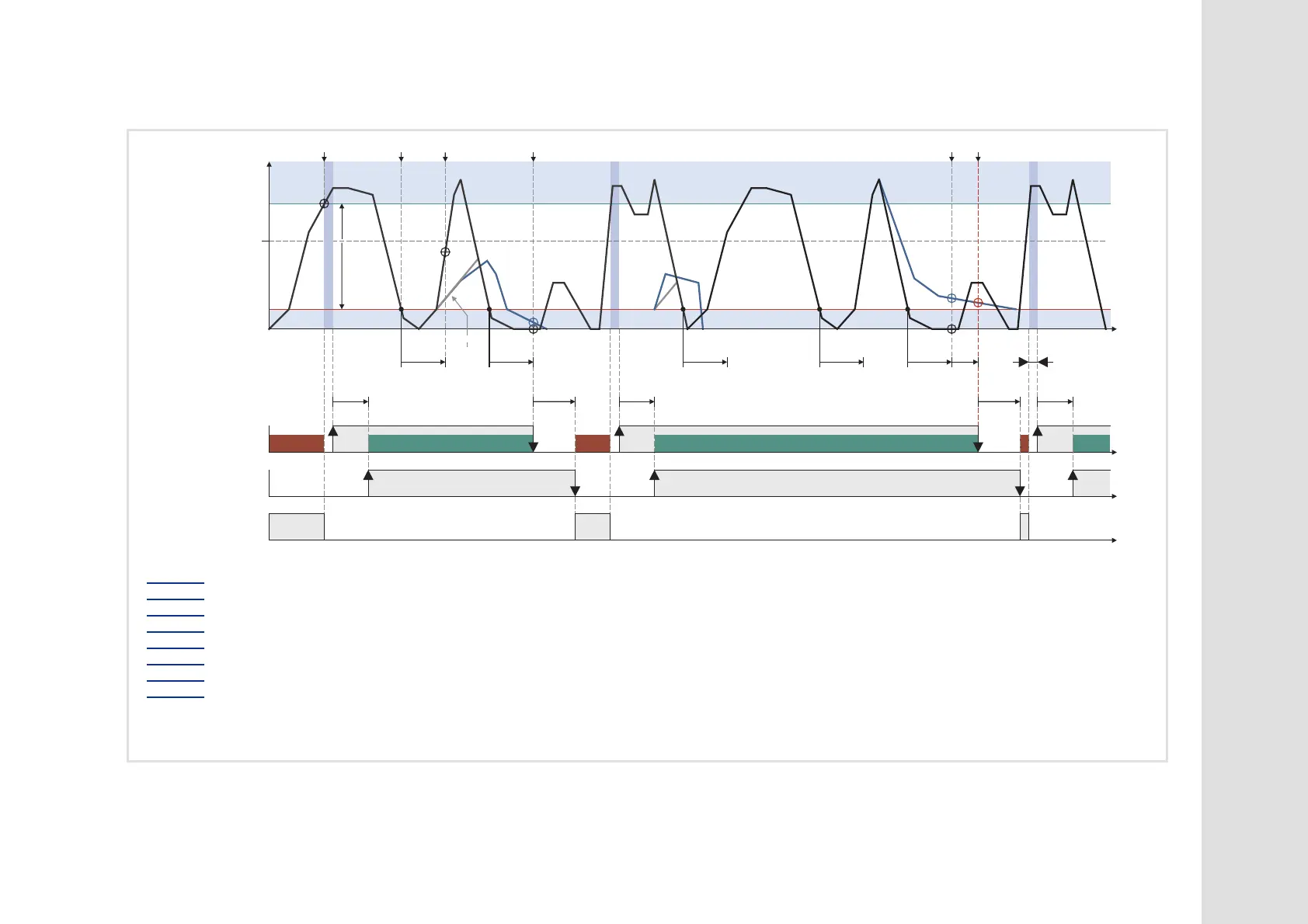

8.12.2.3 Time response of the brake (time diagram)
[8-1] Time diagram
n C02581/1: Switching threshold
o C02581/2
: Hysteresis for release
p C02581/3
: Hysteresis for application
q C02593/2
: Application delay
r C02610/1
: Ramp time for approaching the setpoint speed
s C02589/1
: Applying time
t C02589/2
: Releasing time
u C02593/1
: Actual value monitoring time
v Time slot for magnetising/precontrol
CINH = controller inhibit
Speed setpoint reaches upper switching threshold, release process starts.
Speed setpoint reaches lower switching threshold, application delay starts.
After the application delay, the speed threshold is no longer below the lower switching threshold, therefore,
no application process is started.
After the application delay, speed threshold and actual value are below the switching threshold, the
application process starts.
After the application delay, the actual value is not yet below the lower switching threshold, the actual value
monitoring time starts.
After the actual value monitoring time, the actual value is still not yet below the lower switching threshold,
the application process starts.
T
OffDelay
T
OffDelay
T
OffDelay
T
OffDelay
T
OffDelay
t
closed
T
On
released
T
Off
T
On
T
Off
T
On
n
t
T
nAct
1 52 4
t
30
n
Set
n
Act
n
Act
n
Set
bBRKReleaseOut
CINH
n
SetSync
t
bBRKReleased
released
