Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 957
8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_DigitalLogic5_2

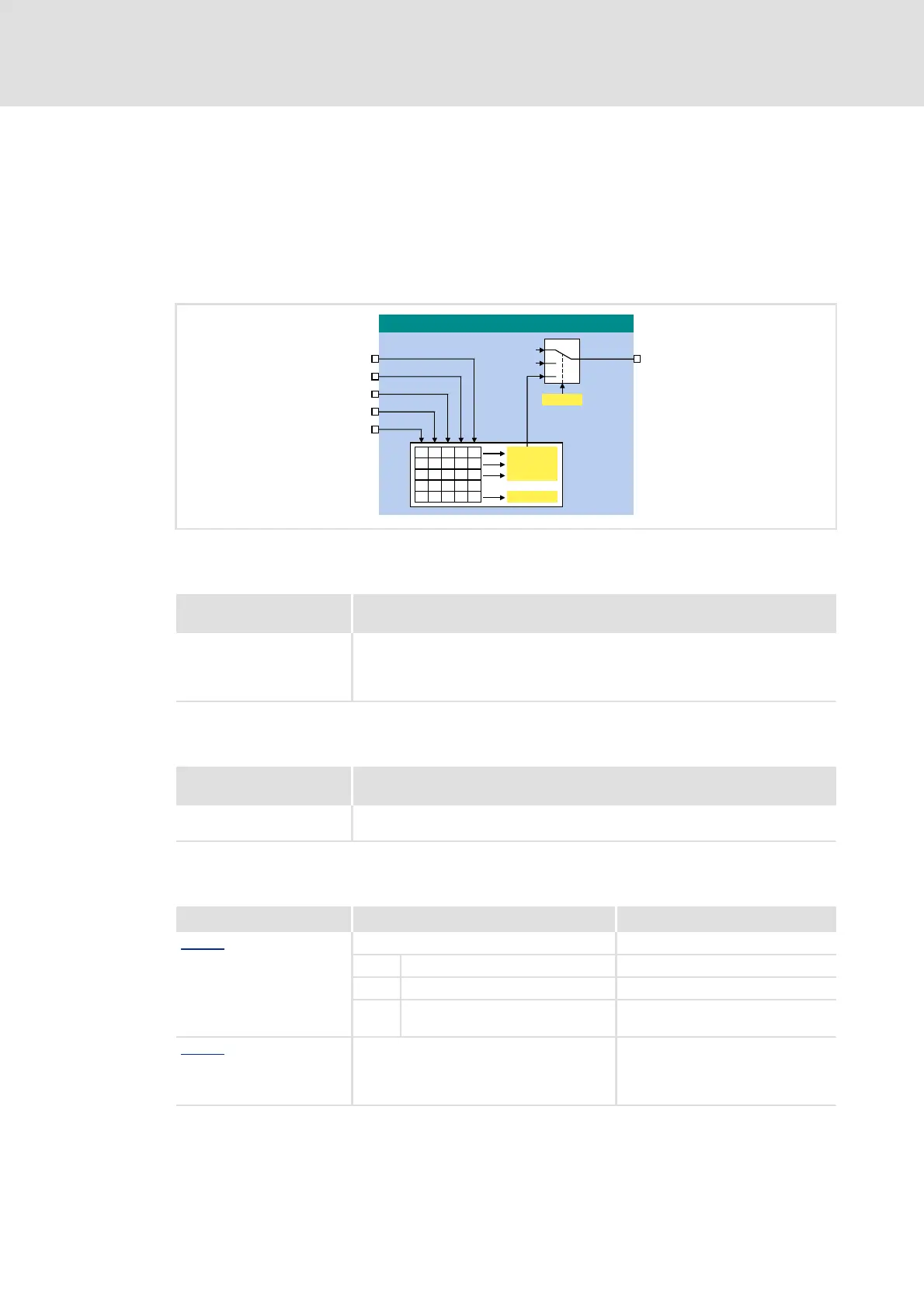

14.1.63 L_DigitalLogic5_2
This FB provides a binary output signal which is generated by the logic combination of the
input signals. It is also possible to provide a constant binary value that is independent of
the input signals.
Output of a fixed binary value
Output depending on the combination of the input signals
Inputs
Outputs
Parameter
Identifier
Data type
Information/possible settings
bIn1
...
bIn5
BOOL
Input signal 1 ... 5
Identifier
Data type
Value/meaning
bOut
BOOL
Output signal
Parameter Possible settings Info
C00826
Function selection
0 "0" Constant value "FALSE"
1 "1" Constant value "TRUE"
2 bOut = f (truth table) The output value depends on the
parameterised truth table
C00827
See truth table Truth table
Each of the 32 possible input
combinations can be assigned to the
output value FALSE or TRUE.
/B'LJLWDO/RJLFB
E,Q
E2XW
&
&
&
&
E,Q
E,Q
E,Q
E,Q
&
