Function library

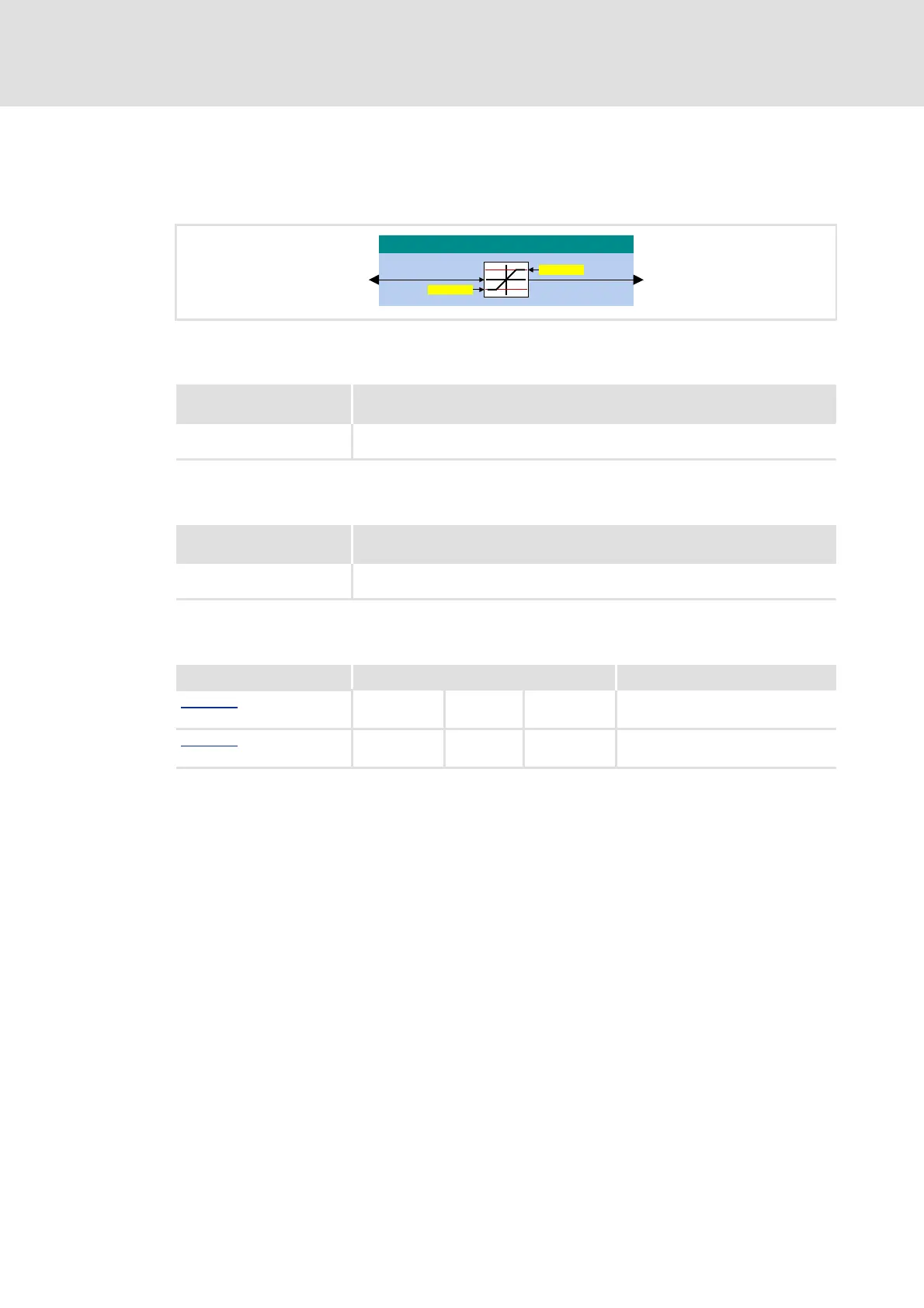

Function blocks | L_LimitPhi_2
14.1.81 L_LimitPhi_2
This FB limits an angle signal to a value range whose upper and lower value range can be
set via parameters.
Inputs
Outputs
Parameter
 Tip!
Always set the lower limit lower than the upper limit, otherwise value "0" is
provided at the dnOut_p output.
Identifier
Data type
Information/possible settings
dnIn_p
INT
Input signal
Identifier
Data type
Value/meaning
dnOut_p
INT
Output signal
Parameter Possible settings Info
C00631/3
-2147483647 Incr. 2147483647 Lower limit
• Lenze setting: -2147483647 incr.
C00631/4
-2147483647 Incr. 2147483647 Upper limit
• Lenze setting: 2147483647 incr.
