Lenze E84AVHC Series - 14.1.20 L_ArithmetikPhi_2

8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_ArithmetikPhi_2
894 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010

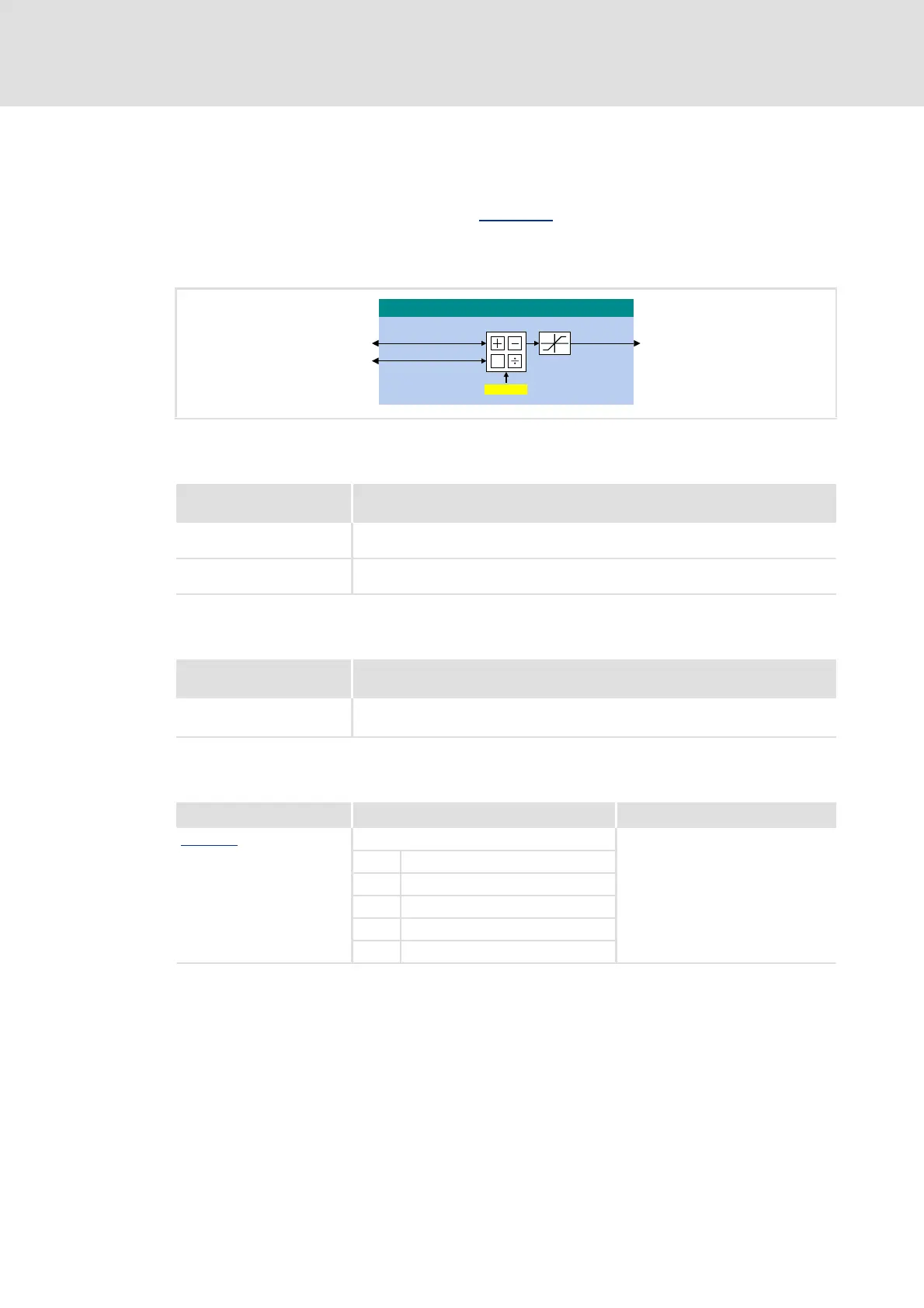

14.1.20 L_ArithmetikPhi_2
This FB can combine two angle signals arithmetically.
 The arithmetic function is selected in C01010/2
.
 All internal intermediate results and the value provided at the dnOut_p output are
internally limited to ±2147483647 (±2
31
-1).
Inputs
Outputs
Parameter
Identifier
Data type
Information/possible settings
dnIn1_p
DINT
Input signal 1
dnIn2_p
DINT
Input signal 2
Identifier
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2147483647
Parameter Possible settings Info
C01010/2
Function selection
0 dnOut_p = dnIn1_p
1 dnOut_p = dnIn1_p + dnIn2_p
2 dnOut_p = dnIn1_p - dnIn2_p
3 dnOut_p = dnIn1_p * dnIn2_p
4 dnOut_p = dnIn1_p / dnIn2_p
/B$ULWKPHWLN3KLB
GQ,QBS GQ2XWBS
GQ,QBS
r

&
)XQFWLRQ
