8400 HighLine | Parameter setting & configuration
I/O terminals
Analog terminals
6.3.2 Parameterising analog output

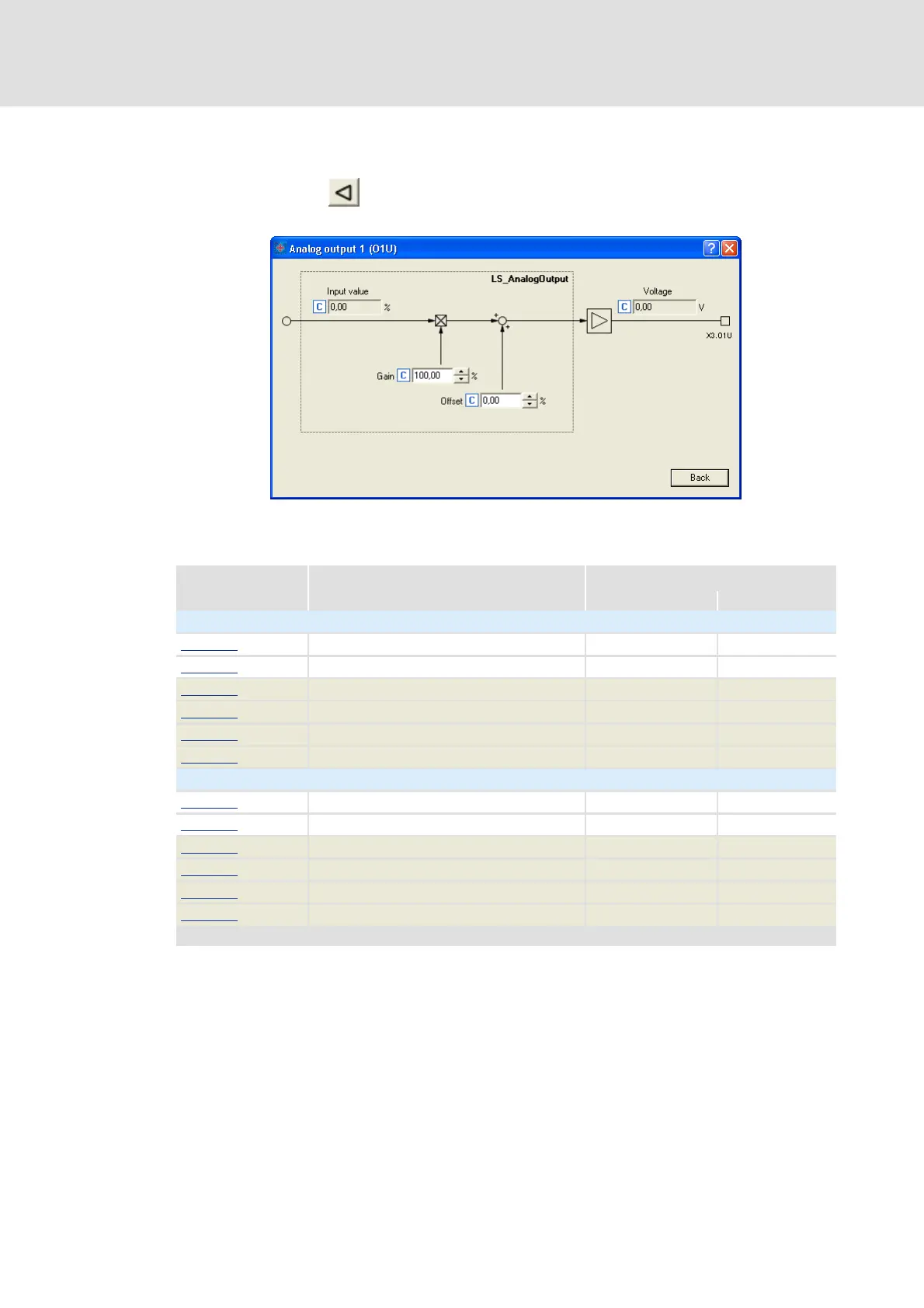

By clicking on the button on the Terminal assignment tab, you can open the
parameterising dialog for the corresponding analog output (here: O1U):
Short overview of parameters for the analog outputs:
Parameter Info Lenze setting
Value Unit
Analog output 1
C00434/1
O1U: Gain 100.00 %
C00435/1
O1U: Offset 0.00 %
C00439/1 O1U: Input value (from application) - %
C00439/3 O1I: Input value (from application) - %
C00436/1 O1U: Voltage - V
C00437/1 O1I: Current - mA
Analog output 2
C00434/2 O2U: Gain 100.00 %
C00435/2
O2U: Offset 0.00 %
C00439/2 O2U: Input value (from application) - %
C00439/4 O2I: Input value (from application) - %
C00436/2 O2U: Voltage - V
C00437/2 O2I: Current - mA
Highlighted in grey = display parameter
