Firmware 05.00 - DMS 4.2 EN - 02/2010 L 407
8400 HighLine | Parameter setting & configuration
Basic drive functions (MCK)
Manual jog
8.7.1 Parameter setting

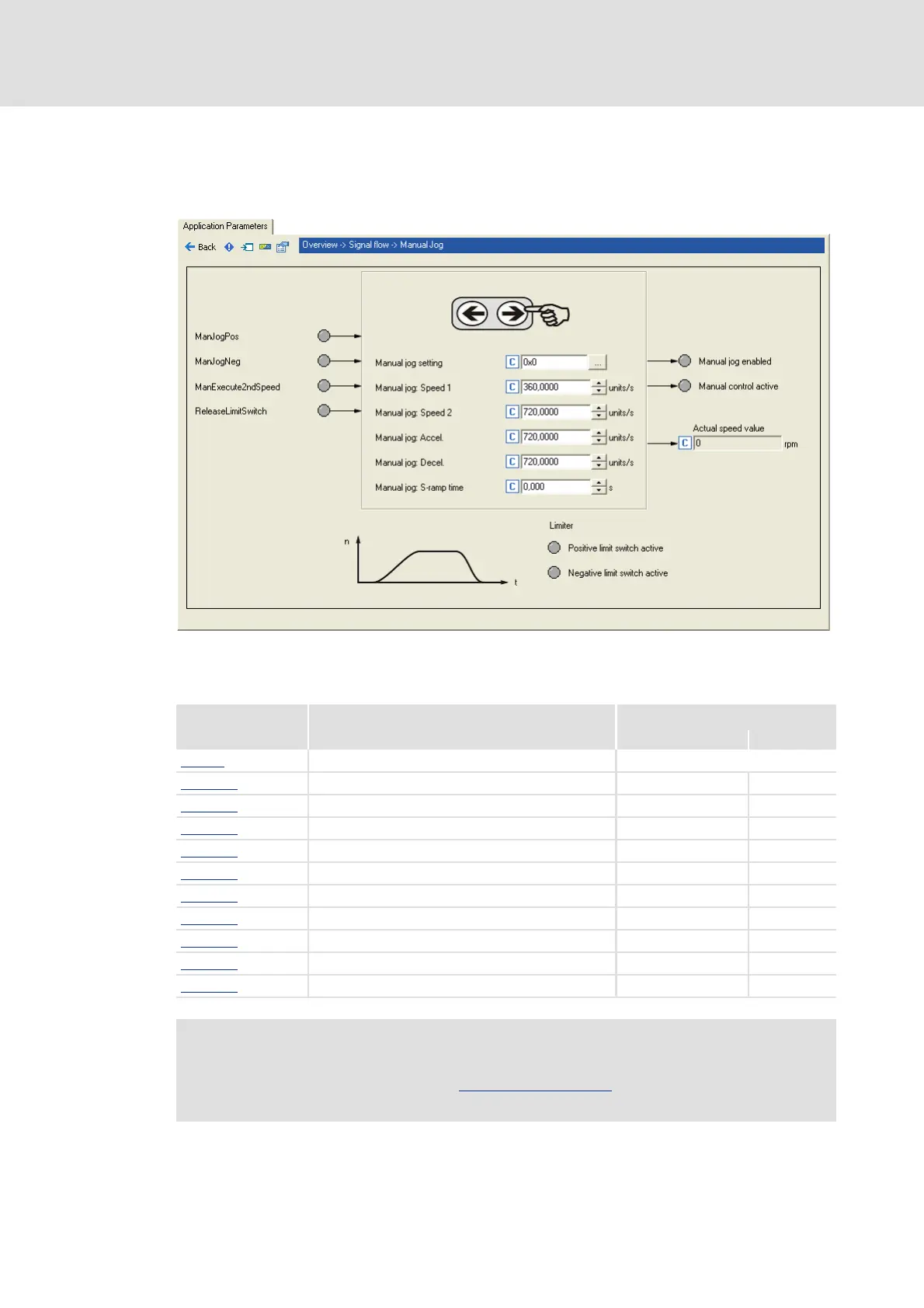

Parameterisation dialog in the »Engineer«
Short overview of parameters for "manual jogging" mode":
Parameter Info Lenze setting
Value Unit
C01230 MCK: Manual jog setting Bit coded
C01231/1
Manual jog: speed 1 360.0000 units/s
C01231/2
Manual jog: Speed 2 720.0000 units/s
C01232/1
Manual jog: Acceleration 720.0000 units/s2
C01232/2
Manual jog: Deceleration 720.0000 units/s2
C01233/1
Manual jog: S-ramp time 0.000 s
C01235/1
Waiting time 2nd speed 5.000 s
C01234/1
Manual jog: breakpoint 1 0.0000 unit
C01234/2
Manual jog: Breakpoint 2 0.0000 unit
C01234/3
Manual jog: Breakpoint 3 0.0000 unit
C01234/4
Manual jog: Breakpoint 4 0.0000 unit
Note!
For trouble-free operation, the Machine parameters (at least gearbox factor and
feed constant) must also be set correctly!
