Lenze E84AVHC Series - 14.1.22.2 Function 2: nIn1 > nIn2

8400 HighLine | Parameter setting & configuration
Function library
Function blocks | L_Compare_1
898 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
14.1.22.2 Function 2: nIn1 > nIn2
This function serves, for instance, to implement the comparison "actual speed is higher
than a limit value" (n
act
> n
x
) for one direction of rotation.

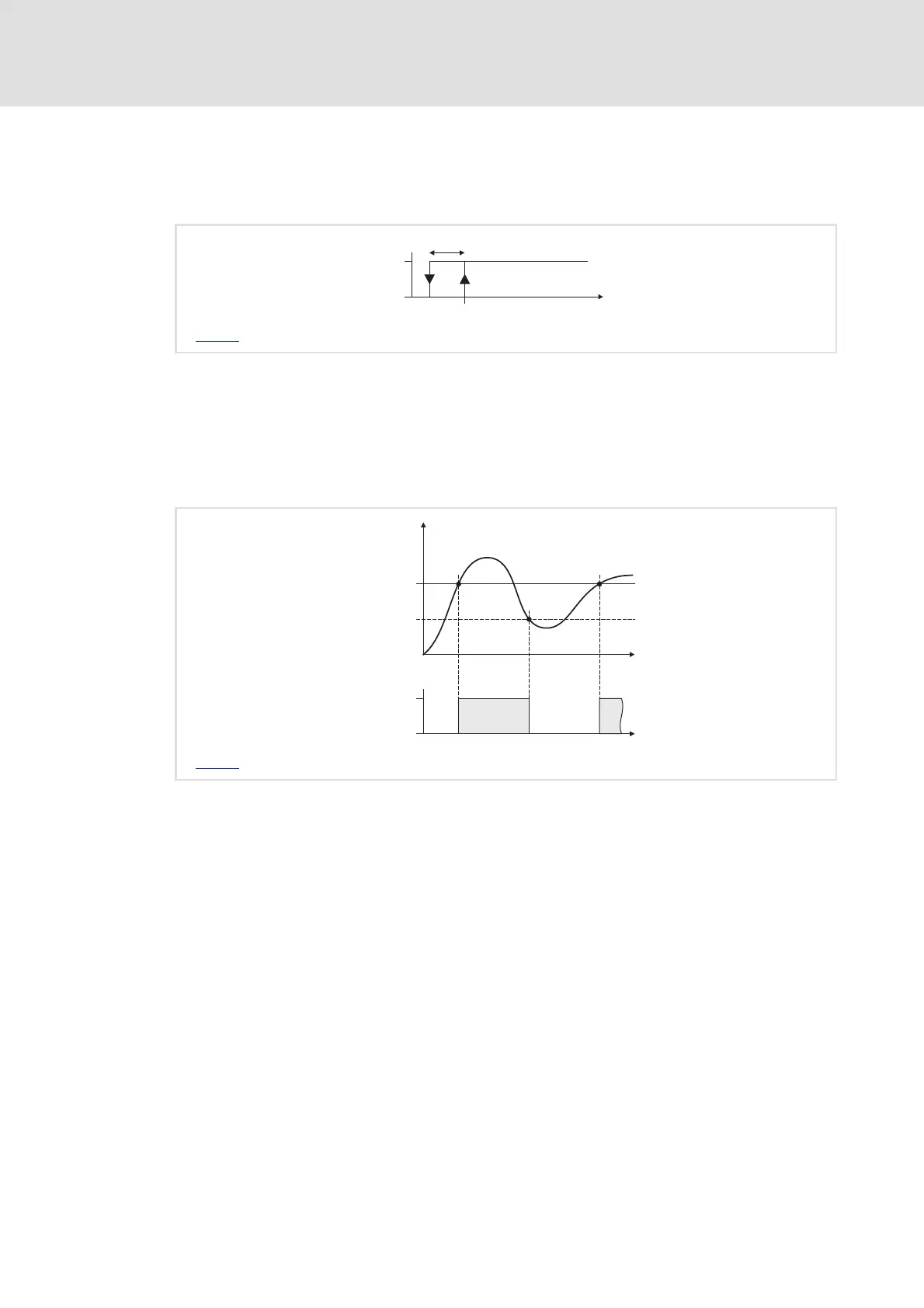

[14-8] Function 2: Switching performance
Functional sequence
1. If the value at nIn1_a exceeds the value nIn2_a, bOut changes from FALSE to TRUE.
2. Only if the signal at nIn1_a falls below the value of nIn2_a - hysteresis again, bOut
changes back from TRUE to FALSE.
[14-9] Function 2: Example
n C00681: Hysteresis
TRUE
FALSE
bOut
nIn2_a
nIn1_a

n C00681: Hysteresis
nIn1_a
nIn2_a
TRUE
FALSE
bOut
t
t

