8400 HighLine | Parameter setting & configuration
Technology applications
TA "Switch-off positioning"
7.6.1 Basic signal flow

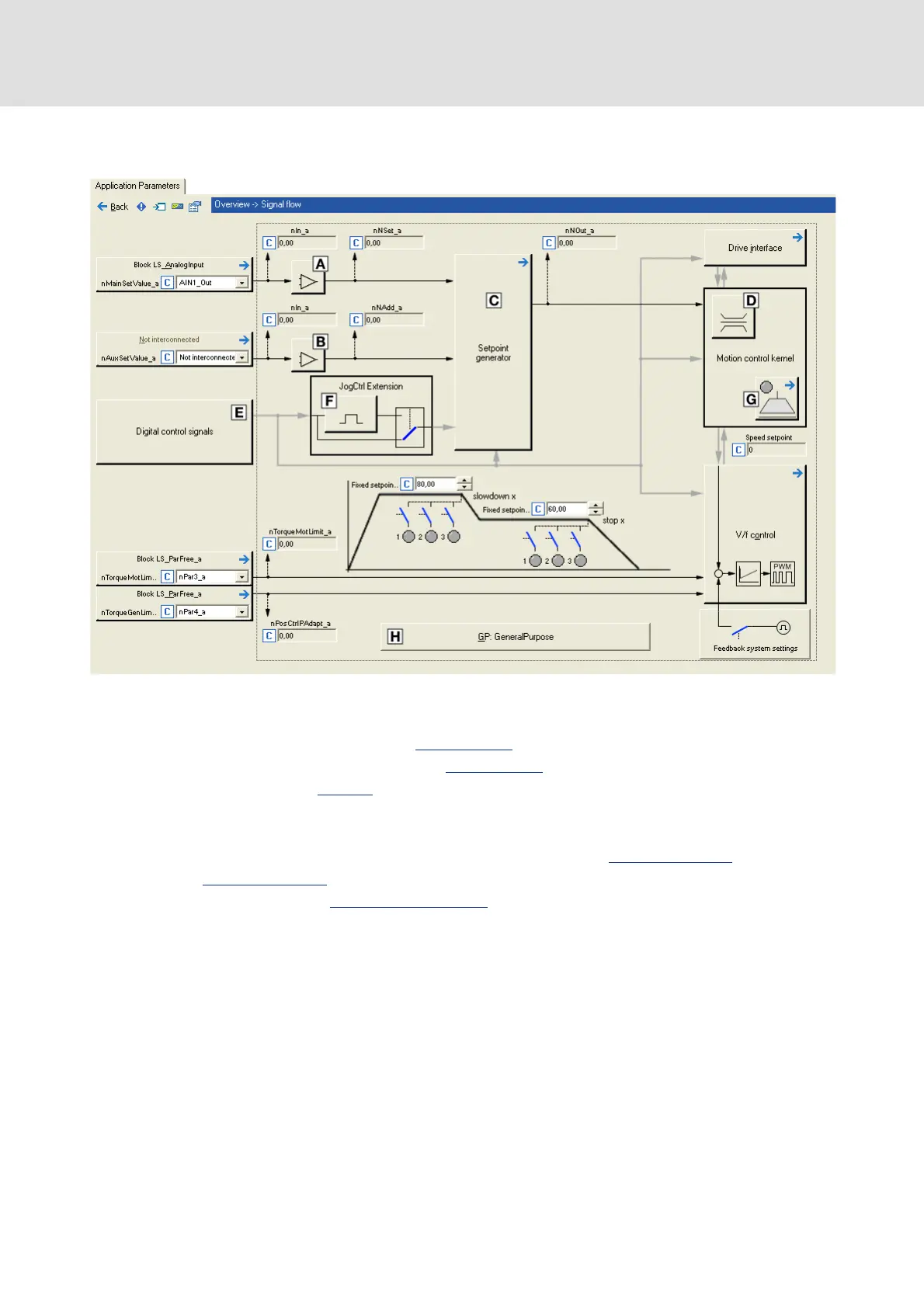

[7-1] Signal flow of the switch-off positioning
Main speed setpoint offset and gain (L_OffsetGainP_1)
Additional speed setpoint offset and gain (L_OffsetGainP_2
)
Setpoint generator (L_NSet_1
)
Speed setpoint input limitation
Terminal assignment & display of digital control signals
Selection of edge/level for tripping the ramp down and stop functions (L_JogCtrlExtension_1
)
Holding brake control
Integrated disposable "GeneralPurpose" functions:
Analog switch , arithmetic, multiplication/division, binary delay element, binary logic, analog comparison, D-
flipflop
