8400 HighLine | Parameter setting & configuration
Fieldbus interface
Control mode "MCI"
11.2.2 Port block "LP_MciOut"

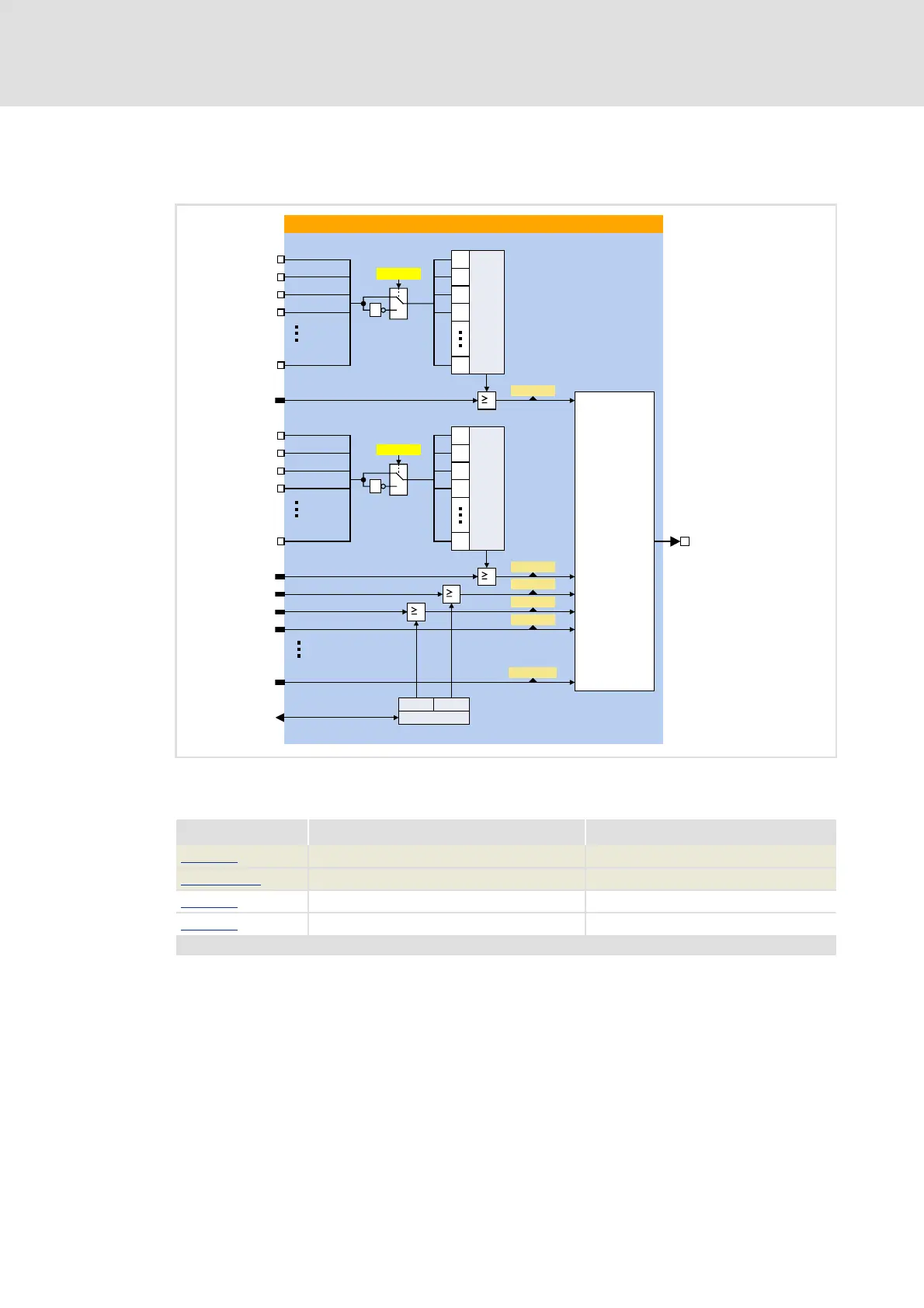

The LP_MciOut port block maps the MCI-PDOs to be transmitted in the FB Editor.
Short overview of the parameters for LP_MciOut:
Parameter Info Lenze setting
C00877/1 LP_MciOut:wState -
C00877/2...16 LP_MciOut: wOut2 ... wOut16 -
C00890/2
LP_MciOut: Inversion bState_B0..15 0x0000
C00890/4
LP_MciOut: Inversion bOut2_B0..15 0x0000
Highlighted in grey = display parameter
