Lenze E84AVHC Series - 5.1.1 Selecting a motor from the motor catalogue in the Engineer

8400 HighLine | Parameter setting & configuration
Motor control (MCTRL)
Motor selection/Motor data
100 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
5.1.1 Selecting a motor from the motor catalogue in the »Engineer«

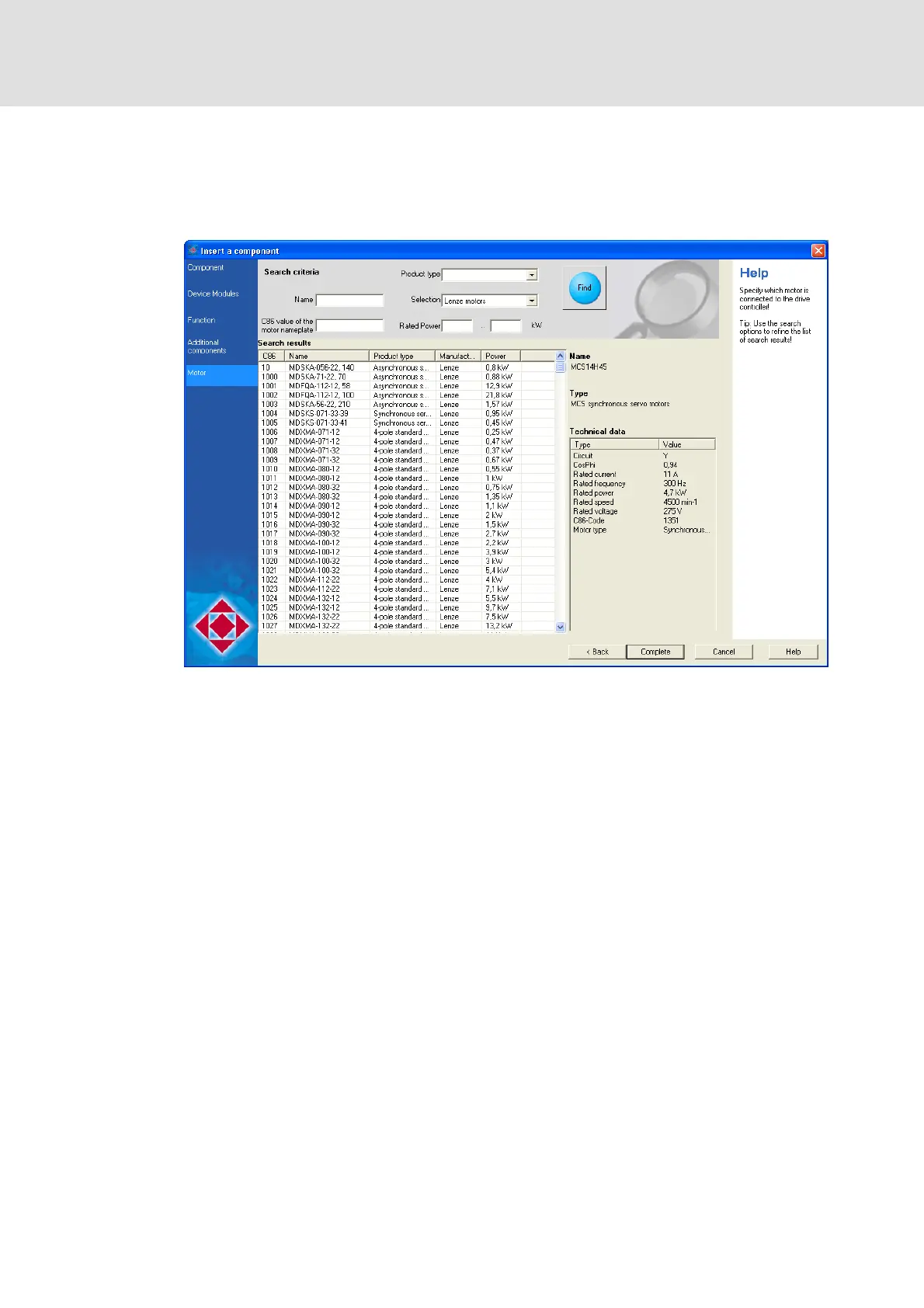

If a checkmark is set in the Motor control field in the "Other components" dialog when the
controller is inserted into the project, the motor for the controller can be selected from the
motor catalogue in another dialog:
 Alternatively, the motor can be inserted into the project at a later time via the Insert a
component command.
 Go to the Application parameters tab in the Overview  Motor data dialog level and
click the From motor catalogue... button to also reach the motor catalogue for the
selection of another motor.
