8400 HighLine | Parameter setting & configuration
Working with the FB Editor
Reconfiguring the predefined interconnection
844 L Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010
13.4.1.2 Inserting a system block
A system block is inserted similarly to the way a function block is inserted.
How to insert a system block into the interconnection:
1. In the FB Editor toolbar, click the icon.

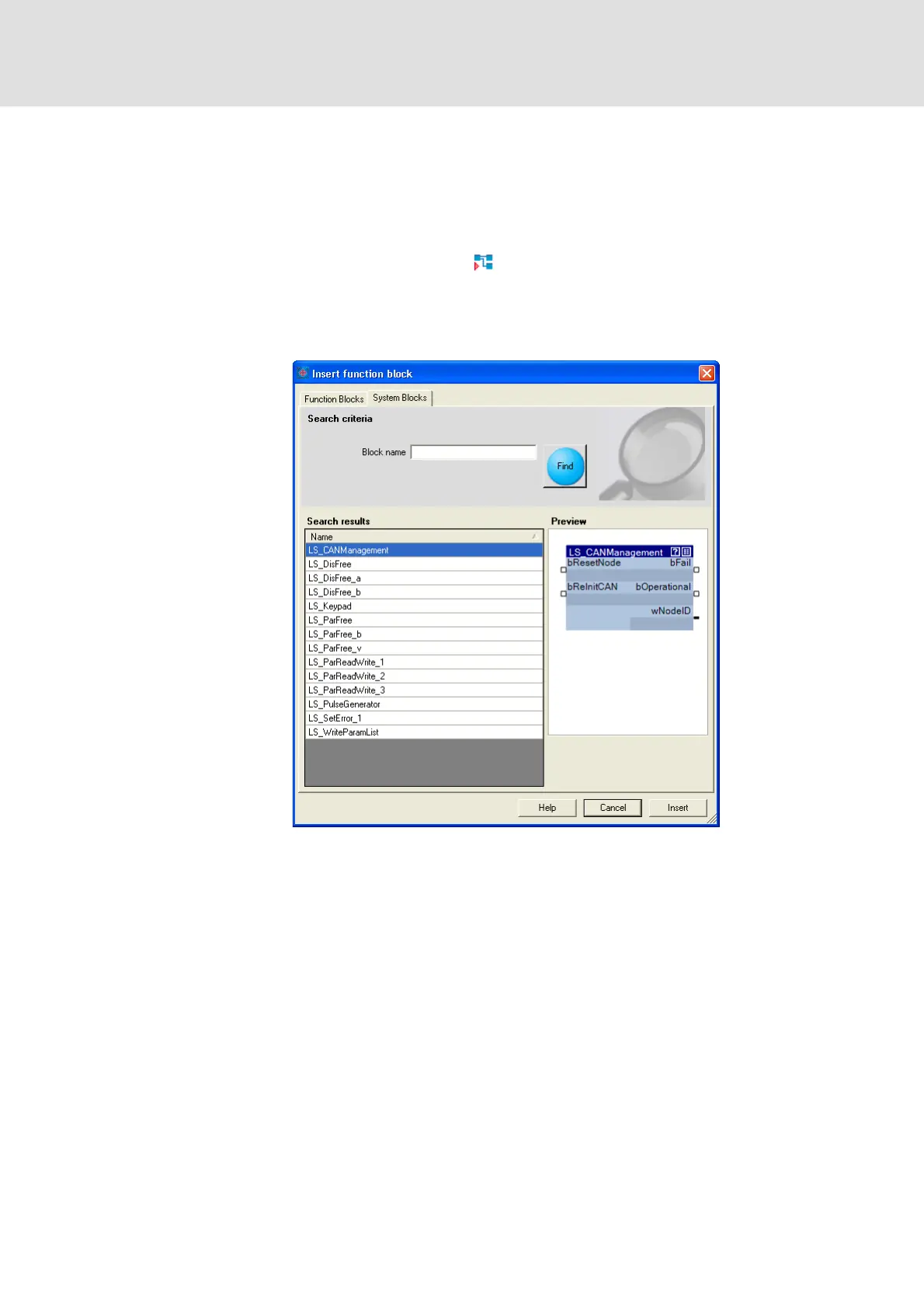

•The Insert Function Block dialog box appears:
2. Unless it is already displayed, select the System Blocks tab.
• All system blocks available are displayed in the Search results list field.
• A preview of the selected function block is displayed.
3. If required, define Search criteria to accordingly narrow down the system blocks
available:
• Block name:
String which must be contained in the name of the system block.
4. After changing the search criteria, press the Find button to update the selection.
• Then, only the system blocks complying with the features set in the search
criteria are shown in the Search Results list field.
• If no search criteria are set, all system blocks available are shown.
