Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 263
8400 HighLine | Parameter setting & configuration
Technology applications
TA "Actuating drive speed"
7.4.1 Basic signal flow

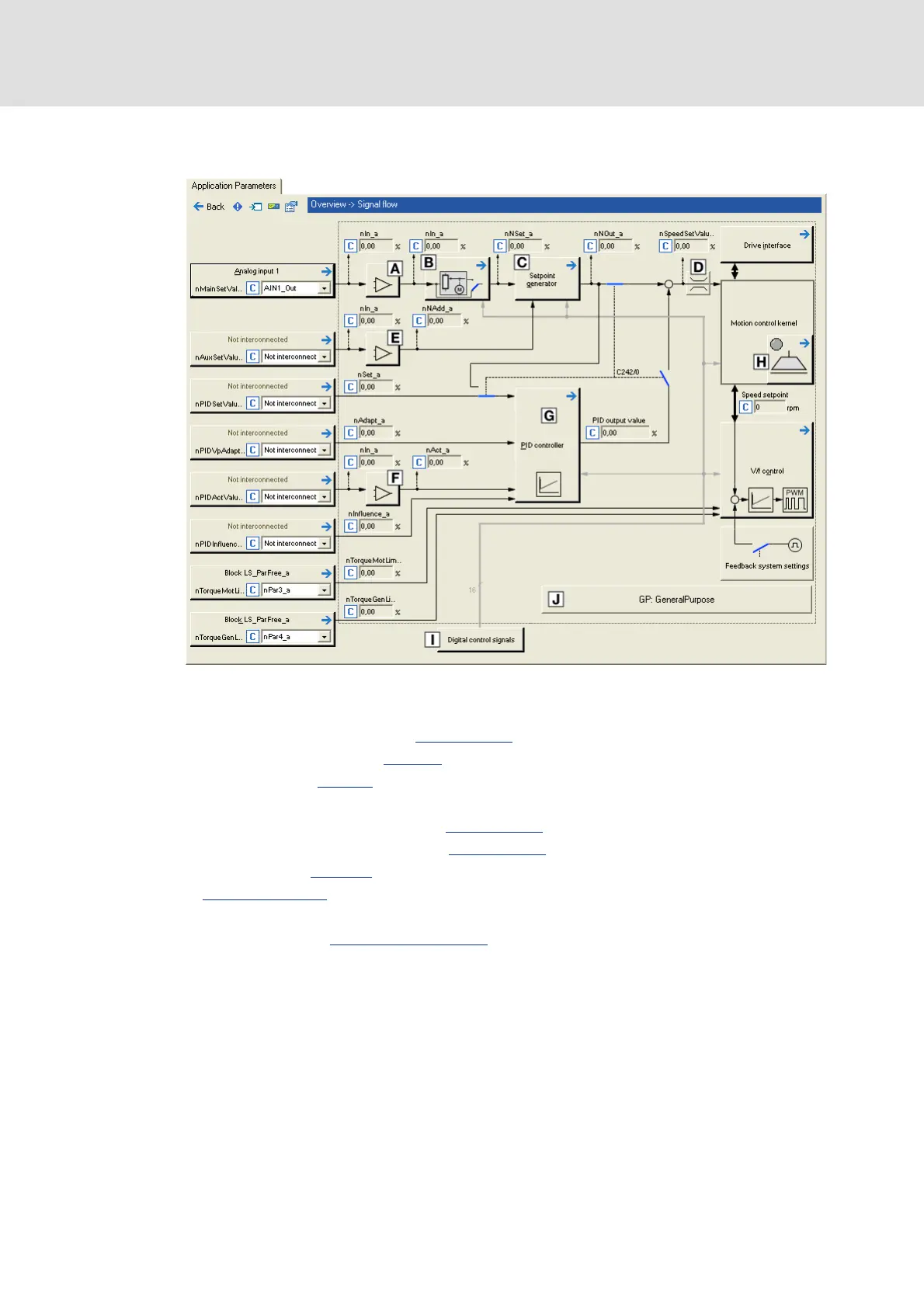

[7-2] Signal flow of the technology application "Actuating drive speed"
Main speed setpoint offset and gain (L_OffsetGainP_1)
Motor potentiometer function (L_MPot_1
)
Setpoint generator (L_NSet_1
)
Speed setpoint input limitation
Additional speed setpoint offset and gain (L_OffsetGainP_2
)
Actual speed/sensor value offset and gain (L_OffsetGainP_3
)
Process controller (L_PCTRL_1
)
Holding brake control
Terminal assignment & display of digital control signals
Integrated disposable "GeneralPurpose" functions
:
Analog switch , arithmetic, multiplication/division, binary delay element, binary logic, analog comparison, D-
flipflop
