Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 99
8400 HighLine | Parameter setting & configuration
Motor control (MCTRL)
Motor selection/Motor data
Other motor data

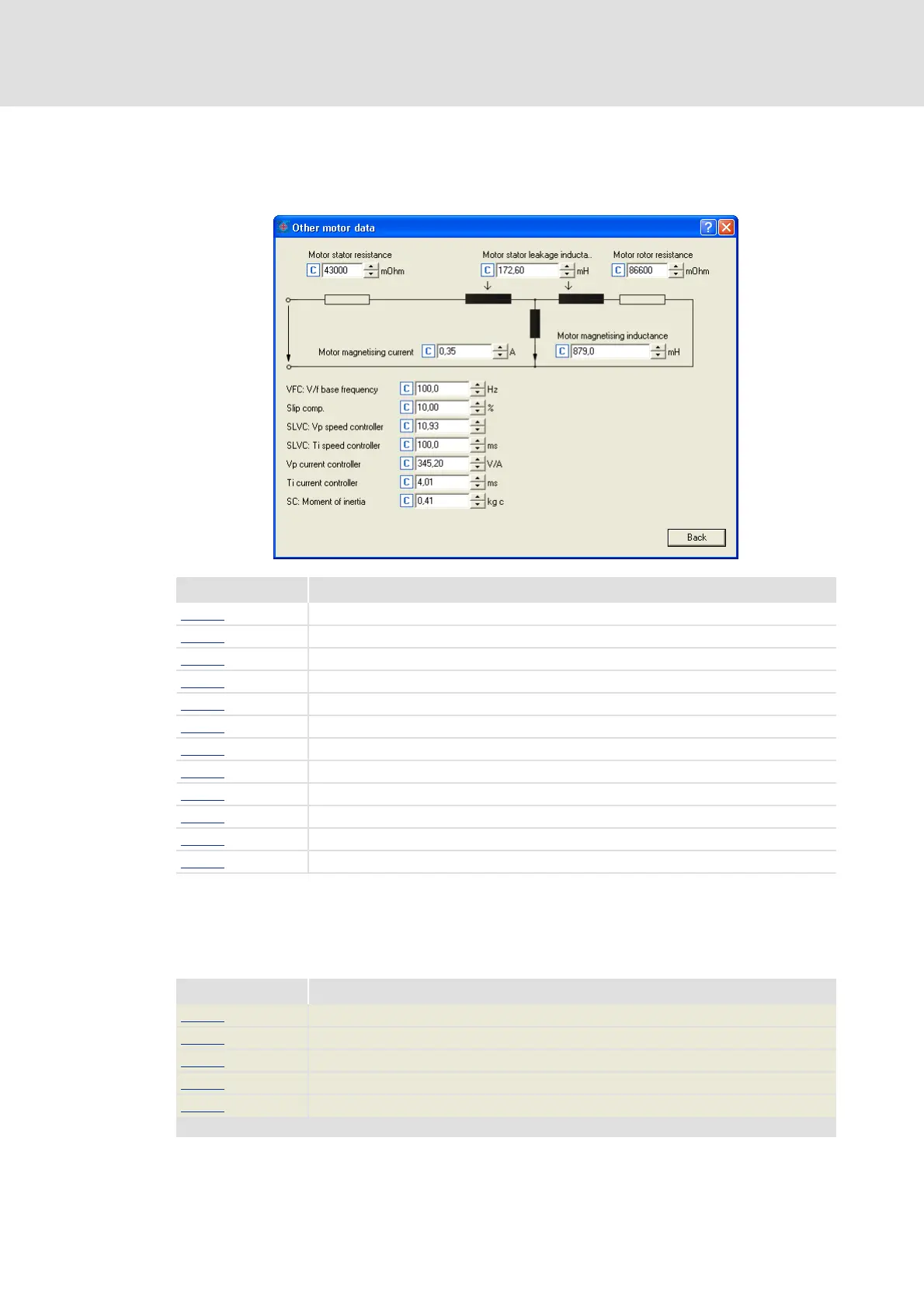

Click the Other motor data... button and go to the Other motor data dialog box including
the motor equivalent circuit:
Actual values
When an online connection to the controller has been established, the following actual
values are displayed in the parameterisation dialog under "Actual values":
Parameter Info
C00084
Motor stator resistance
C00085
Motor stator leakage inductance
C00082
Motor rotor resistance
C00095
Motor magnetising current
C00092
Motor magnetising inductance
C00015
VFCplus: U/f base frequency
C00021
Slip compensation
C00070
SLVC: Vp speed controller
C00071
SLVC: Ti speed controller
C00075
Vp current controller
C00076
Ti current controller
C00273
Moment of inertia
Parameter Info
C00051 Actual speed value
C00052 Motor voltage
C00053 DC-bus voltage
C00054 Motor current
C00066 Thermal motor load (I2xt)
Highlighted in grey = display parameter
