Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 35/970

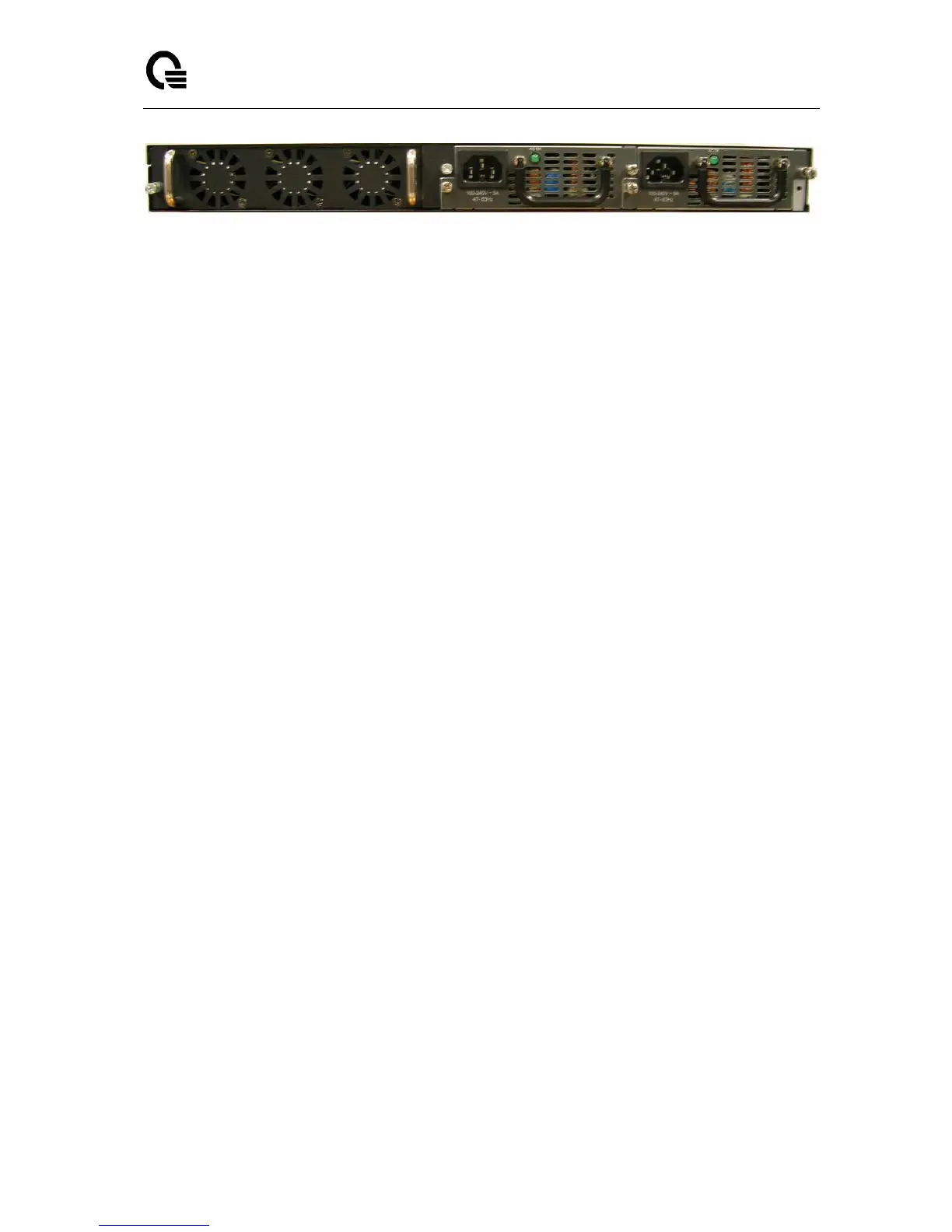

The redundant AC/DC power unit is a two slots for redundant, hot-swappable power
supply. The norminal input voltage in the range from 100 ~ 240 VAC at 48 ~ 62 Hz. The
norminal output voltage set point 12 VDC, Minimum/Maximum output current is 2 Amps ~25
Amps.
1.6 Management Options
The system may be managed by using two Service Ports through a Web Browswer,Telent,
SNMP Function and using the console port on the front panel through CLI command.
1.7 Web-based Management Interface
After you have successfully installed the Switch, you can configure the Switch, monitor the
LED panel, and display statistics graphically using a Web browser, such as Netscape
Navigator (version 6.2 and higher) or Microsoft® Internet Explorer (version 5.0).
NOTE: To access the Switch through a Web browser, the computer running the Web browser
must have IP-based network access to the Switch.
1.8 Command Line Console Interface Through the Serial Port or Telnet
You can also connect a computer or terminal to the serial console port or use Telnet to
access the Switch. The command-line-driven interface provides complete access to all switch
management features.
1.9 SNMP-Based Management
You can manage the Switch with an SNMP-compatible console program. The Switch
supports SNMP version 1.0, version 2.0, and version 3.0. The SNMP agent decodes the
incoming SNMP messages and responds to requests with MIB objects stored in the database.
The SNMP agent updates the MIB objects to generate statistics The Switch supports a
