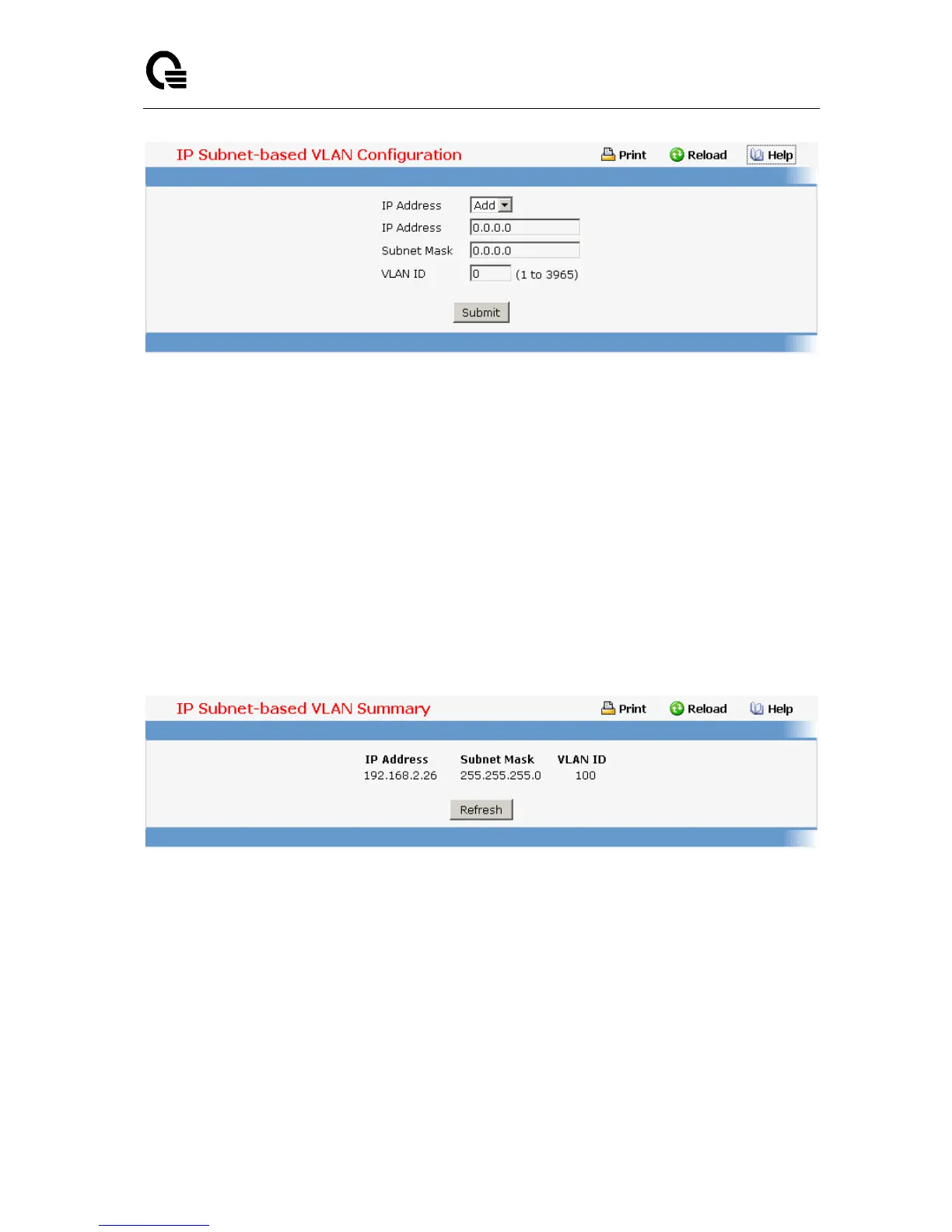

11.2.2.6.2. Viewing IP Subnet-based VLAN Information Page
Non-Configurable Data
IP Address - The IP Address of the subnet that is being bound to a VLAN ID.
Subnet Mask - Subnet mask of the IP Address bound to VLAN ID.
VLAN ID - VLAN ID to which above mentioned IP Subnet is being bound to. VLAN ID can
be any number in the range of (1 to 3965).
Command Buttons
Refresh - Update the screen with the latest information.
11.2.2.7 Managing MAC-based VLAN
11.2.2.7.1. MAC-based VLAN Configuration Page
MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and
thus classify traffic based on the source MAC address of the packet.
A MAC to VLAN mapping is defined by configuring an entry in the MAC to VLAN table. An entry
is specified via a source MAC address and the desired VLAN ID. The MAC to VLAN
configurations are shared across all ports of the device (i.e. there is a system wide table that
