11.2.2.8 Managing MAC-based Voice VLAN

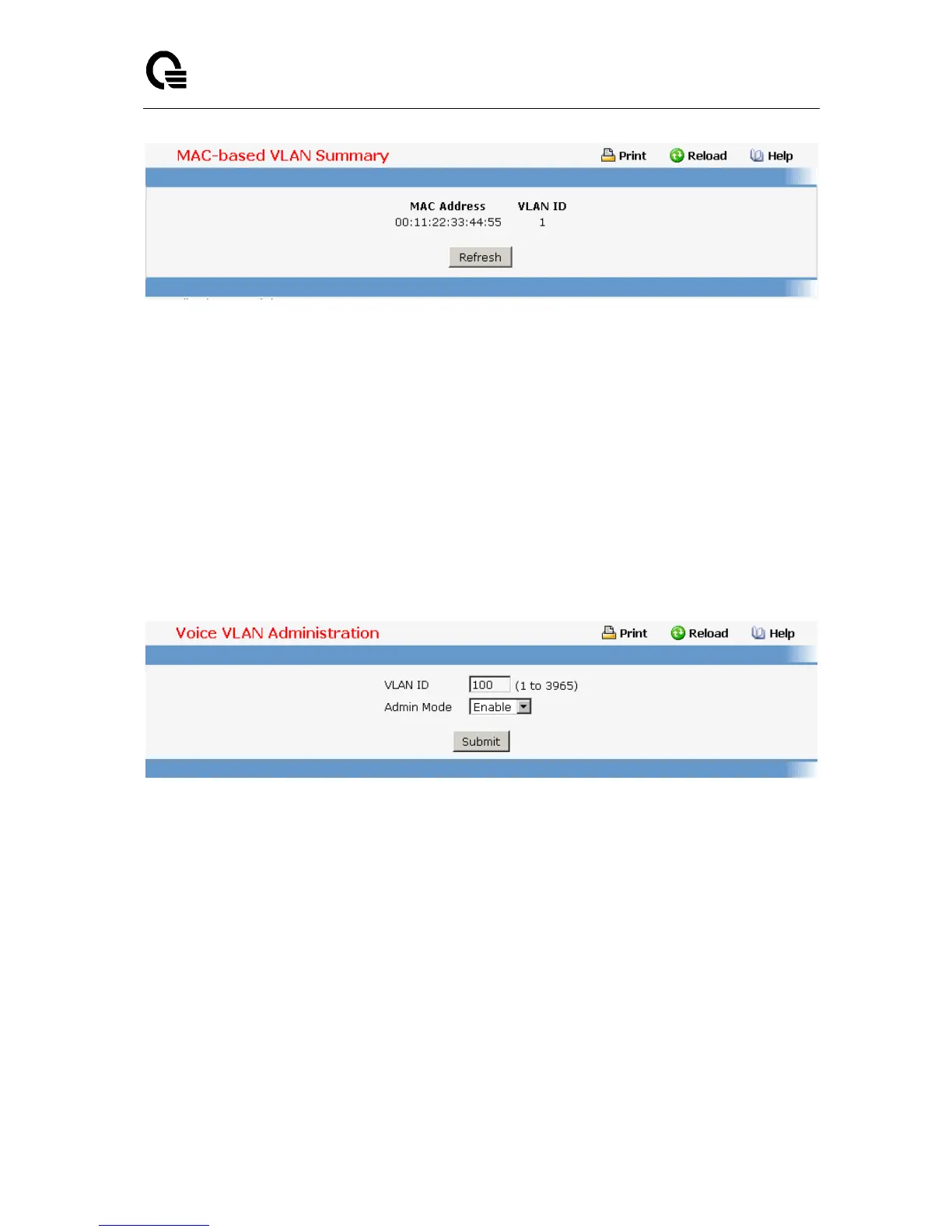

11.2.2.8.1. Voice VLAN Administration Page
Configurable Data
VLAN ID - Sets the VLAN as a Voice VLAN.
Admin Mode - Enables or disables the Voice VLAN function.
Command Buttons
Submit - Applies the new configuration and causes the changes to take effect. These
changes will not be retained across a power cycle unless a save configuration is
performed.
11.2.2.8.2. Voice VLAN Configuration Page
Selection Criteria
MAC Address - You can use this screen to create a new one. Use this pulldown menu to
select one of the existing Voice VLANs, or select 'Create' to add a new one.
Configurable Data
MAC Address - Specify the MAC Address for the new Voice VLAN. (You can only enter
data in this field when you are creating a new Voice VLAN.).
MAC Address Mask - Use this optional field to specify a mask for the Voice VLAN. The
mac-mask is the last eight digit of the mask code of the MAC address, the valid values are:
0xff, 0xfe, 0xfc, 0xf8, 0xf0, 0xe0, 0xc0, 0x80 and 0x0.
Voice-VLAN Priority - This field identifies the priority of the Voice VLAN you are
configuring. The priority-id is the priority of the voice traffic; the valid range is 0 to 7.
Voice VLAN Name - Use this field to specify the name of the voice device. It is to help the
