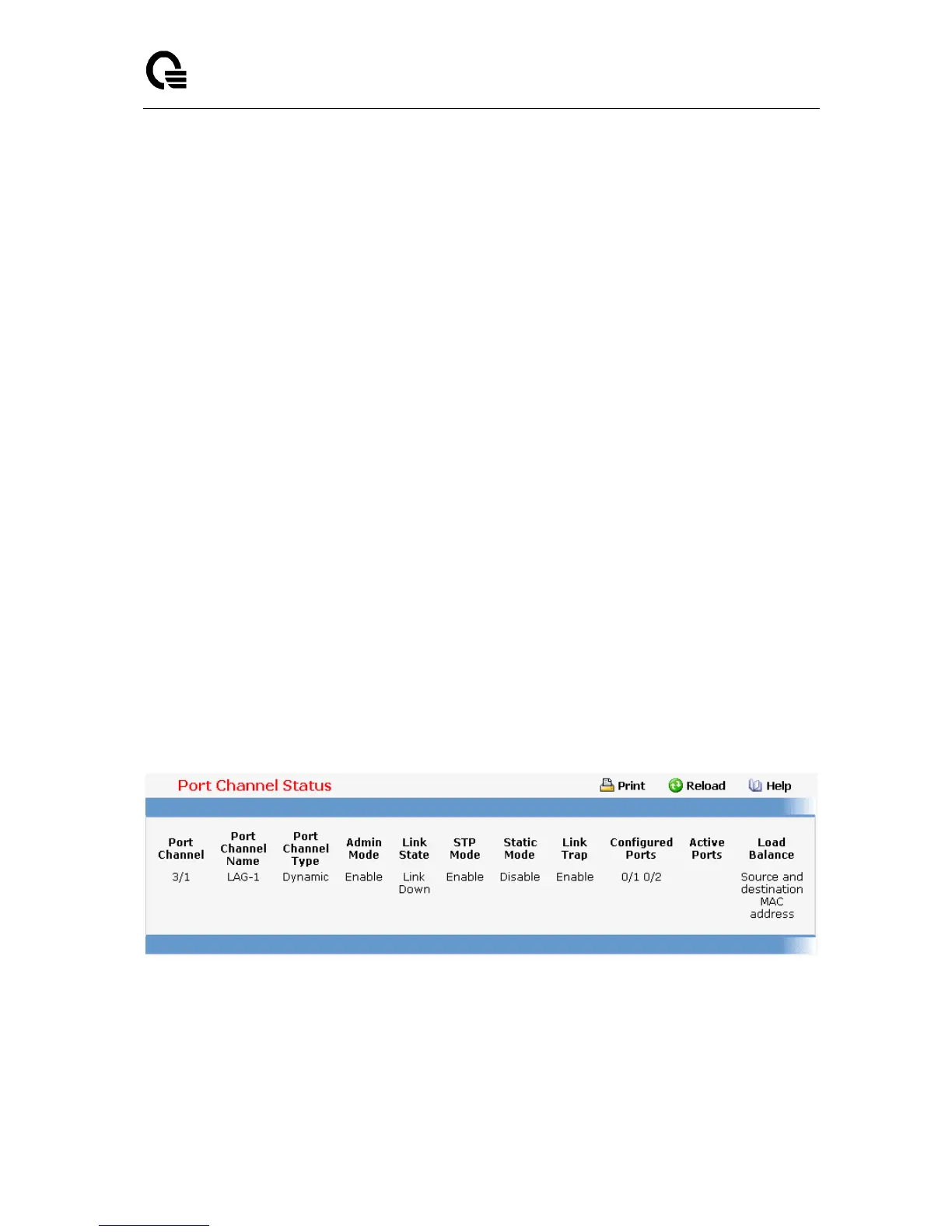

Port Channel Type - The type of this Port Channel.
Admin Mode - The Administrative Mode of the Port Channel, enable or disable.
Static Mode – Indicates whether port channel is static or dynamic.
Link Status - Indicates whether the Link is up or down.
STP Mode - The Spanning Tree Protocol Administrative Mode associated with the Port
Channel. The possible values are:
Disable - spanning tree is disabled for this Port Channel.
Enable - spanning tree is enabled for this Port Channel.
Link Trap - Whether or not a trap will be sent when link status changes. The factory
default is enabled.
Configured Ports - A list of the ports that are members of the Port Channel, in Slot/Port
notation. There can be a maximum of 8 ports assigned to a Port Channel.
Active Ports - A listing of the ports that are actively participating members of this Port
Channel, in Slot/Port notation. There can be a maximum of 8 ports assigned to a Port
Channel.
Load Balance – Indicates load-balnace mode of port channel. The possible values are:

Source MAC address - Sets the mode on the source MAC address.

Destination MAC address - Sets the mode on the destination MAC
address.

Source and destination MAC address - Sets the mode on the source and
destination MAC addresses.

Source IP address - Sets the mode on the source IP address.

Destination IP address - Sets the mode on the destination IP address.

Source and destination IP address - Sets the mode on the source and
destination IP addresses.
