Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 720/970

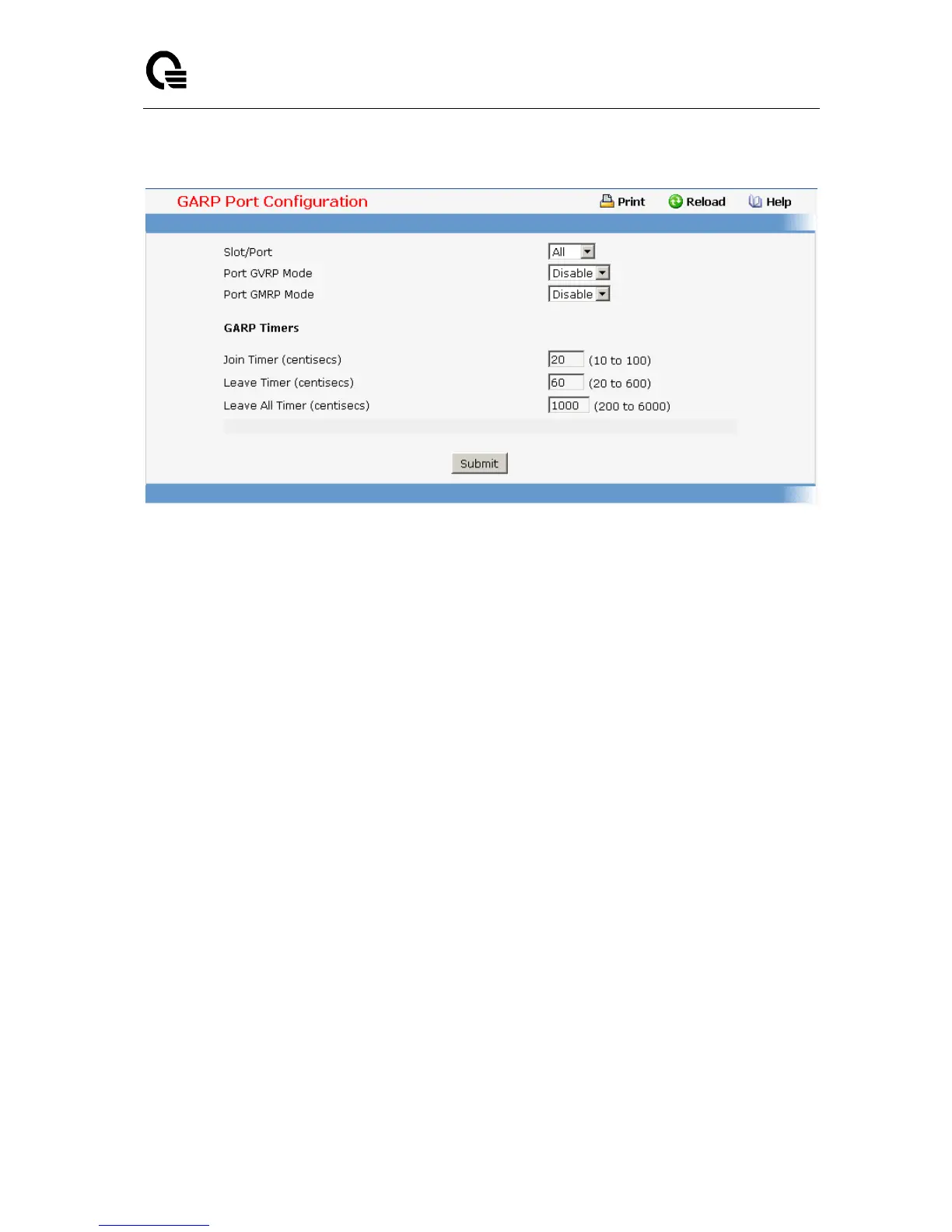

Submit - Update the switch with the values you entered. If you want the switch to retain
the new values across a power cycle you must perform a save.
11.2.2.11 Managing IGMP Snooping
11.2.2.11.1. Configuring IGMP Snooping Global Configuration Page
Use this menu to configure the parameters for IGMP Snooping, which is used to build
forwarding lists for multicast traffic. Note that only a user with Read/Write access privileges
may change the data on this screen.
Configurable Data
Admin Mode - Select the administrative mode for IGMP Snooping for the switch from the
pulldown menu. The default is disable.
Non-Configurable Data
Multicast Control Frame Count - The number of multicast control frames that are
processed by the CPU.
Interfaces Enabled for IGMP Snooping - A list of all the interfaces currently enabled for
IGMP Snooping.
Data Frames Forwarded by the CPU - The number of data frames forwarded by the
CPU.
VLAN Ids Enabled For IGMP Snooping - Displays VLAN Ids enabled for IGMP
snooping.
Command Buttons
