Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 49/970
4 Web-Based Management Interface
4.1 Overview
The Quanta LB4M Series Layer III plus QoS Managed Switch provides a built-in browser
interface that lets you configure and manage it remotely using a standard Web browser such
as Microsoft Internet Explorer 5.0 or later or Netscape Navigator 6.0 or later. This interface also
allows for system monitoring and management of the switch. The ‘help’ page covers many of
the basic functions and features of the switch and its Web interface. When you configure the
switch for the first time from the console, you can assign an IP address and subnet mask to the
switch. Thereafter, you can access the switch’s Web interface directly using your Web browser
by entering the switch’s IP address into the address bar. In this way, you can use your Web
browser to manage the switch from a central location, just as if you were directly connected to
the switch’s console port. Figure 4-1 shows this management method.

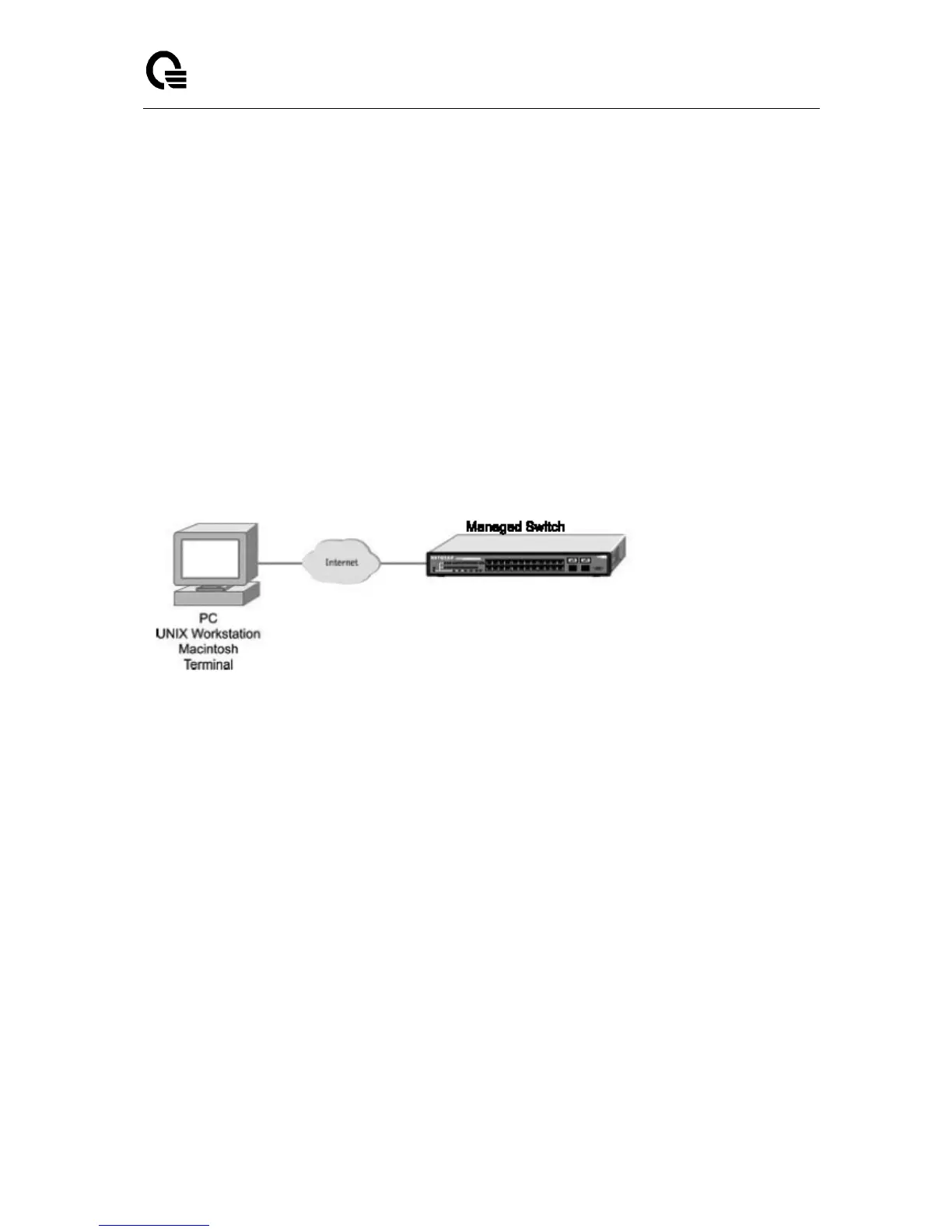

Figure 4-1: Web Management Method
4.2 How to log in
The Quanta LB4M Series Layer III plus QoS Managed Switch can be configured remotely from
Microsoft Internet Explorer (version 5.0 or above), or Netscape Navigator (version 4.78 or
above).
1. Determine the IP address of your managed switch.
2. Open your Web browser.
3. Log in to the managed switch using whatever IP address the unit is currently configured with.
Use the default user name of admin and default of no password, or whatever LAN address and
password you have set up.
A login window opens:
Click the Login link.
A user name and password dialog box opens.
