Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 700/970

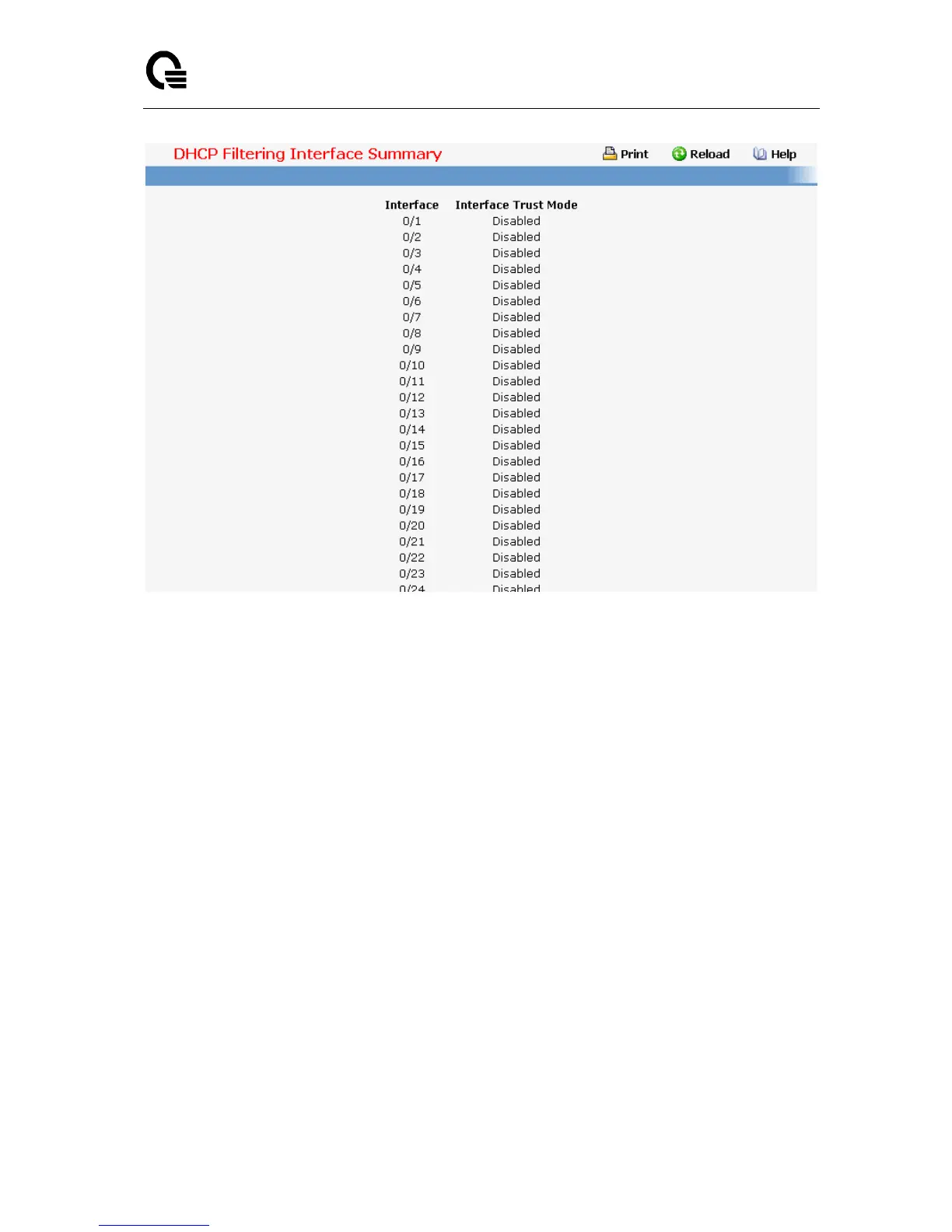

11.2.2.2 Managing Filters
11.2.2.2.1. Configuring MAC filter Configuration Page
Non-Configurable Data
MAC Filter - This is the list of MAC address and VLAN ID pairings for all configured filters.
To change the port mask(s) for an existing filter, select the entry you want to change. To
add a new filter, select "Create Filter" from the top of the list.
Configurable Data
MAC Address - The MAC address of the filter in the format 00:01:1A:B2:53:4D. You can
only change this field when you have selected the "Create Filter" option.
You cannot define filters for these MAC addresses:
o
00:00:00:00:00:00
o
01:80:C2:00:00:00 to 01:80:C2:00:00:0F
o
01:80:C2:00:00:20 to 01:80:C2:00:00:21
o
FF:FF:FF:FF:FF:FF
VLAN ID - The VLAN ID used with the MAC address to fully identify packets you want
filtered. You can only change this field when you have selected the "Create Filter" option.
