Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 653/970

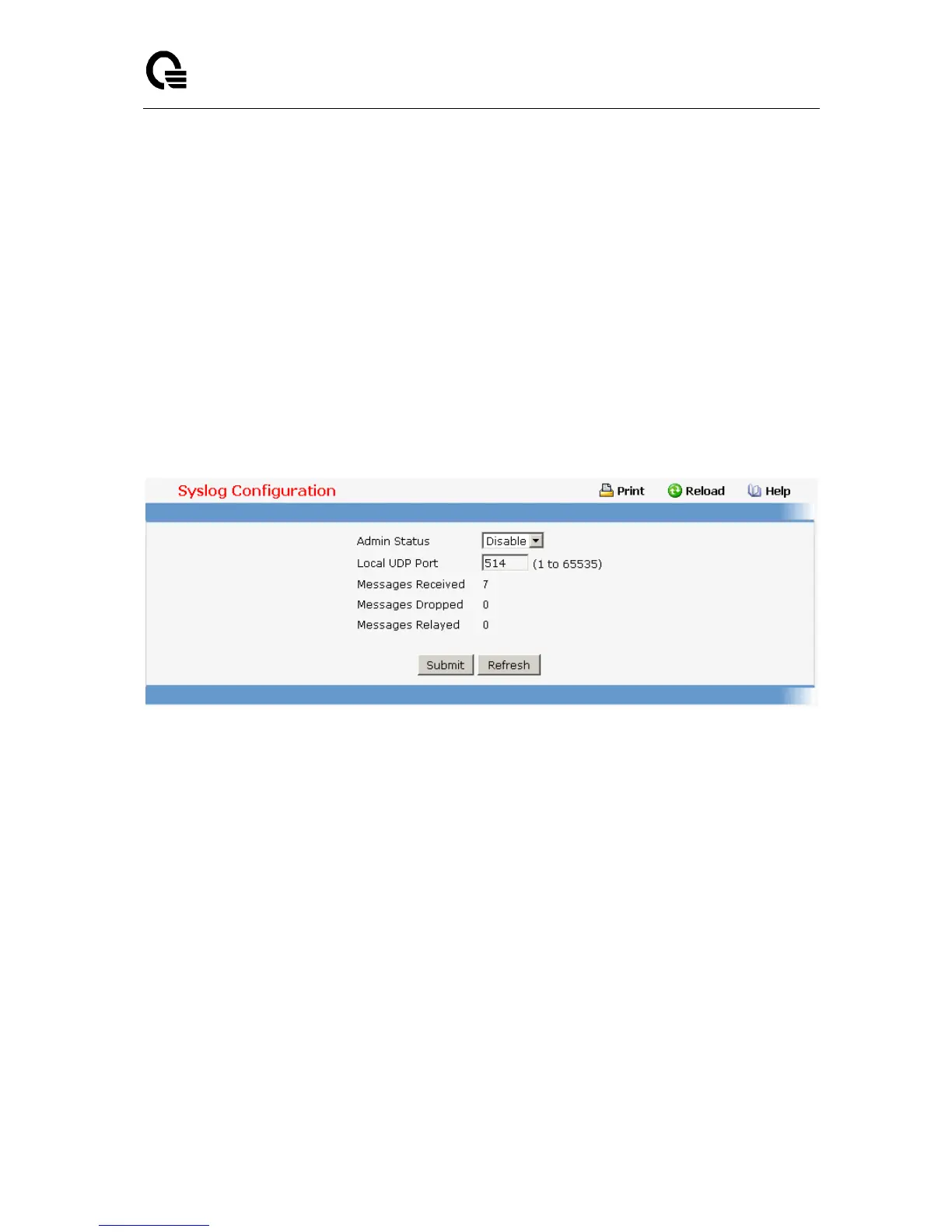

Messages Received - The number of messages received by the log process. This
includes messages that are dropped or ignored.
Messages Dropped - The number of messages that could not be processed due to error
or lack of resources.
Messages Relayed - The number of messages forwarded by the syslog function to a
syslog host. Messages forwarded to multiple hosts are counted once for each host.
Command Buttons
Submit - Update the switch with the values you entered.
Refresh - Refetch the database and display it again starting with the first entry in the
table.
11.2.1.6 Managing Switch Interface
11.2.1.6.1. Configuring Switch Interface Page
Selection Criteria
Slot/Port - Selects the interface for which data is to be displayed or configured.
Configurable Data
STP Mode - The Select the Spanning Tree Protocol Administrative Mode for the port or
LAG. The possible values are:
Enable - select this to enable the Spanning Tree Protocol for this port.
Disable - select this to disable the Spanning Tree Protocol for this port.
Admin Mode - Use the pulldown menu to select the Port control administration state. You
must select enable if you want the port to participate in the network. The factory default is
enabled.
