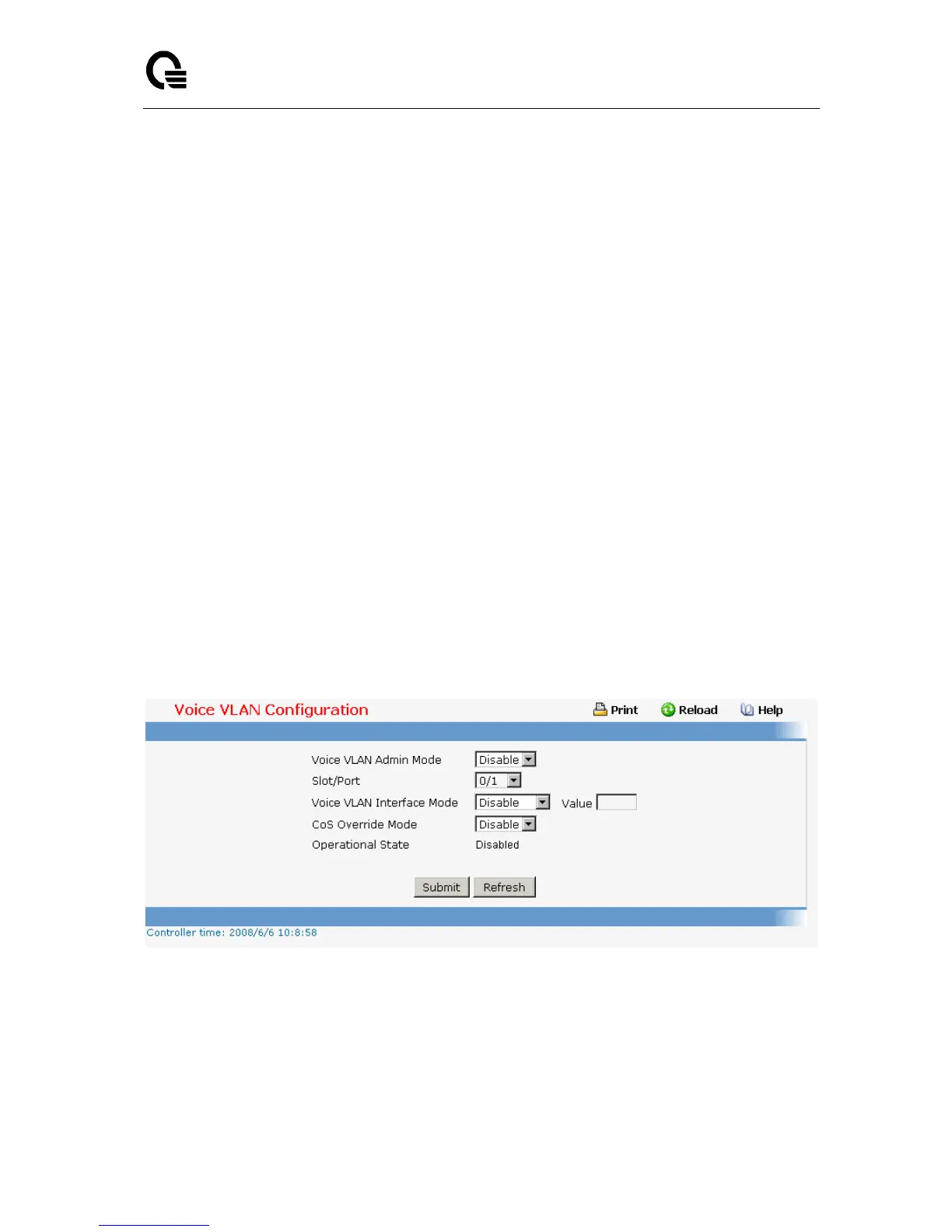

11.2.2.9.1. Voice VLAN Configuration Page
Use this menu to configure the parameters for Voice VLAN Configuration. Note that only a user
with Read/Write access privileges may change the data on this screen.
Configurable Data
Voice VLAN Admin Mode - Select the administrative mode for Voice VLAN for the switch
from the pulldown menu. The default is disable.
Unit/Slot/Port - Select the physical interface for which you want to configure data.
Voice VLAN Interface Mode - Select the Voice VLAN mode for selected interface.
Disable - Default value
None - Allow the IP phone to use its own configuration to send untagged voice traffic
VLAN ID - Enter the Voice Vlan Id
dot1p - Configure Voice Vlan 802.1p priority tagging for voice traffic.
Untagged - Configure the phone to send untagged voice traffic.
CoS Override Mode - Select the Cos Override mode for selected interface. The default is
disable.
Non-Configurable Data
Operational State - This is the operational status of the voice vlan on the given interface.
Command Buttons
Submit - Update the switch with the values you entered. If you want the switch to retain
the new values across a power cycle you must perform a save. You will only see this
button if you have Read/Write access privileges.
Refresh - Reload the contents of the configuration page.
