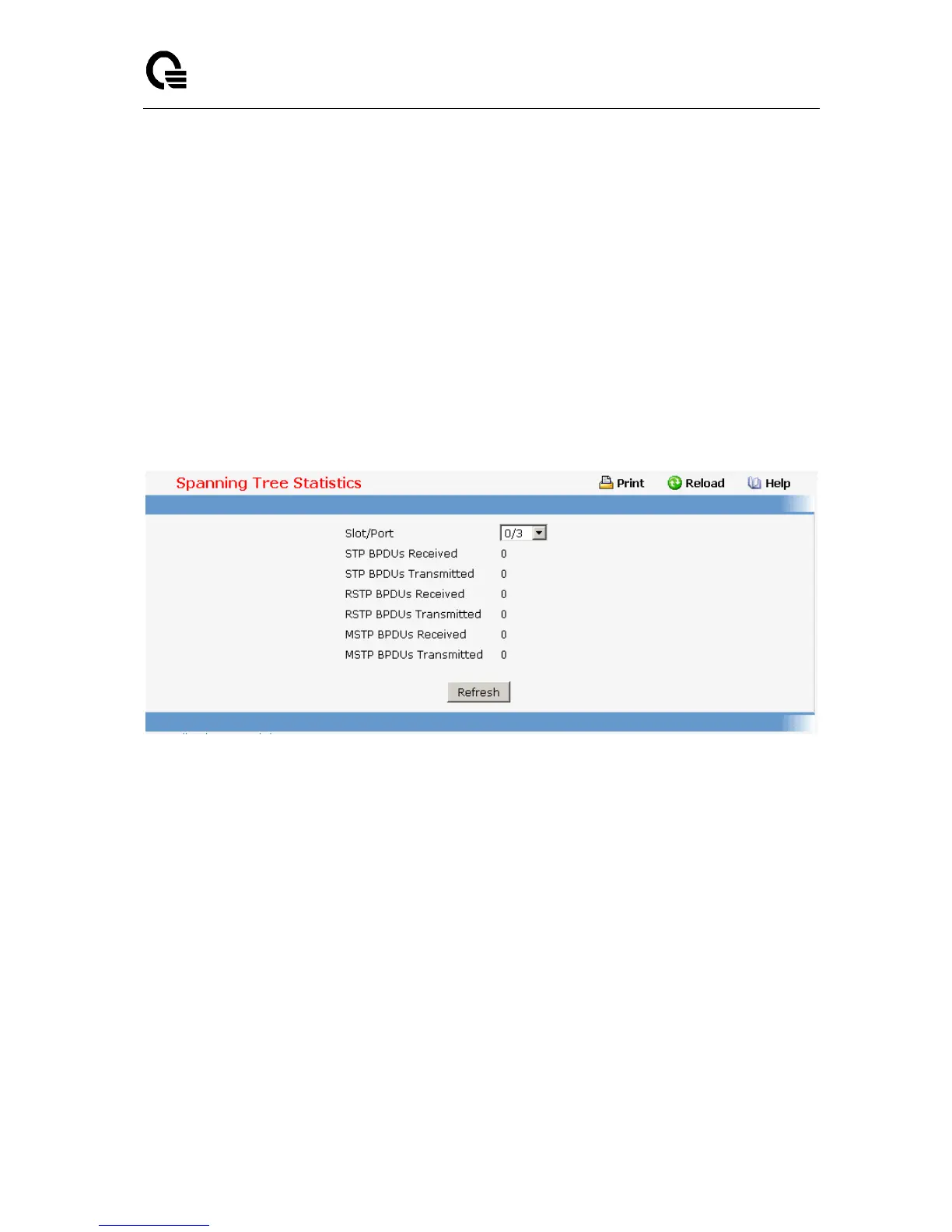

11.2.2.17.6. Viewing Spanning Tree Statistics Page
Selection Criteria
Slot/Port - Selects one of the physical or LAG interfaces of the switch.
Non-Configurable Data
STP BPDUs Received - Number of STP BPDUs received at the selected port.
STP BPDUs Transmitted - Number of STP BPDUs transmitted from the selected port.
RSTP BPDUs Received - Number of RSTP BPDUs received at the selected port.
RSTP BPDUs Transmitted - Number of RSTP BPDUs transmitted from the selected port.
MSTP BPDUs Received - Number of MSTP BPDUs received at the selected port.
MSTP BPDUs Transmitted - Number of MSTP BPDUs transmitted from the selected port.
Command Buttons
Refresh - Refreshes the screen with most recent data.
11.2.2.18 Defining 802.1p priority
11.2.2.18.1. Defining 802.1p Priority Mapping Page
Selection Criteria
Slot/Port - Select the physical interface for which you want to display or configure data.
Select 'All' to set the parameters for all ports to the same values.
Configurable Data
Traffic Class - Specify which internal traffic class to map the corresponding 802.1p
priority.
Non-Configurable Data
802.1p Priority - Displays the 802.1p priority to be mapped.
Command Buttons
