Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 837/970

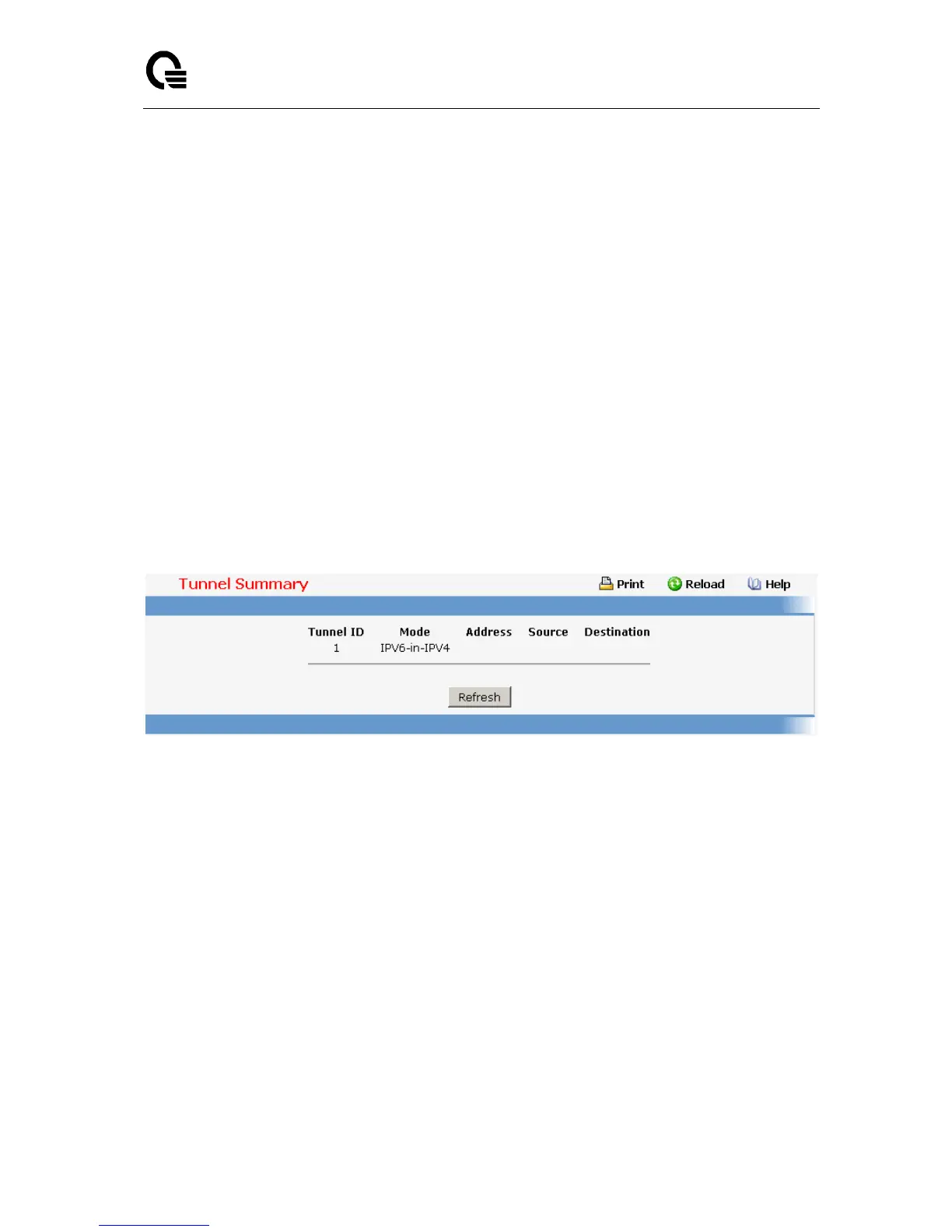

11.2.3.11.2. Viewing Tunnels Summary Page
This page displays a summary of the configured tunnels.
Non-Configurable Data
Tunnel ID - The Tunnel ID.
Mode - The corresponding mode of the Tunnel.
Address - The IPv6 Address(es) of the Tunnel.
Source - The corresponding Tunnel Source Address. In the case where an interface has
been configured both the interface and the address are displayed. If the source interface
has no address configured the text 'unconfigured' is displayed in place of the address.
Destination - The corresponding Tunnel Destination Address.
Command Buttons
Refresh - Refresh the page with the latest Tunnel entries.
11.2.3.12 Managing Loopbacks
11.2.3.12.1. Configuring Loopbacks Configuration Page
Loopback interfaces can be created, configured and removed on this page.
Configurable Data
Loopback - Select list of currently configured loopback interfaces. Create is also a valid
choice if the maximum number of loopback interfaces has not been created.
Loopback ID - When 'Create' is chosen from the Loopback selector this list of available
loopback ID's becomes visible.
Protocol - Select IPv4 or IPv6 to configure the corresponding attributes on the loopback
interface.
