Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 836/970

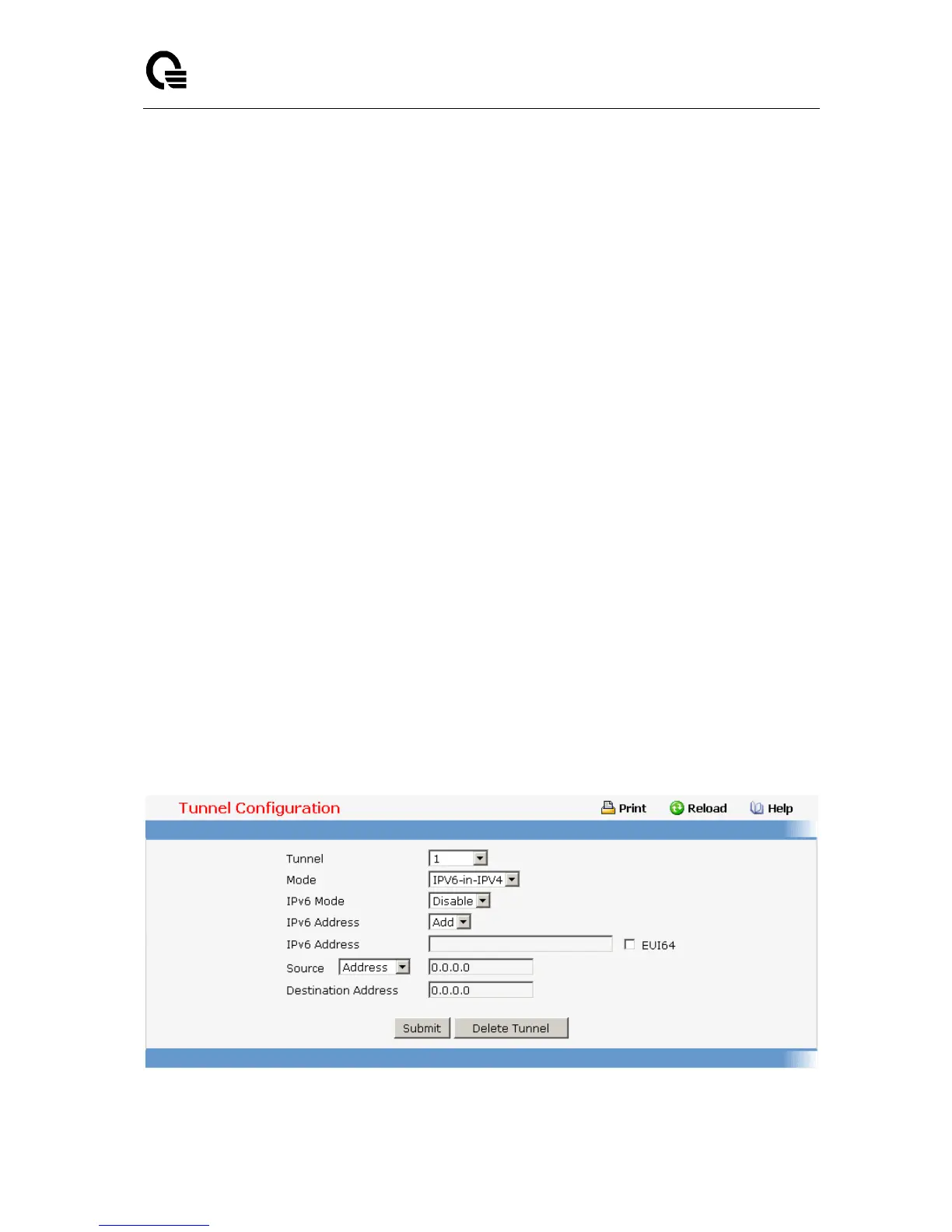

Tunnel - Select list of currently configured tunnel interfaces. Create is also a valid choice if
the maximum number of tunnel interfaces has not been created.
Tunnel ID - When 'Create' is chosen from the tunnel selector this list of available tunnel
ID's becomes visible.
Mode - Selector for the Tunnel mode. IPV6-in-IPV4 is the only supported mode.
IPv6 Mode - Enable IPv6 on this interface using the IPv6 address. This option is only
configurable prior to specifying an explicit IPv6 address.
IPv6 Address - Select list of configured IPv6 addresses for the selected Loopback
interface. Add is also a valid choice if the maximum number of addresses has not been
configured.
IPv6 Address - When 'Add' is chosen from the IPv6 Address selector this IPv6 address
input field becomes visible. Address must be entered in the format prefix/length.
The user also has the option to specify the 64-bit extended unique identifier (EUI-64).
Source - Select the desired source, Address or Interface. If Address is selected the the
source address for this tunnel must be entered in dotted decimal notation. If Interface is
selected the source interface for this tunnel must be selected. The address associated
with the selected interface will be used as the source address.
Destination Address - The destination address for this tunnel in dotted decimal notation.
Command Buttons
Submit - Update the system with the values on this screen.
Delete Tunnel - Remove the selected interface.
Delete Selected Address - Remove the selected IPv6 Address.
