Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 715/970
device management.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain
the new values across a power cycle, you must perform a save.
Delete - Delete this VLAN. You are not allowed to delete the default VLAN.

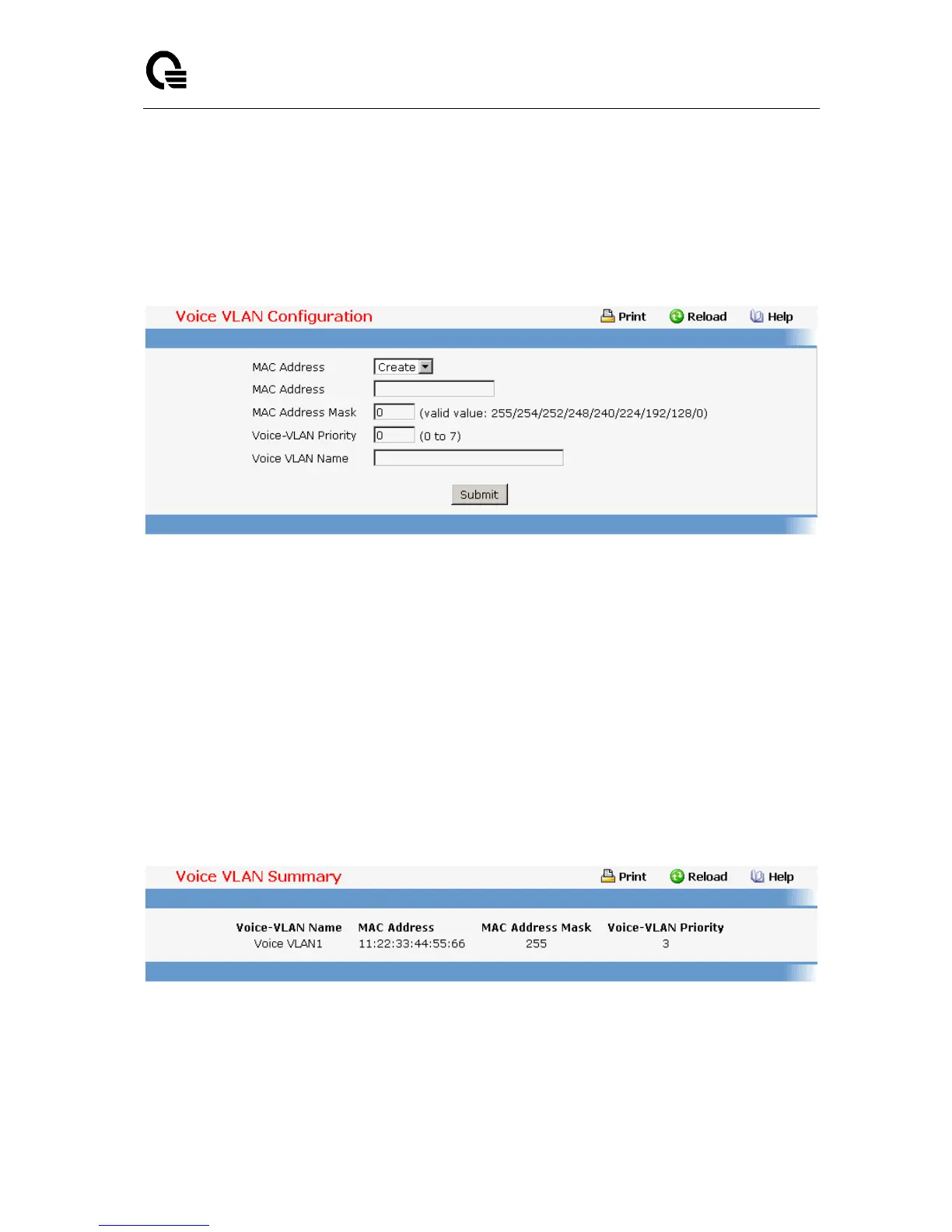

11.2.2.8.3. Viewing Voice VLAN Information Page
This page displays the status of all currently configured Voice VLANs.
Non-Configurable Data
Voice-VLAN Name - The name of the voice device.
MAC Address - The MAC Address for the new Voice VLAN.
MAC Address Mask - The MAC Address Mask for the Voice VLAN. The value is the last
eight digit of the mask code of the MAC address.
Voice-VLAN Priority -
The priority-id is the priority of the voice traffic.
11.2.2.9 Managing Voice VLAN
