Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 930/970
specified interface and direction.

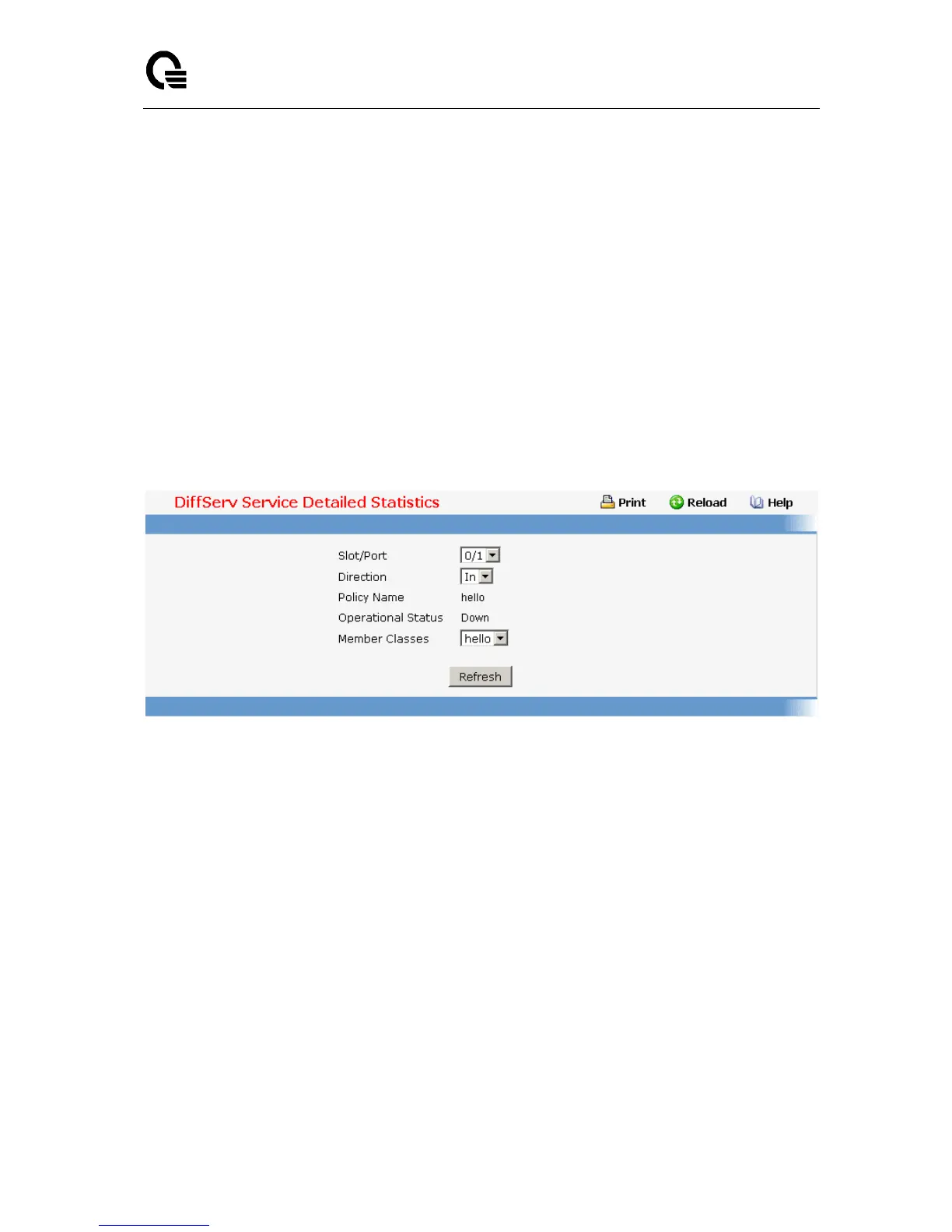

Selection Criteria
Slot/Port - List of all valid slot number and port number combinations in the system that
have a DiffServ policy currently attached (in either direction), from which one can be
chosen.
Direction - List of the traffic direction of interface. Only shows the direction(s) for which a
DiffServ policy is currently attached.
Member Classes - List of all DiffServ classes currently defined as members of the
selected Policy Name. Choose one member class name at a time to display its statistics. If
no class is associated with the chosen policy then nothing will be populated in the list.
Non-Configurable Data
Policy Name - Name of the policy currently attached to the specified interface and
direction.
Operational Status - Operational status of the policy currently attached to the specified
interface and direction. The value is either Up or Down.
11.2.6.3 Configuring Diffserv Wizard Page
Operation
The DiffServ Wizard enables DiffServ on the switch by creating a traffic class, adding the traffic
class to a policy, and then adding the policy to the ports selected on DiffServ Wizard page. The
DiffServ Wizard will:
Create a DiffServ Class and define match criteria used as a filter to determine if incoming
traffic meets the requirements to be a member of the class.
Set the DiffServ Class match criteria based on Traffic Type selection as below:
VOIP - sets match criteria to UDP protocol.
HTTP - sets match criteria to HTTP destination port.
FTP - sets match criteria to FTP destination port.
Telnet - sets match criteria to Telnet destination port.
