Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 686/970

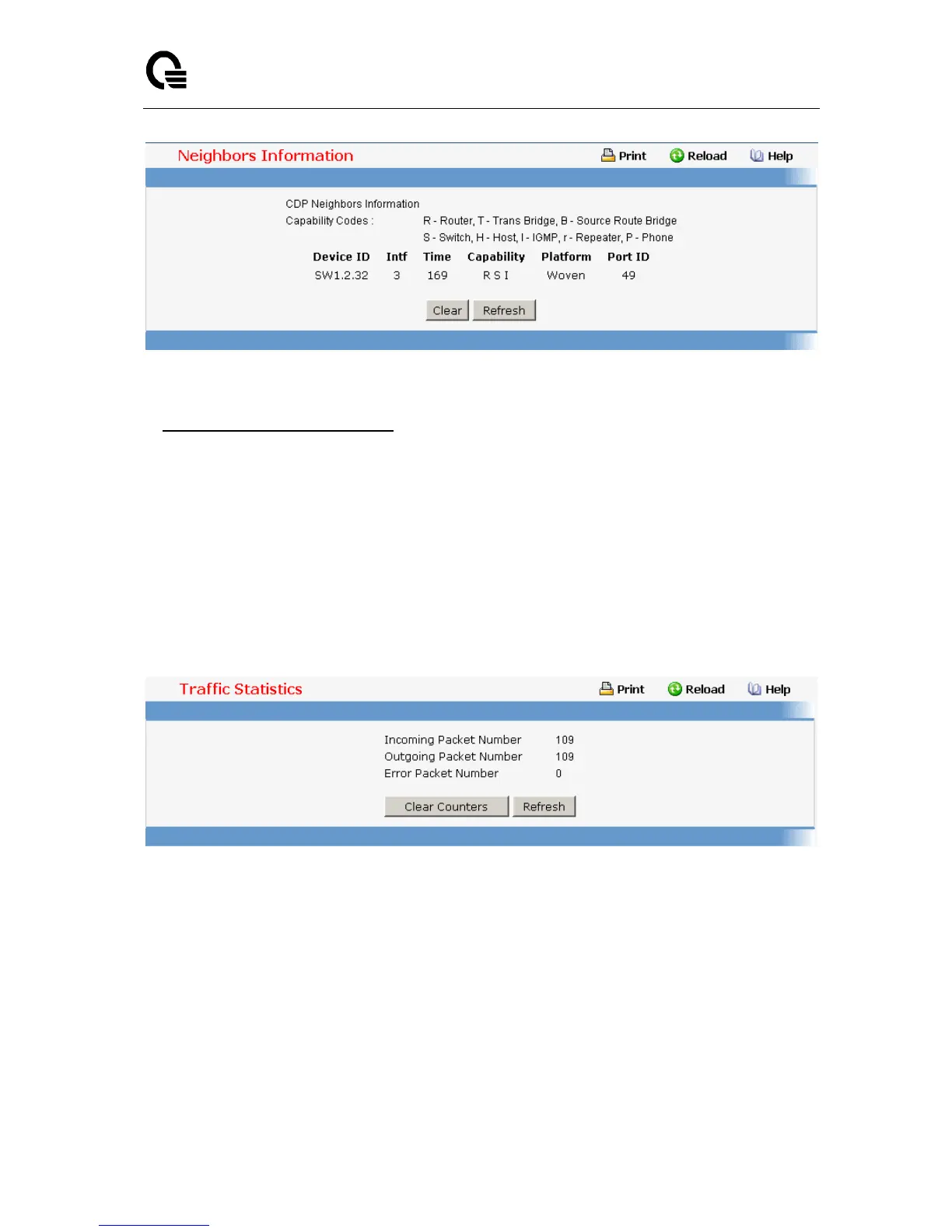

Viewing Traffic Statistics Page
Use this menu to display CDP traffic statistics.
Non-Configurable Data
Incoming Packet Number - Received legal CDP packets number from neighbors.
Outgoing Packet Number - Transmitted CDP packets number from this device.
Error Packet Number - Received illegal CDP packets number from neighbors.
Command Buttons
Clear Counters - Clear all the counters, resetting all switch summary and detailed
statistics to default values. The discarded packets count cannot be cleared.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
11.2.1.10 Defining Trap Manager
11.2.1.10.1. Configuring Trap Flags Page
Use this menu to specify which traps you want to enable. When the condition identified by an
active trap is encountered by the switch a trap message will be sent to any enabled SNMP Trap
Receivers, and a message will be written to the trap log.
Configurable Data
Authentication - Enable or disable activation of authentication failure traps by selecting
