UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 788/970

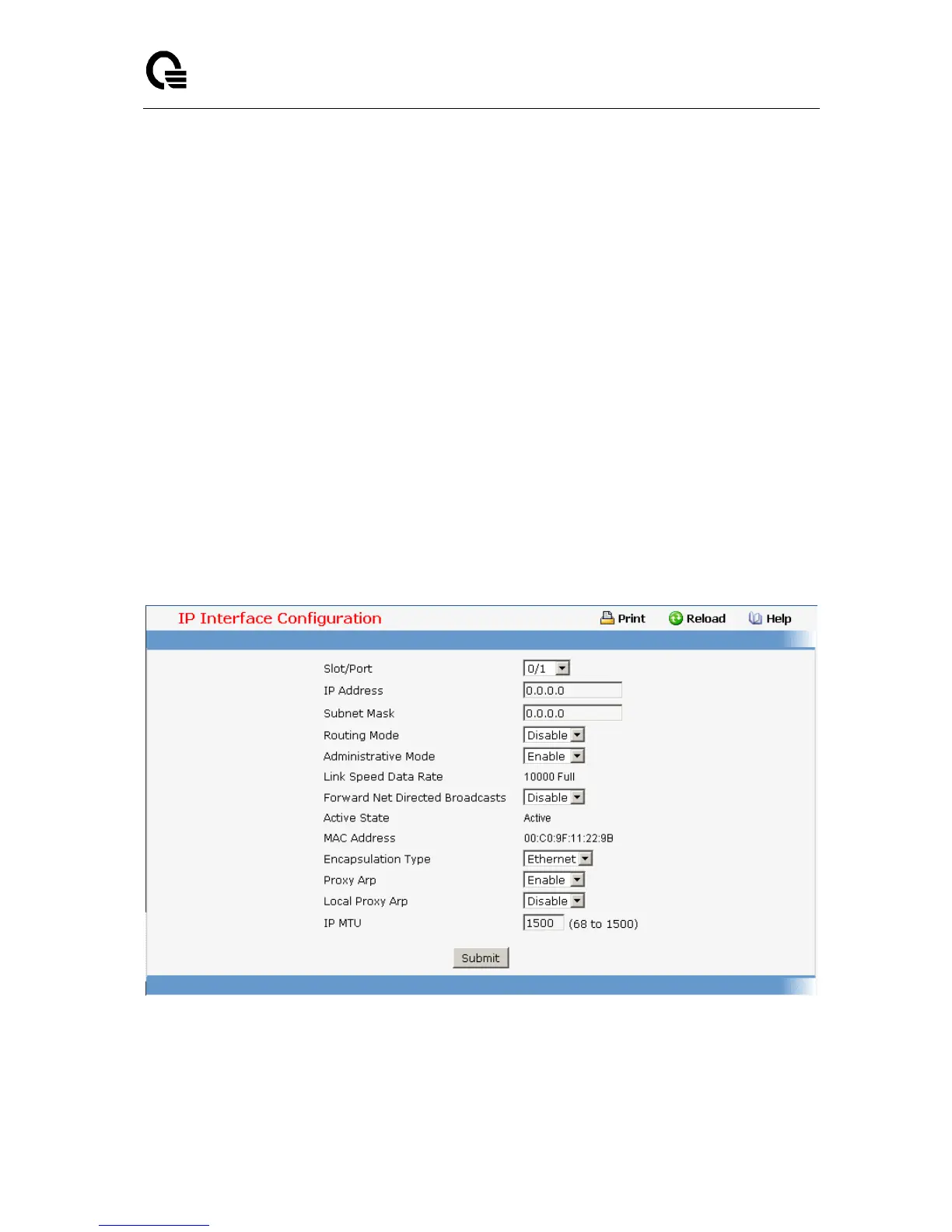

Local Proxy Arp - Select to disable or enable Local Proxy ARP for the specified interface
from the pulldown menu.
IP MTU - Specifies the maximum transmission unit (MTU) size of IP packets sent on an
interface. Valid range is (68 to 1500). Default value is 1500.
Non-Configurable Data
Active State - The state of the specified interface is either Active or Inactive. An interface
is considered active if it the link is up and it is in forwarding state.
MAC Address - The burned-in physical address of the specified interface. The format is
six two-digit hexadecimal numbers separated by colons, for example 00:06:29:32:81:40.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain
the new values across a power cycle, you must perform a save.
Delete IP Address - Delete the IP Address from the interface. Note that the address can
not be deleted if there are secondary addresses configured.
Secondary IP Address - Proceed to the Secondary IP Address configuration screen.
11.2.3.3 Managing OSPF
