Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 708/970

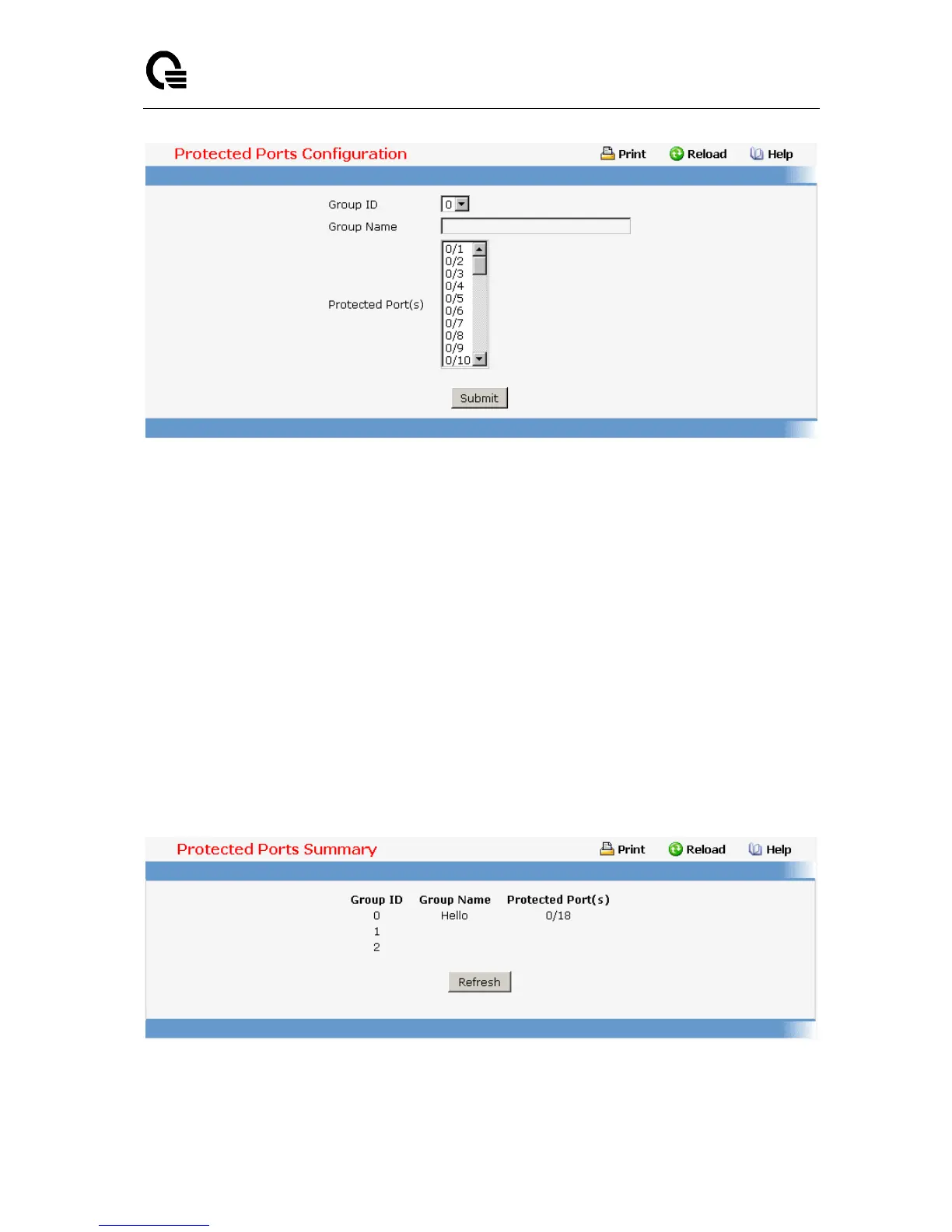

11.2.2.4.2. Protected Ports Summary Page
Non-Configurable Data
Group ID - The protected ports can be combined into a logical group. Traffic can flow
between protected ports belonging to different groups, but not within the same group. The
valid range of the Group ID is (0 to 2) .
Group Name - Displays the alphanumeric string associated with a Group ID.
Protected Ports - The display list consists of all the protected ports. It is to be noted that
no traffic forwarding is possible between two protected ports of a same group, but traffic
can flow between protected ports of different groups.
Command Buttons
Refresh - Refresh the data on the screen to obtain data on current state of the ports.
