Submit - Update the switch with the values on this screen. If you want the switch to retain
the new values across a power cycle, you must perform a save.
Delete - Remove the Protocol Based VLAN group identified by the value in the Group ID
field. If you want the switch to retain the deletion across a power cycle, you must perform a
save.

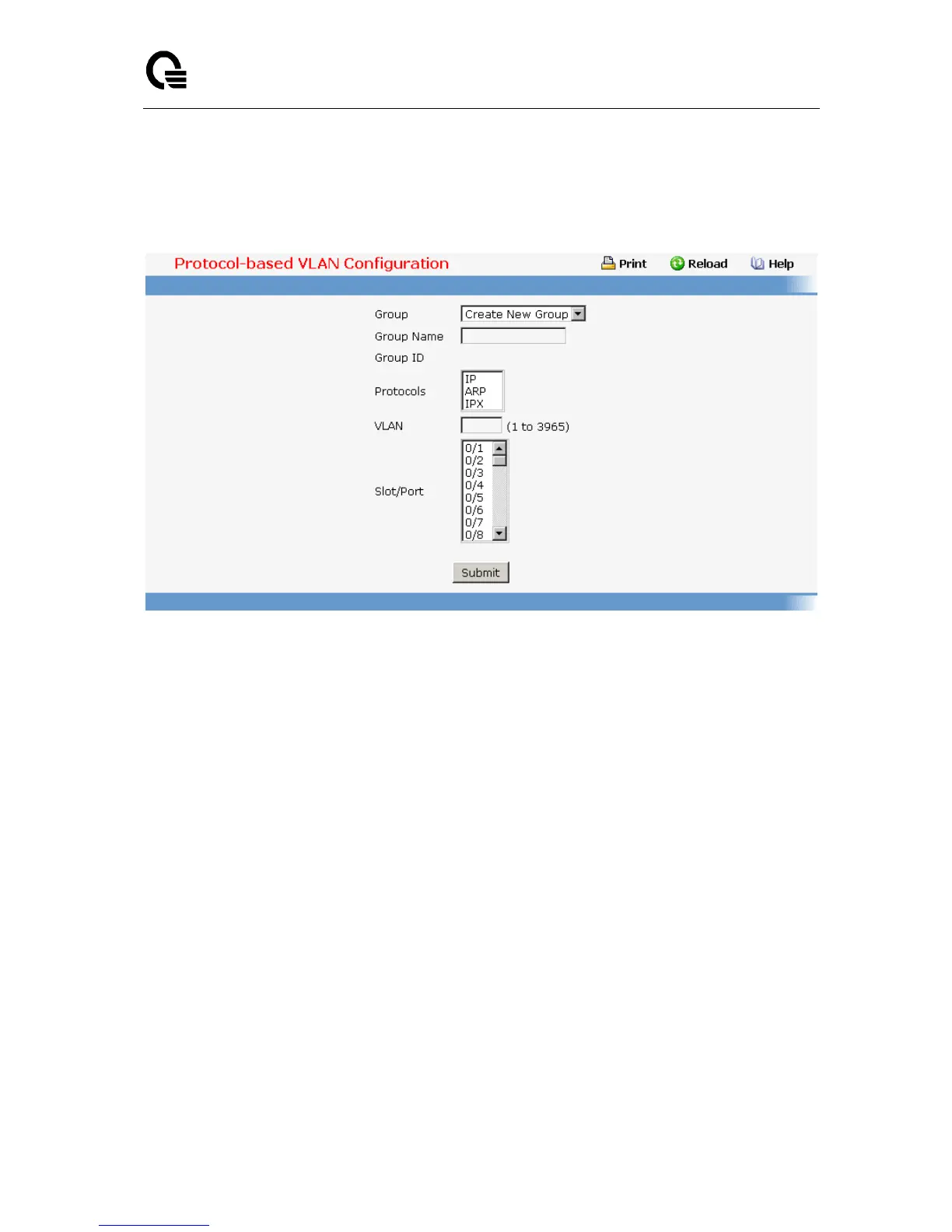

11.2.2.5.2. Viewing Protocol-based VLAN Information Page
Non-Configurable Data
Group Name - The name associated with the group. Group names can be up to 16
characters. The maximum number of groups allowed is 128.
Group ID - The number used to identify the group. It was automatically assigned when
you created the group.
Protocol(s) - The protocol(s) that belongs to the group. There are three configurable
protocols: IP, IPX, and ARP.
IP - IP is a network layer protocol that provides a connectionless service for the
delivery of data.
ARP - Address Resolution Protocol (ARP) is a low-level protocol that dynamically
maps network layer addresses to physical medium access control (MAC) addresses.
IPX - The Internetwork Packet Exchange (IPX) is a connectionless datagram
Network-layer protocol that forwards data over a network.
VLAN - The VLAN ID associated with the group.
Slot/Port(s) - The interfaces associated with the group.
Command Buttons
Refresh - Update the screen with the latest information.
