UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 763/970

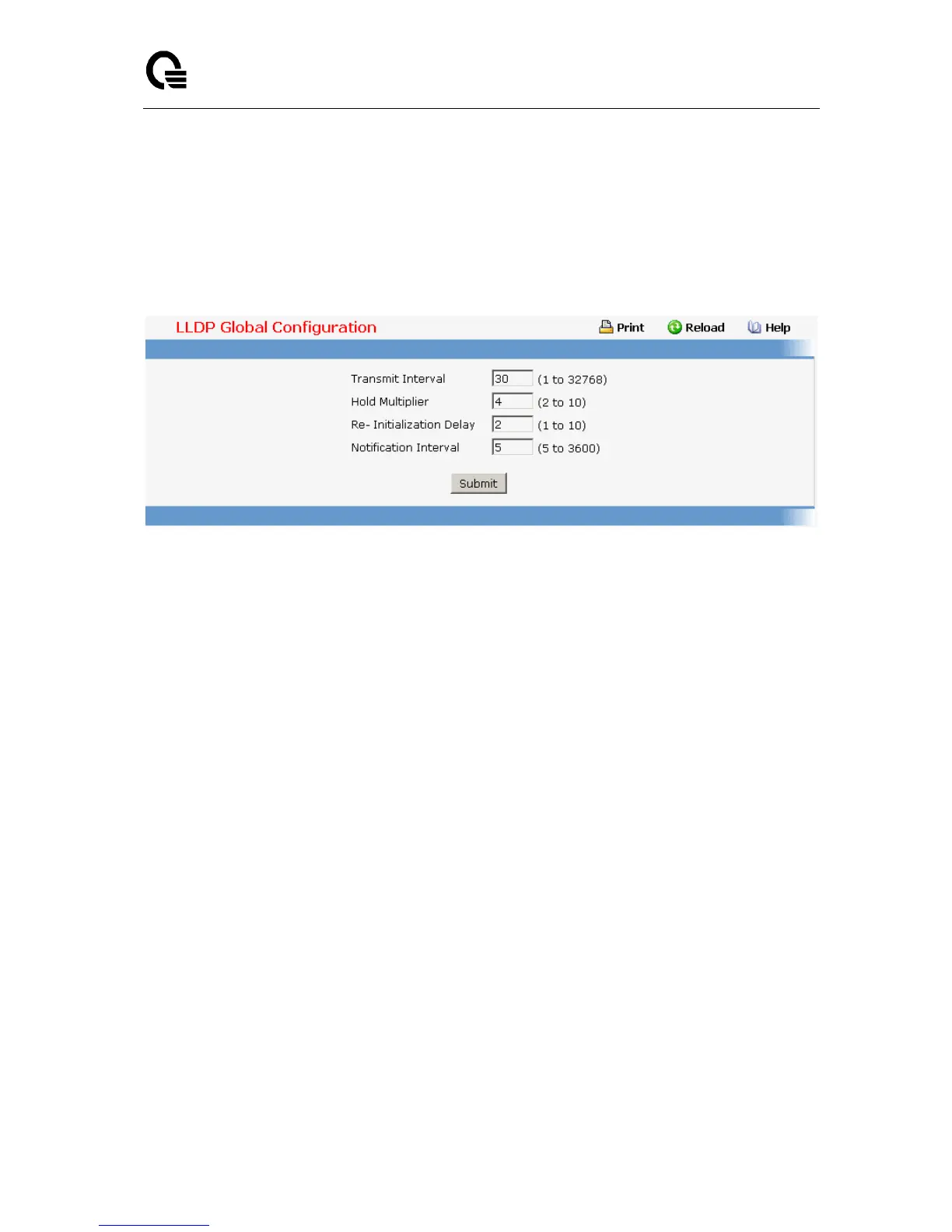

Notification Interval - Specifies the interval in seconds for transmission of notifications.
The range is from (5 to 3600) . Default value is 5 seconds.
Command Buttons
Submit - Send the updated screen to the switch and cause the changes to take effect on
the switch but these changes will not be retained across a power cycle unless a save is
performed.
11.2.2.20.2. Configuring LLDP Interface Configuration Page
Selection Criteria
Interface - Specifies the list of ports on which LLDP - 802.1AB can be configured.
Configurable Data
Transmit - Specifies the LLDP - 802.1AB transmit mode for the selected interface.
Receive - Specifies the LLDP - 802.1AB receive mode for the selected interface.
Notify - Specifies the LLDP - 802.1AB notification mode for the selected interface.
Transmit Management Information - Specifies whether management address is
transmitted in LLDP frames for the selected interface.
Optional TLV(s)
o
System Name - To include system name TLV in LLDP frames.
o
System Description - To include system description TLV in LLDP frames.
o
System Capabilities - To include system capability TLV in LLDP frames.
o
Port Description - To include port description TLV in LLDP frames.
Command Buttons
