Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 810/970

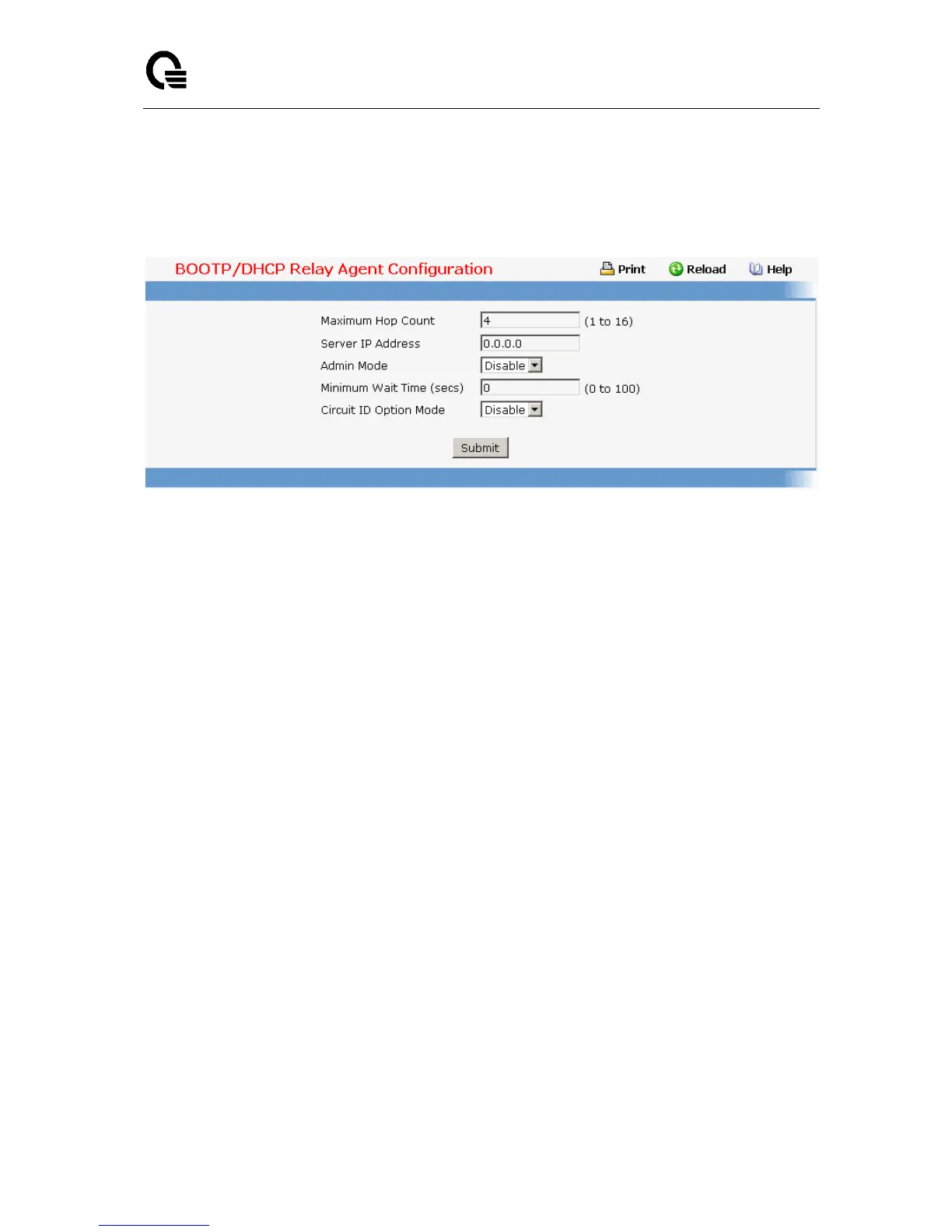

Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
11.2.3.4.2. Viewing BOOTP/DHCP Relay Agent Status
Non-Configurable Data
Maximum Hop Count - The maximum number of Hops a client request can go without
being discarded.
Server IP Address - IP address of the BOOTP/DHCP server or the IP address of the
next BOOTP/DHCP Relay Agent.
Admin Mode - Administrative mode of the relay. When you select 'enable' BOOTP/DHCP
requests will be forwarded to the IP address you entered in the 'Server IP address' field.
Minimum Wait Time (secs) - The Minimum time in seconds. This value will be compared
to the time stamp in the client's request packets, which should represent the time since
the client was powered up. Packets will only be forwarded when the time stamp exceeds
the minimum wait time.
Circuit ID Option Mode - This is the Relay agent option which can be either enabled or
disabled. When enabled Relay Agent options will be added to requests before they are
forwarded to the server and removed from replies before they are forwarded to clients.
Requests Received - The total number of BOOTP/DHCP requests received from all
clients since the last time the switch was reset.
Requests Relayed - The total number of BOOTP/DHCP requests forwarded to the
server since the last time the switch was reset.
