OSPF Type-2
 RIP
 BGP4
Next Hop Slot/Port - The outgoing router interface to use when forwarding traffic to the
destination.
Next Hop IP Address - The outgoing router IP address to use when forwarding traffic to
the next router (if any) in the path towards the destination. The next router will always be
one of the adjacent neighbors or the IP address of the local interface for a directly
attached network.
Total Number of Routes - The total number of routes in the route table.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.

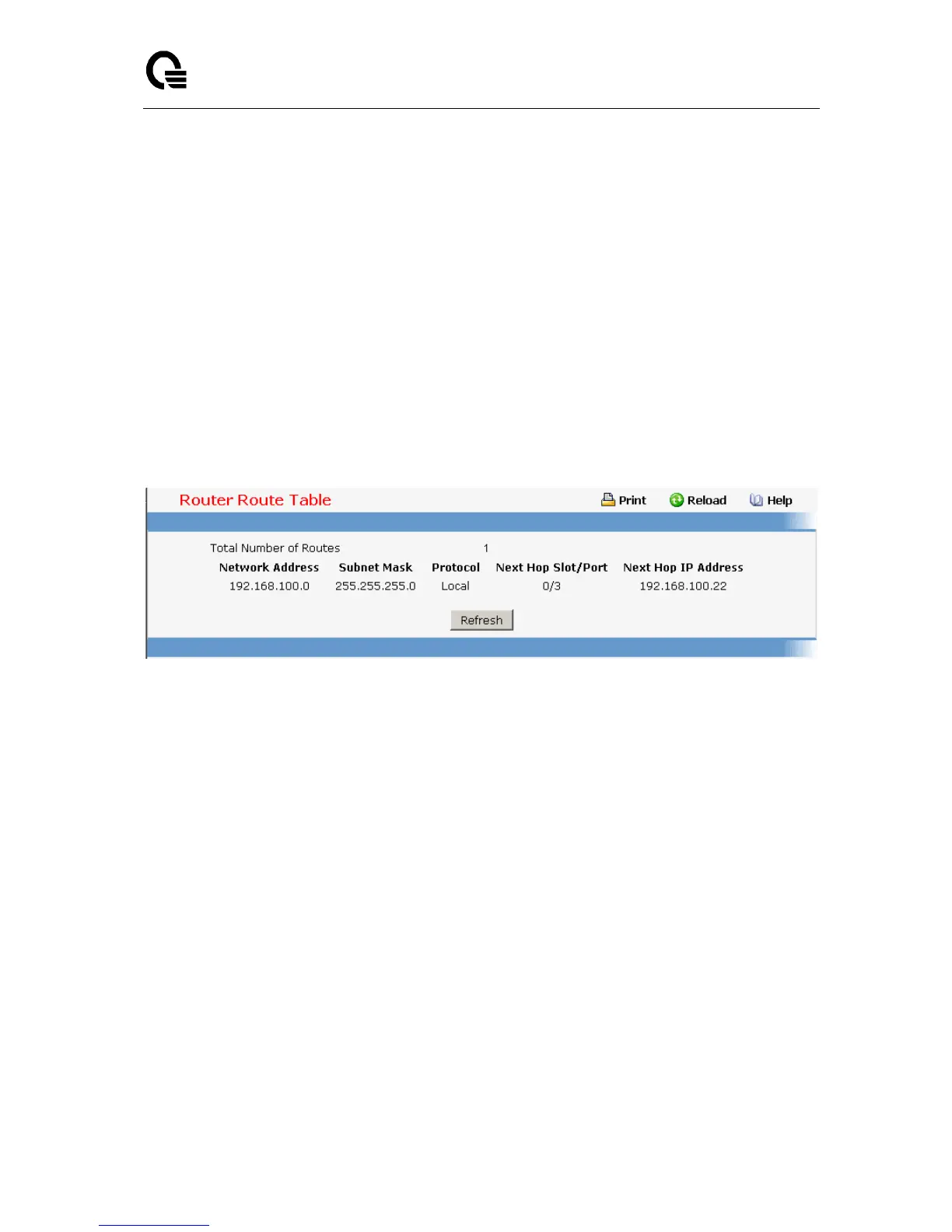

11.2.3.8.2. Viewing Router Best Route Table
Non-Configurable Data
Network Address - The IP route prefix for the destination.
Subnet Mask - Also referred to as the subnet/network mask, this indicates the portion of
the IP interface address that identifies the attached network.
Protocol - This field tells which protocol created the specified route. The possibilities are
one of the following:
 Local
 Static
 Default
 MPLS
 OSPF Intra
 OSPF Inter
 OSPF Type-1
 OSPF Type-2
 RIP
