Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 903/970

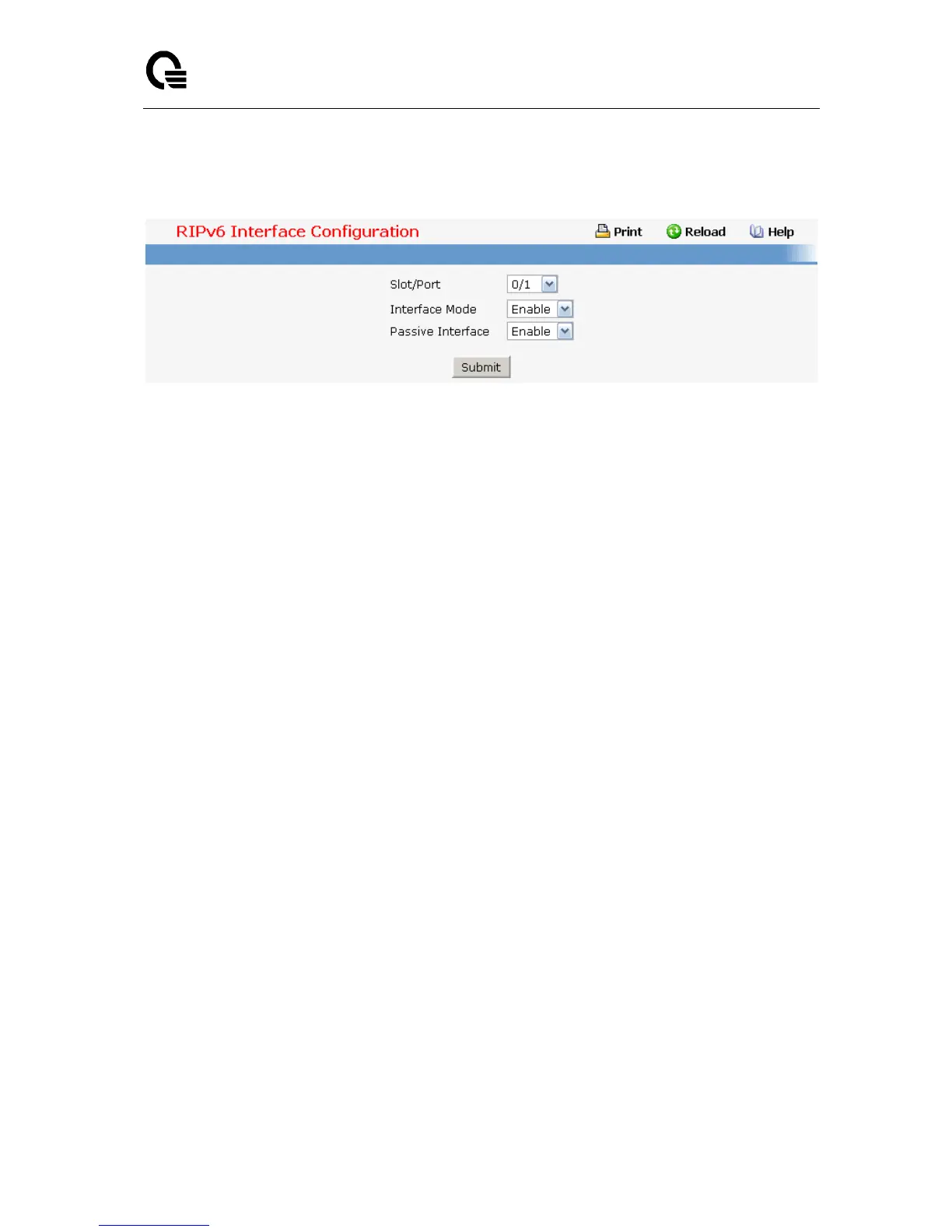

Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
11.2.5.10.3. Configuring RIPv6 Redistribution Configuration Page
This screen can be used to configure the RIPv6 Route Redistribution parameters. The
allowable values for each fields are displayed next to the field. If any invalid values are entered,
an alert message will be displayed with the list of all the valid values.
Configurable Data
Configured Source - This select box is a dynamic selector and would be populated by
only those Source Routes that have already been configured for redistribute by RIPv6.
However, the topmost option in the select box would be "Create", and this allows the user
to configure another, among the Available Source Routes. The valid values are
Create
Static
Connected
OSPF
Available Source - This select box is a dynamic selector and would be populated by only
those Source Routes that have not previously been configured for redistribution by RIPv6.
This select box would appear only if the user selects "Create" option as Configured Source.
The valid values are
Static
Connected
OSPF
Metric - Sets the metric value to be used as the metric of redistributed routes. This field
displays the metric if the source was pre-configured and can be modified. The valid values
are (1 to 15)
