Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 906/970
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.
Delete - Removes the currently selected IP ACL from the switch configuration.

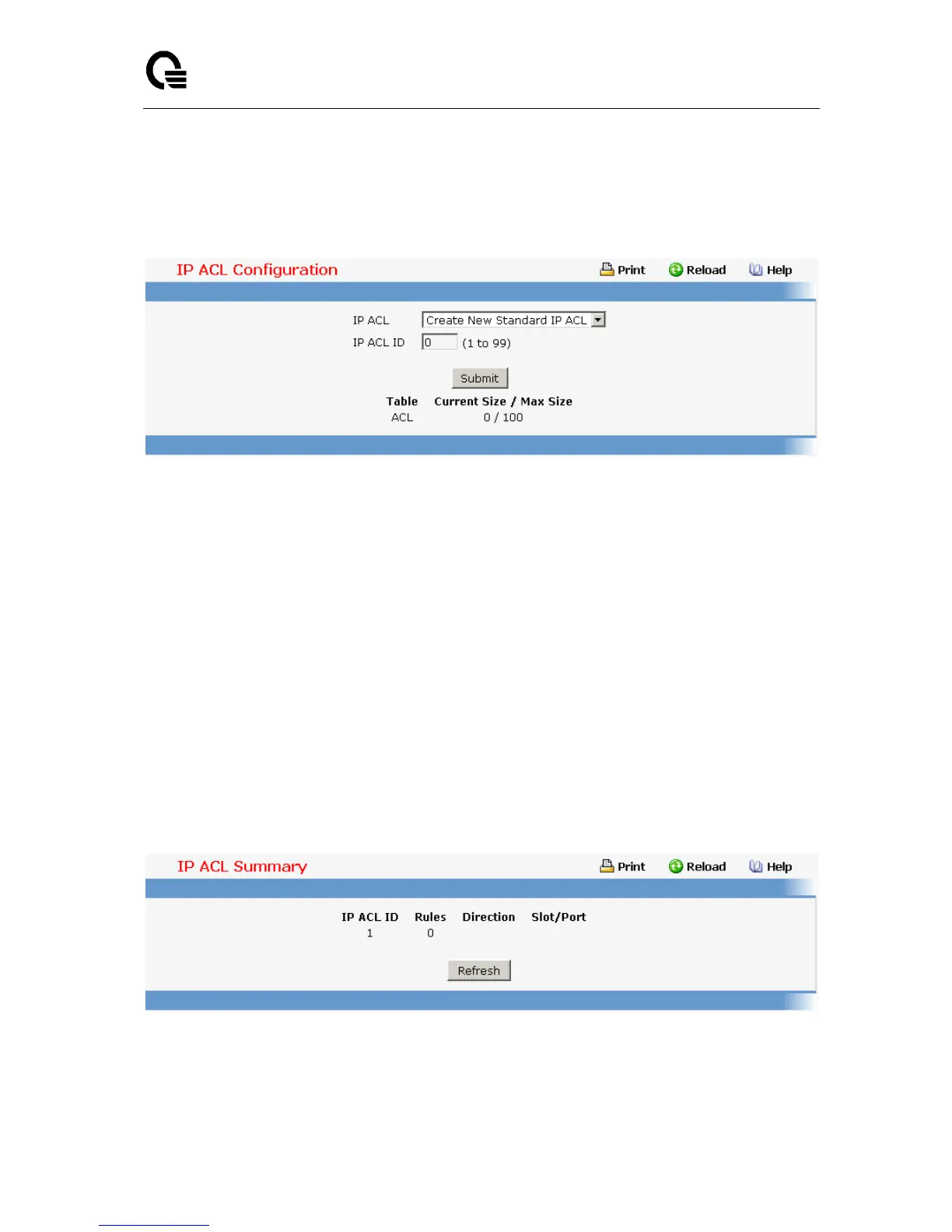

11.2.6.1.2. Viewing IP Access Control List Summary Page
Non-Configurable Data
IP ACL ID - The IP ACL identifier.
Rules - The number of rules currently configured for the IP ACL.
Direction - The direction of packet traffic affected by the IP ACL.
Direction can only be:
Inbound
Slot/Port(s) - The interfaces to which the IP ACL applies.
Command Buttons
Refresh - Refresh the data on the screen to the latest state.
