neighbors (leaf router).
Command Buttons

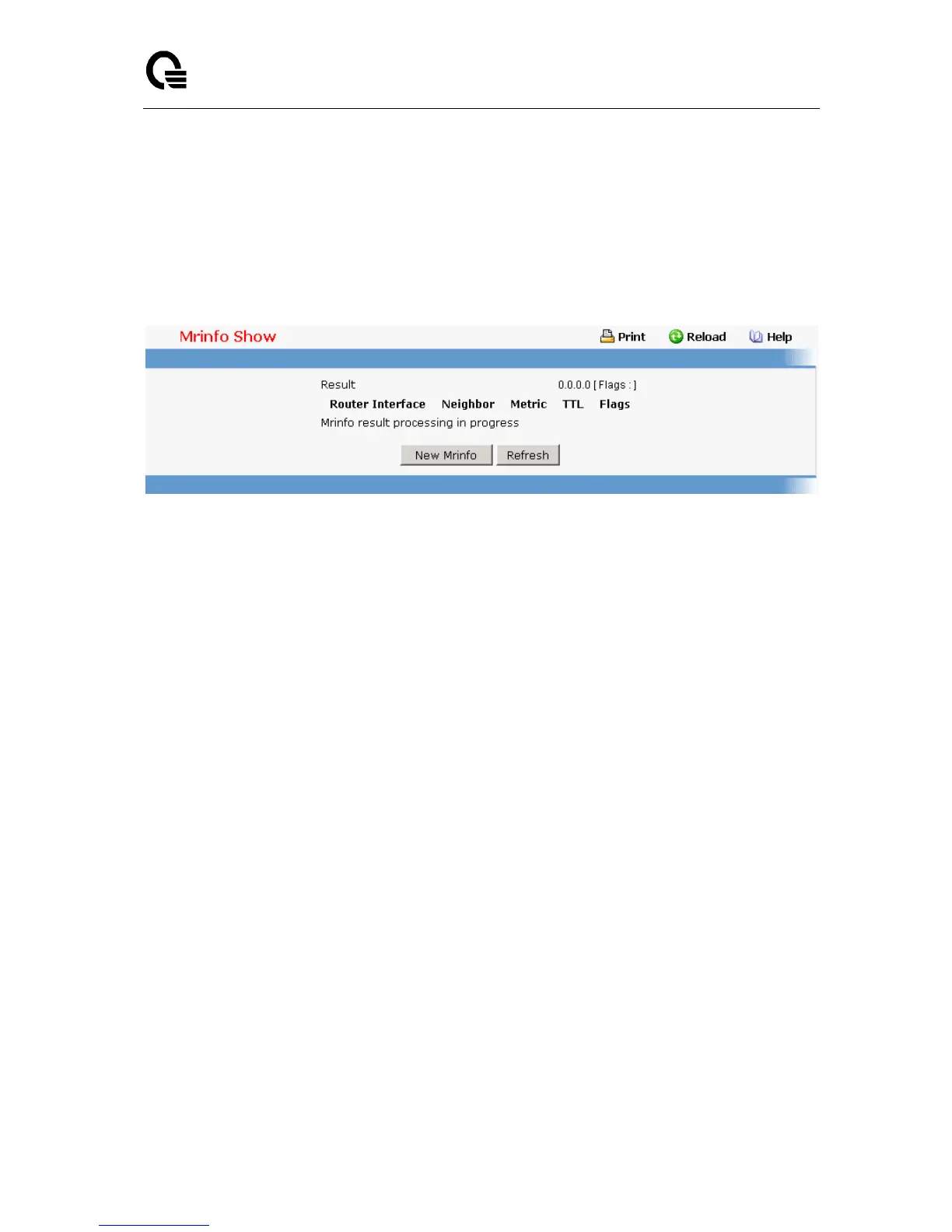

New Mrinfo - Redirect the web browser to the Mrinfo Run screen so that you can initiate
another mrinfo command.
Refresh - Refresh the content of the screen with the latest data available on the router.
Typically, it takes around 20 seconds to process the results after you have initiated the
mrinfo command. The contents of the screen have to be refreshed to display the latest
results.
11.2.7.4.3. Configuring Mstat Run Page
Use this screen to initiate an mstat command on the router. You can use the mstat command to
see the hop-by-hop path taken by packets from a given multicast source to the destination. It
also gives you information regarding packet rate and packet loss on the path.
Configurable Data
Source IP - Enter the IP address of the multicast-capable source. This is the unicast
address of the beginning of the path to be traced.
Receiver IP - Enter the IP address of the host to which the mstat response will be sent by
the last hop router. If a value is not entered, the IP address of the router interface through
which the mstat will be sent is used.
Group IP - Enter the multicast address of the group to be traced. If you leave this field
blank, the multicast address 224.2.0.1 will be used. Valid addresses are 224.0.0.0 through
239.255.255.255.
Command Buttons
Submit - Initiate the mstat command on the router. If the mstat command completes
successfully the browser will display the Mstat Show screen. If the mstat command fails,
you will see the Mstat Run screen again.
