router will process and forward mtrace requests received from other routers, otherwise
received mtrace requests will be discarded. This field is non-configurable for read-only
users.
Command Buttons
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is
performed.

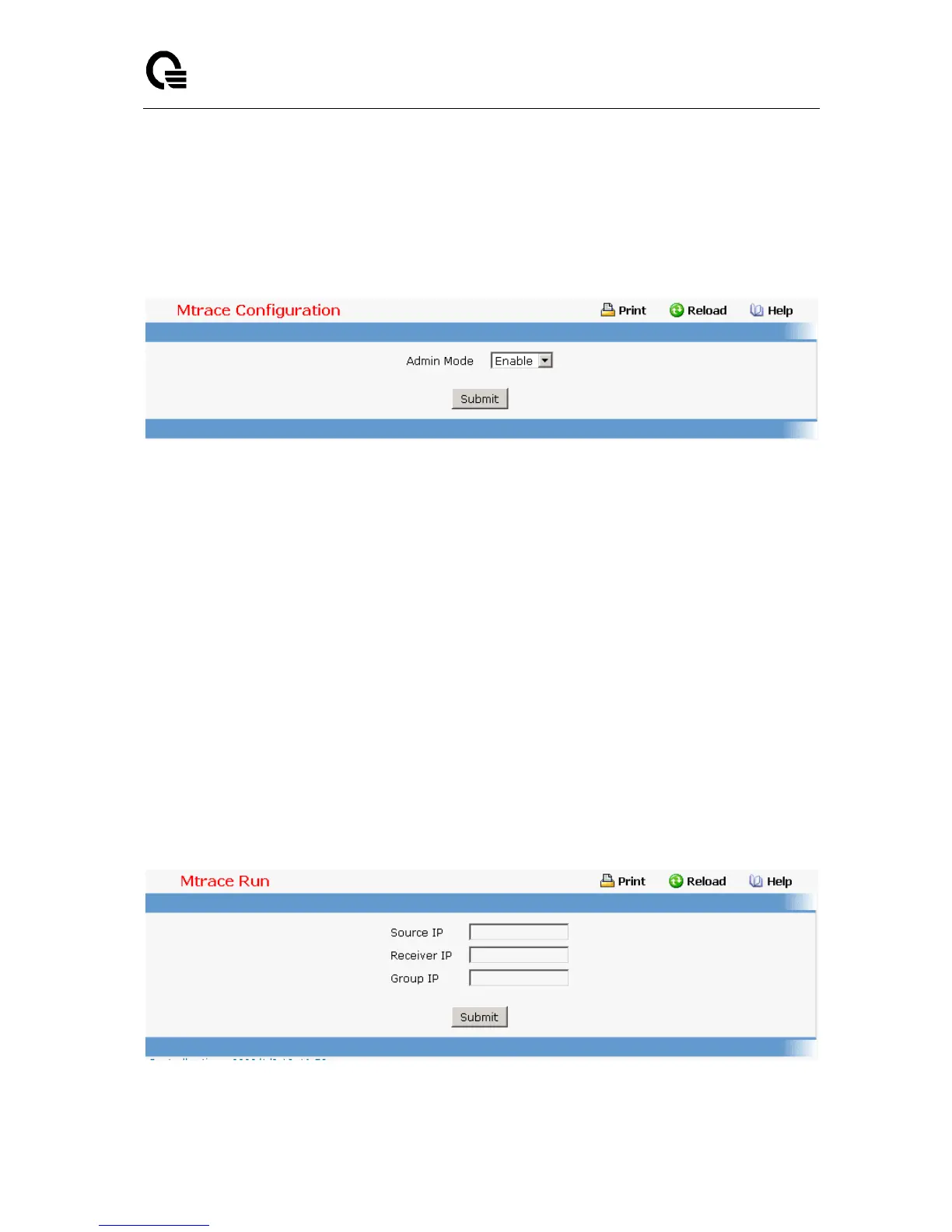

11.2.7.4.6. Configuring Mtrace Run Page
Use this screen to initiate an mtrace command on the router. You can use the mtrace command
trace the path from the source to a destination branch for a multicast distribution tree.
Configurable Data
Source IP - Enter the IP address of a multicast-capable source. This is the unicast
address of the beginning of the path to be traced.
Receiver IP - Enter the IP address of the host to which the mtrace response will be sent
by the last hop router. If you leave this field blank, mtrace will use the IP address of the
router interface through which the mtrace will be sent.
Group IP - Enter the Multicast address of the group to be traced. If you do not enter a valid
address, multicast address 224.2.0.1 will be used. Valid addresses are 224.0.0.0 through
239.255.255.255.
Command Buttons
Submit - Initiate the mtrace command on the router. If the mtrace command completes
successfully the browser will display the Mtrace Show screen. If the mtrace command fails,
you will see the Mtrace Run screen again.
