8400 HighLine | Parameter setting & configuration
Motor control (MCTRL)
Encoder/feedback system

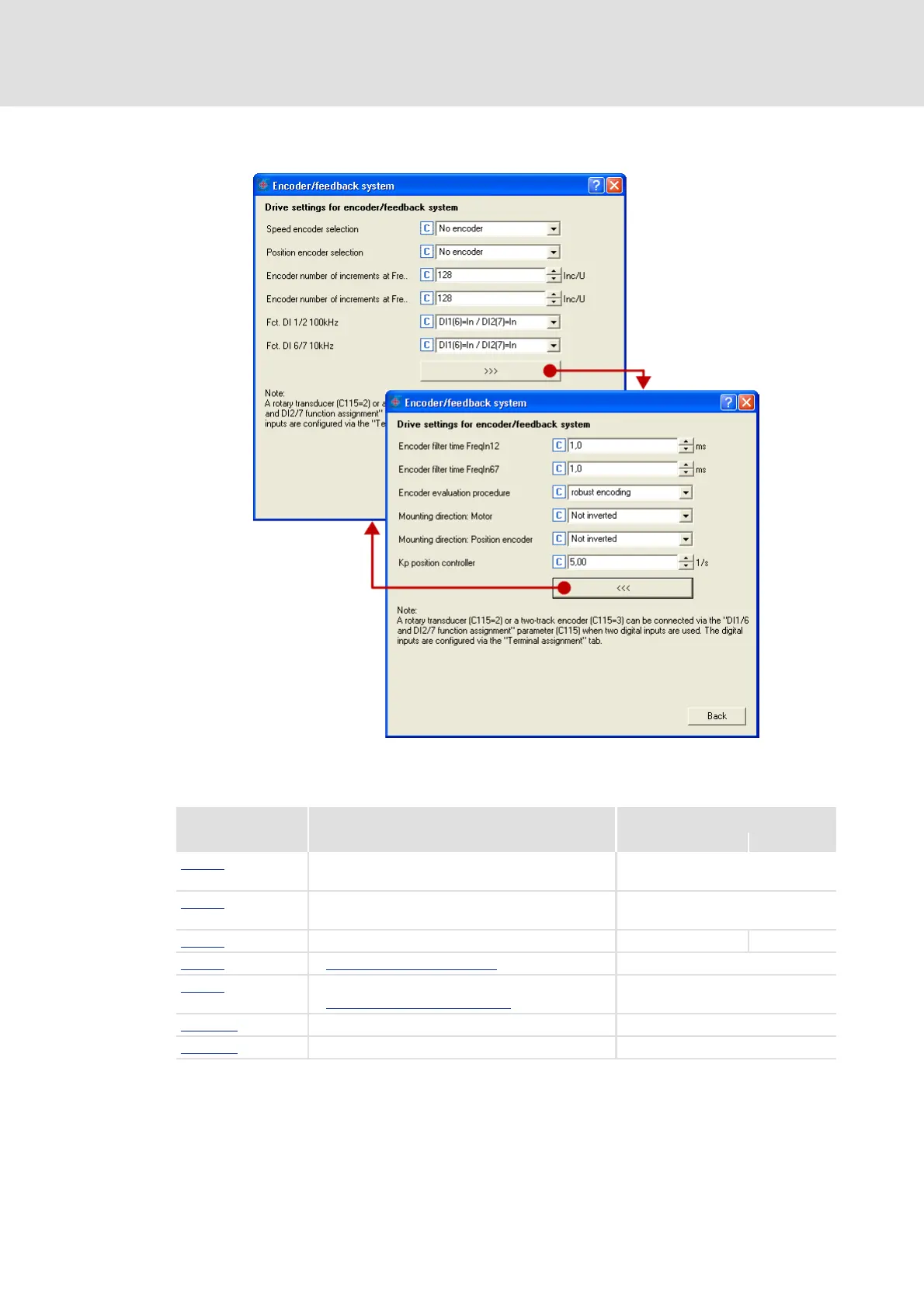

Parameterisation dialog in the »Engineer«
Short overview of the relevant parameters:
Parameter Info Lenze setting
Value Unit
C00495 Speed sensor selection
• Source of feedback signal for speed control.
No sensor
C00490
Position encoder selection
• Source of feedback signal for position control.
No sensor
C00254
Kp position controller 5.00 1/s
C00496
Encoder evaluation procedure ( 186) Combined encoder method
C00586
Resp. to encoder wire breakage
Encoder open-circuit monitoring
( 207)
Fault
C01206/1
Mounting direction: Motor not inverted
C01206/2
Mounting direction: Position encoder not inverted
