Lenze E84AVHC Series - Page 223

Firmware ≤ 05.00 - DMS 4.2 EN - 02/2010 L 223
8400 HighLine | Parameter setting & configuration
I/O terminals
Digital input terminals

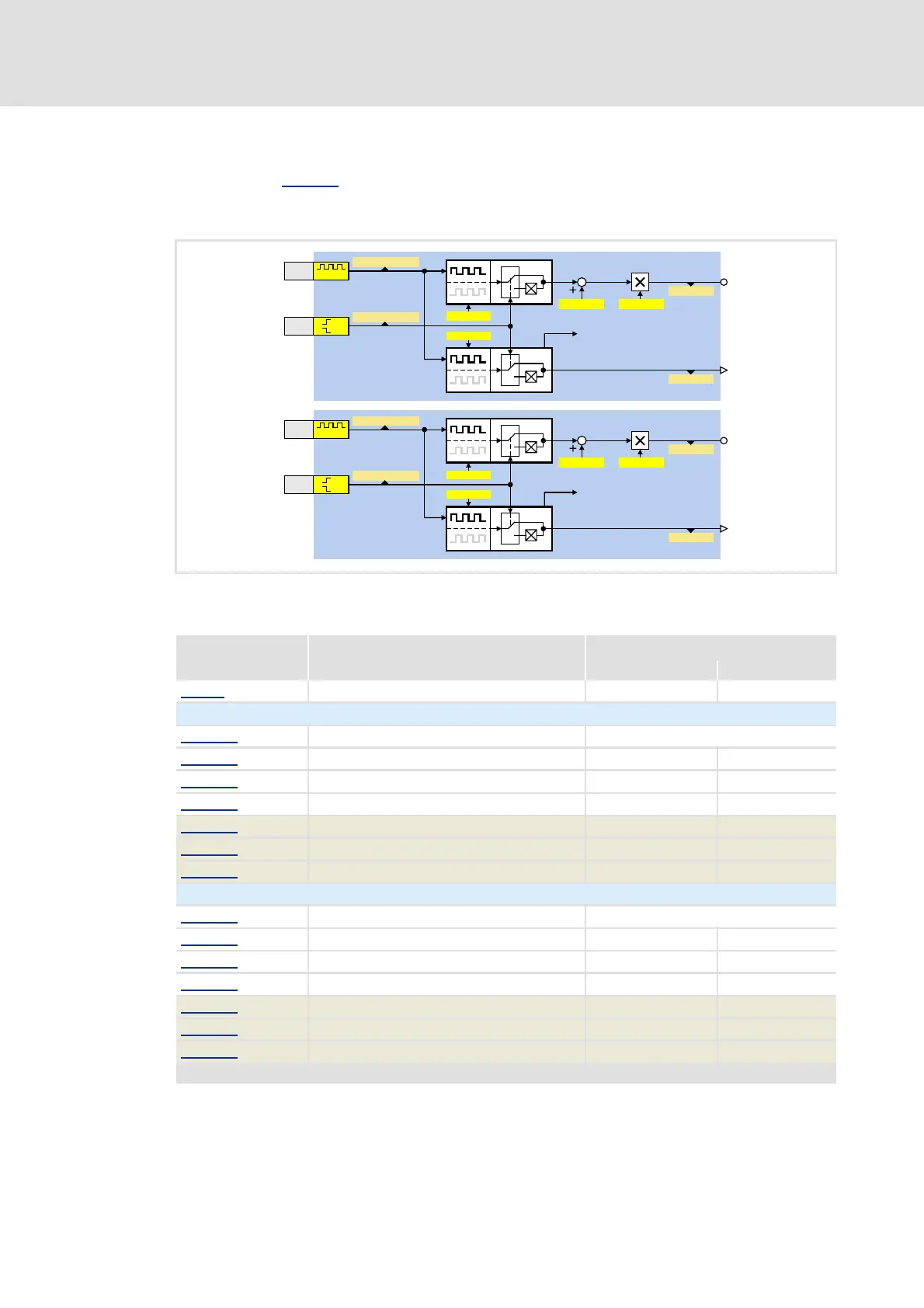

Function assignment 3: DI1(6)=FreqIn / DI2(7)=Direction
This setting in C00115
can be used to connect a single-track encoder to the DI1/DI2 or DI6/
DI7 terminals. If this is done, the rotation speed is evaluated via terminal DI1(6) and the
direction of rotation of the encoder (Low level ≡) is evaluated via the DI(7) terminal.
Short overview of the parameters for the frequency inputs:
Parameter Info Lenze setting
Value Unit
C00011 Appl.: Reference speed 1500 rpm
Frequency input DI1/DI2
C00115/1
Fct. DI 1/2 100kHz 0: DI1(6)=In / DI2(7)=In
C00420/1
Encoder increments at FreqIn12 128 Incr./rev.
C02842/1
FreqIn12: Offset 0.00 %
C02843/1
FreqIn12: Gain 100.00 %
C00443/1 DIx: Terminal level -
C00445/1 FreqIn12_nOut_v - Incr./ms
C00446/1 FreqIn12_nOut_a - %
Frequency input DI6/DI7
C00115/2
Fct. DI 6/7 10kHz 0: DI1(6)=In / DI2(7)=In
C00420/2
Encoder increments at FreqIn67 128 Incr./rev.
C02842/2
FreqIn67: Offset 0.00 %
C02843/2
FreqIn67: Gain 100.00 %
C00443/1 DIx: Terminal level -
C00445/2 FreqIn67_nOut_v - Incr./ms
C00446/2 FreqIn67_nOut_a - %
Highlighted in grey = display parameter
Q)UHT,QBD



2IIVHW *DLQ
& &



Q)UHT,QBY
&
&
&
&
',
Q)UHT,QBD



2IIVHW *DLQ
& &



Q)UHT,QBY
&
&
&
&
',
',
0&75/B6SHHGIHHGEDFN
0&75/B6SHHGIHHGEDFN
',
N+]


N+]


&%LW
&%LW
&%LW
&%LW
