Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 650/970

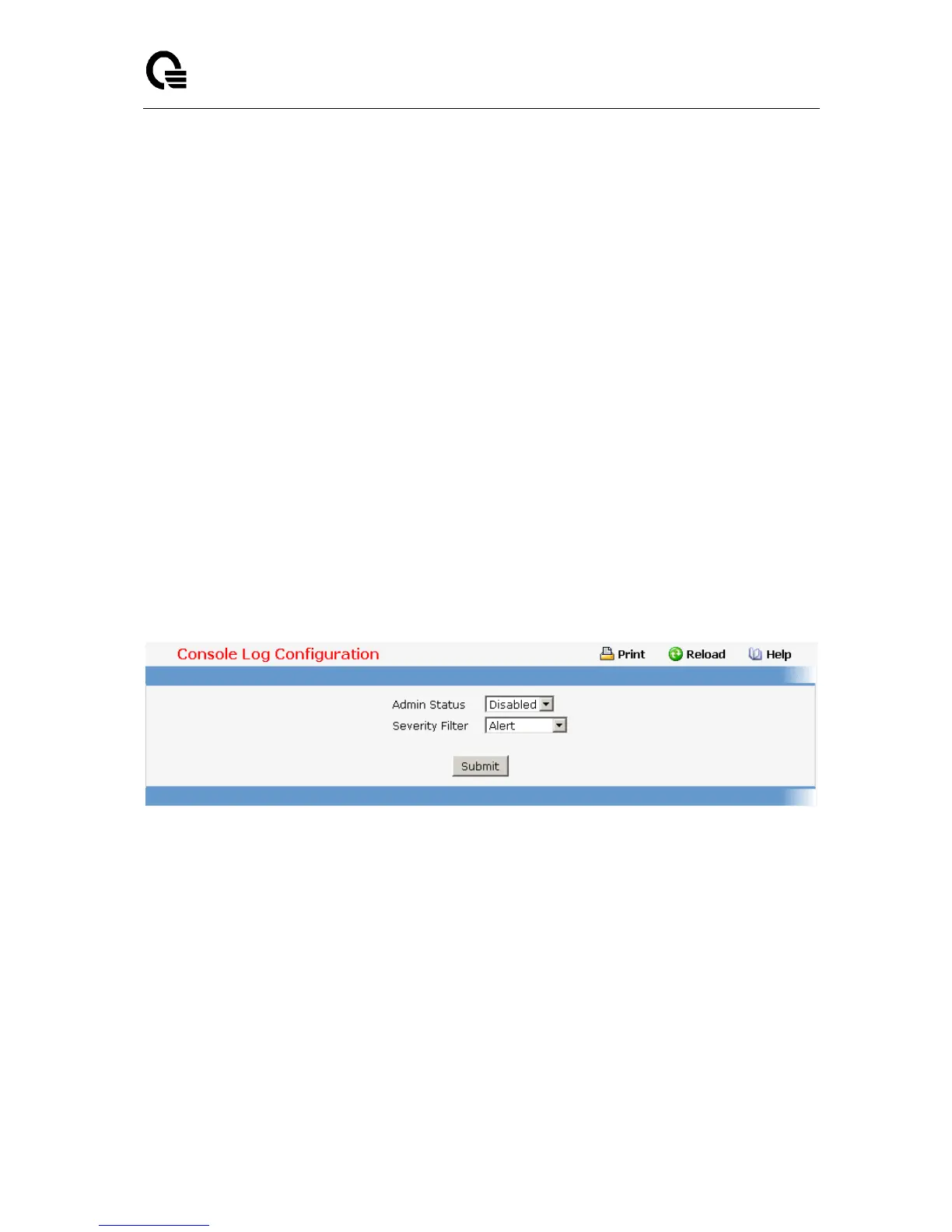

11.2.1.5.4. Configuring Console Log Page
This allows logging to any serial device attached to the host.
Configurable Data
Admin Status -A log that is "Disabled" shall not log messages. A log that is "Enabled"
shall log messages. Enable or Disable logging by selecting the corresponding line on the
pulldown entry field.
Severity Filter - A log records messages equal to or above a configured severity
threshold. Select the severity option by selecting the corresponding line on the pulldown
entry field. These severity levels have been enumerated below:
-Emergency (0): system is unusable
-Alert (1): action must be taken immediately
-Critical (2): critical conditions
-Error (3): error conditions
-Warning (4): warning conditions
-Notice(5): normal but significant conditions
-Info (6): informational messages
-Debug(7): debug-level messages
Command Buttons
Submit - Update the switch with the values you entered.
11.2.1.5.5. Viewing Event Log Page
Use this panel to display the event log, which is used to hold error messages for catastrophic
events. After the event is logged and the updated log is saved in FLASH memory, the switch
will be reset. The log can hold at least 2,000 entries (the actual number depends on the
platform and OS), and is erased when an attempt is made to add an entry after it is full. The
event log is preserved across system resets.
Non-Configurable Data
Entry - The number of the entry within the event log. The most recent entry is first.
Filename - The FASTPATH source code filename identifying the code that detected the
event.
Line - The line number within the source file of the code that detected the event.
