Custom Tag - Configure the EtherType in any range from (0 to 65535)
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain
the new values across a power cycle, you must perform a save.

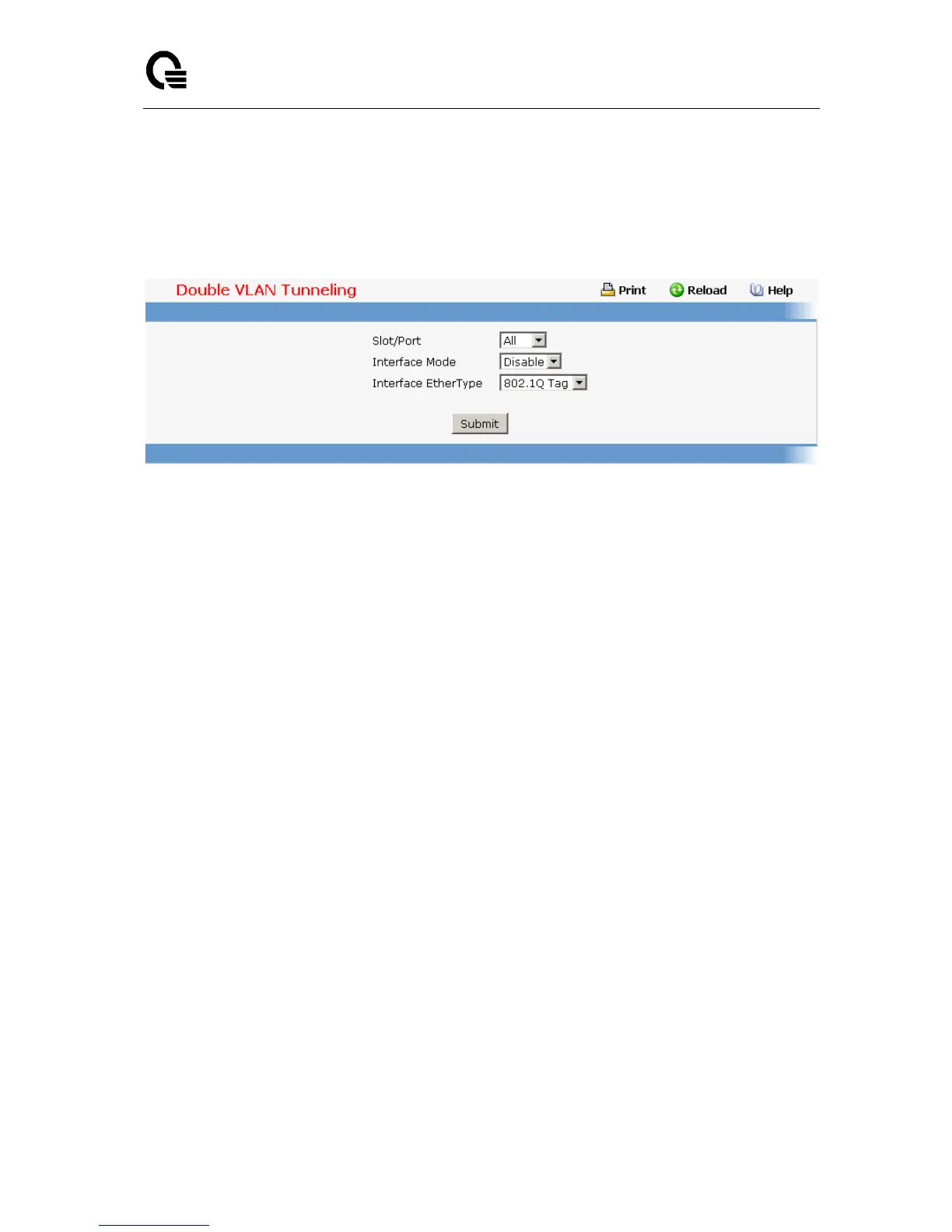

11.2.1.6.6. Configuring Double VLAN Tnuueling Summary Function Page
Non-Configurable Data
Slot/Port - The physical interface for which data is being displayed.
Interface Mode - This specifies the administrative mode via which Double VLAN Tagging
can be enabled or disabled. The default value for this is Disabled.
Interface EtherType - The two-byte hex EtherType to be used as the first 16 bits of the
DVlan tag.
o
802.1Q Tag - Commonly used tag representing 0x8100
o
vMAN Tag - Commonly used tag representing 0x88A8
o
Custom Tag - Configure the EtherType in any range from (0 to 65535)
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
