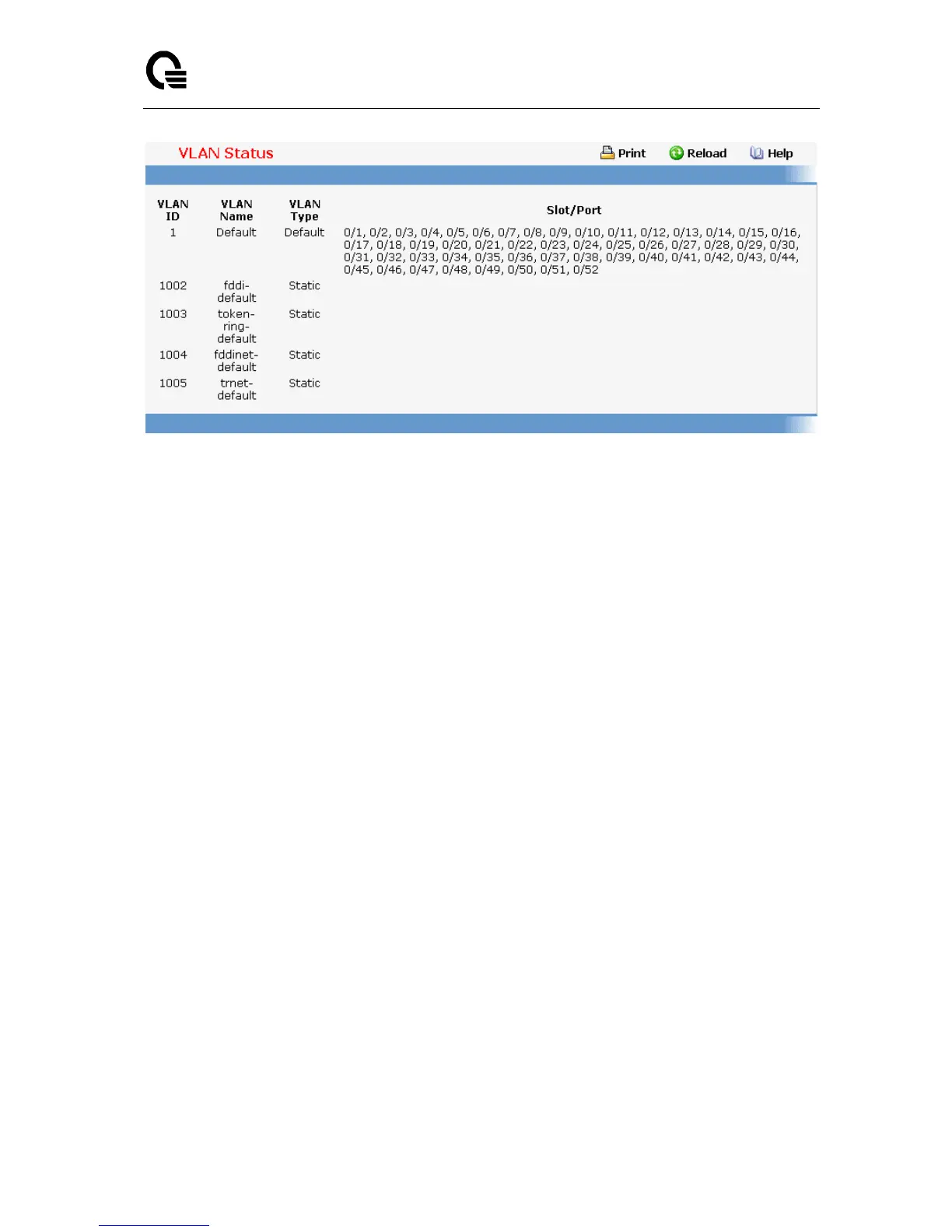

11.2.2.3.3. Configuring VLAN Port Configuration Page
Selection Criteria
Slot/Port - Select the physical interface for which you want to display or configure data.
Select 'All' to set the parameters for all ports to same values.
Configurable Data
Port VLAN ID - Specify the VLAN ID you want assigned to untagged or priority tagged
frames received on this port. The factory default is 1.
Acceptable Frame Types - Specify how you want the port to handle untagged and priority
tagged frames. If you select 'VLAN only', the port will discard any untagged or priority
tagged frames it receives. If you select 'Admit All', untagged and priority tagged frames
received on the port will be accepted and assigned the value of the Port VLAN ID for this
port. Whichever you select, VLAN tagged frames will be forwarded in accordance with the
IEEE 802.1Q VLAN standard. The factory default is 'Admit All'.
Ingress Filtering - Specify how you want the port to handle tagged frames. If you enable
Ingress Filtering on the pull down menu, a tagged frame will be discarded if this port is not
a member of the VLAN identified by the VLAN ID in the tag. If you select disable from the
pull down menu, all tagged frames will be accepted. The factory default is disabled.
Port Priority - Specify the default 802.1p priority assigned to untagged packets arriving at
the port.
Command Buttons
Submit - Update the switch with the values on this screen. If you want the switch to retain
the new values across a power cycle, you must perform a save.
