QUANTA LB4M - Page 723

UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 723/970

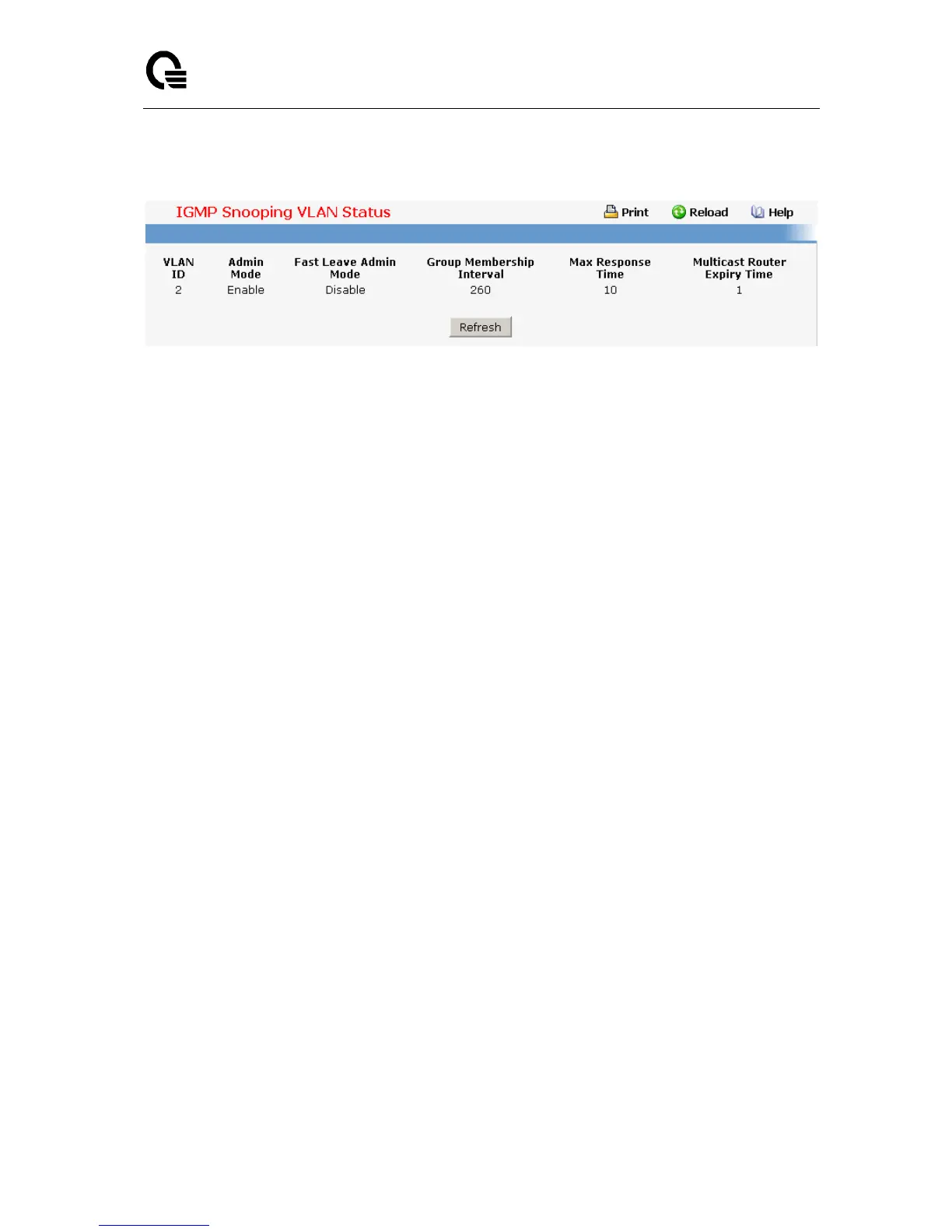

Refresh - Re-fetch the database and display it again starting with the first entry in the
table.
11.2.2.11.4. Configuring IGMP Snooping VLAN Page
Configurable Data
VLAN ID - Specifies list of VLAN IDs for which IGMP Snooping is enabled.
VLAN ID - Appears when "New Entry" is selected in VLAN ID combo box. Specifies
VLAN ID for which pre-configurable Snooping parameters are to be set.
Admin Mode - Enable or disable the Igmp Snooping for the specified VLAN ID.
Fast Leave Admin Mode - Enable or disable the Igmp Snooping Fast Leave Mode for
the specified VLAN ID.
Group Membership Interval - Sets the value for group membership interval of IGMP
Snooping for the specified VLAN ID. Valid range is (Maximum Response Time + 1) to
3600.
Maximum Response Time - Sets the value for maximum response time of IGMP
Snooping for the specified VLAN ID. Valid range is 1 to (Group Membership Interval -
1).Its value should be greater than group membership interval value.
Multicast Router Expiry Time - Sets the value for multicast router expiry time of IGMP
Snooping for the specified VLAN ID. Valid range is 0 to 3600.
Command Buttons
Submit - Update the switch with the values you entered.
