Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 722/970

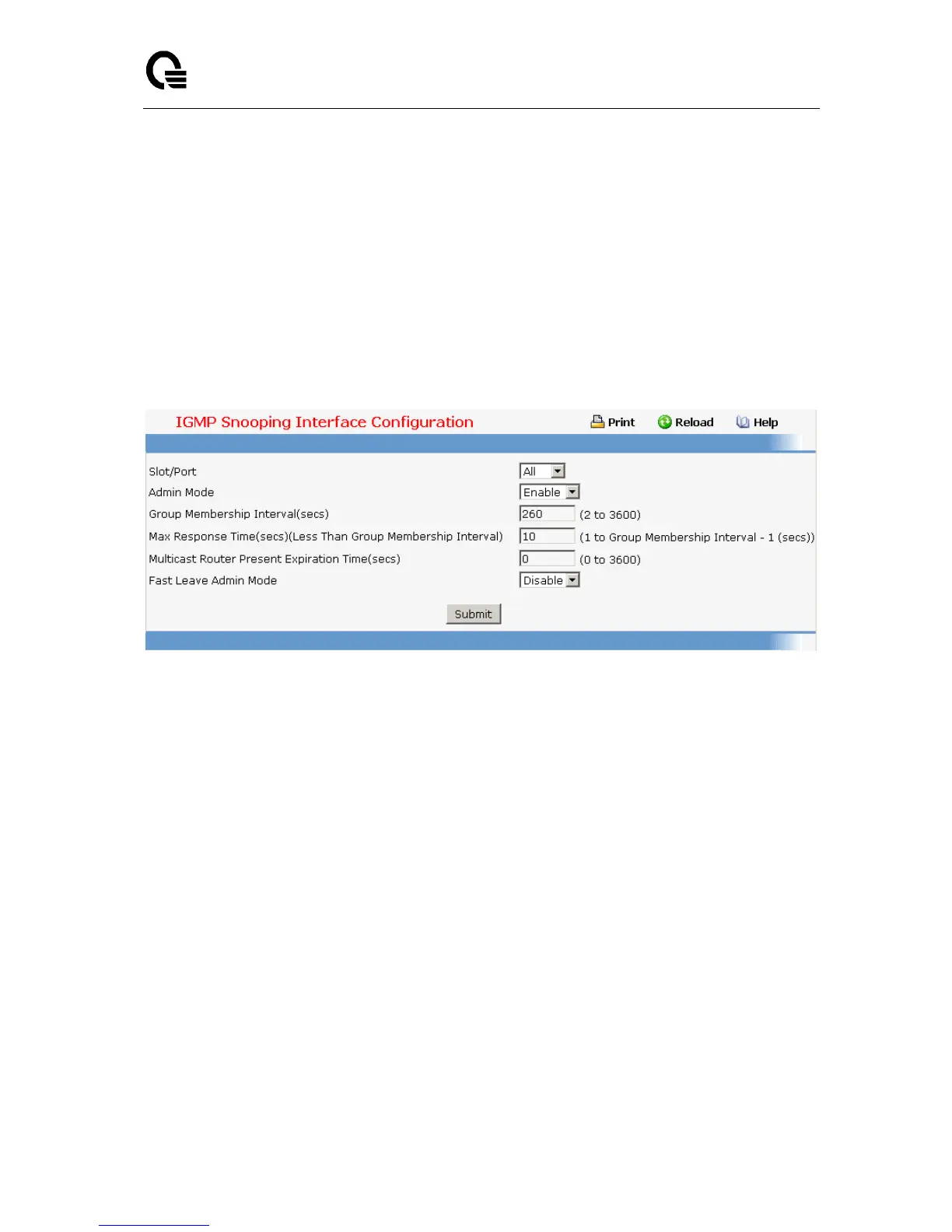

Multicast Router Present Expiration Time - Specify the amount of time you want the
switch to wait to receive a query on an interface before removing it from the list of
interfaces with multicast routers attached. Enter a value between 0 and 3600 seconds.
The default is 0 seconds. A value of zero indicates an infinite timeout, i.e. no expiration.
Fast Leave Admin mode - Select the Fast Leave mode for the a particular interface from
the pulldown menu. The default is disable.
Command Buttons
Submit - Update the switch with the values you entered. If you want the switch to retain
the new values across a power cycle you must perform a save. You will only see this
button if you have Read/Write access privileges.
11.2.2.11.3. Viewing IGMP Snooping VLAN Status Page
Non-Configurable Data
VLAN ID - All Vlan Ids for which the IGMP Snooping mode is Enabled.
Admin Mode - Igmp Snooping Mode for Vlan ID.
Fast Leave Admin Mode - Fast Leave Mode for Vlan ID.
Group Membership Interval - Group Membership Interval of IGMP Snooping for the
specified VLAN ID. Valid range is 2 to 3600.
Maximum Response Time - Maximum Response Time of IGMP Snooping for the
specified VLAN ID. Valid range is 1 to 3599.Its value should be greater than group
membership interval value.
Multicast Router Expiry Time - Multicast Router Expiry Time of IGMP Snooping for the
specified VLAN ID. Valid range is 0 to 3600.
Configurable Data
