UANTA COMPUTER INC.
Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 726/970
Non-Configurable Data
VLAN ID - All Vlan Ids for which the Multicast Router Mode is Enabled
Multicast Router - Multicast Router Mode for Vlan ID.

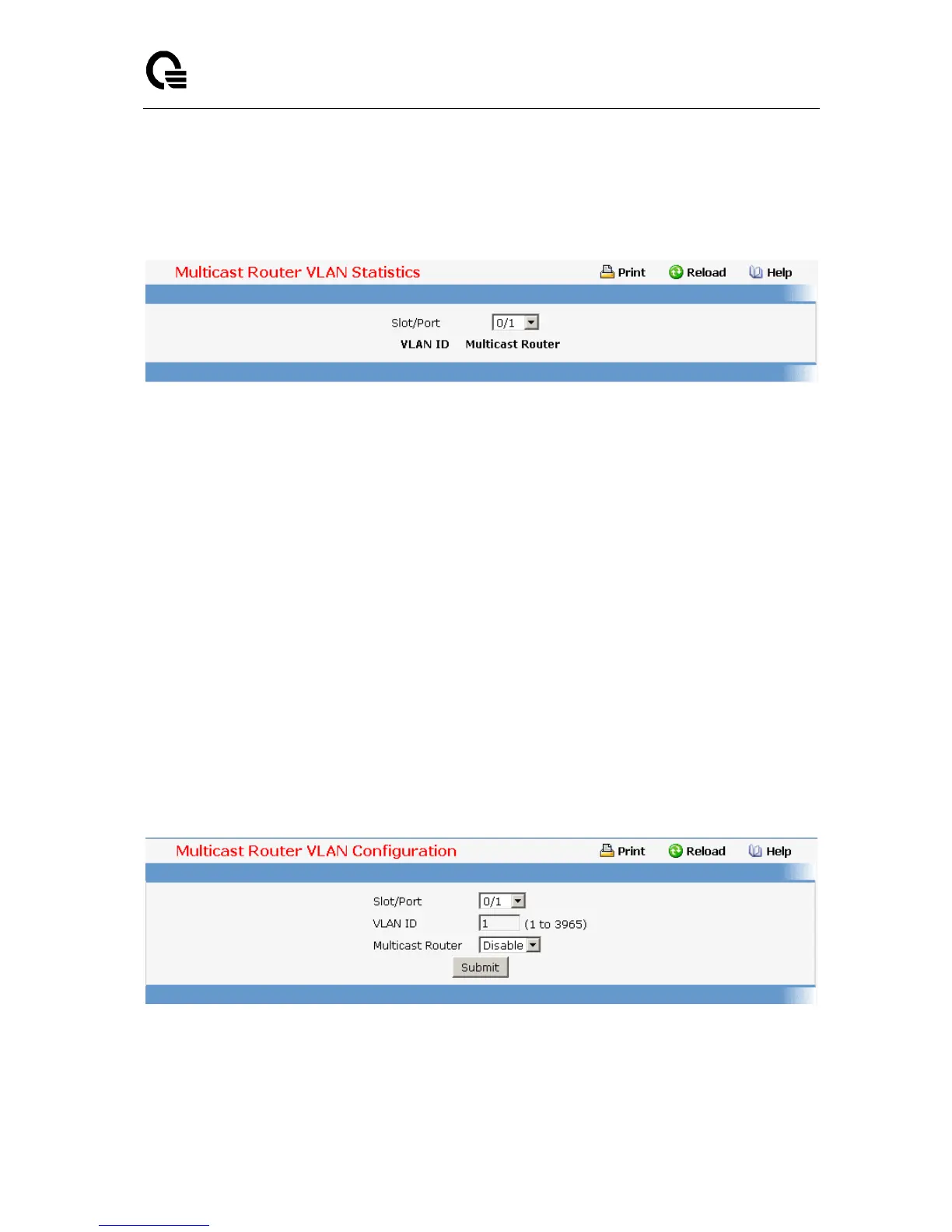

11.2.2.11.8. Configuring Multicast Router VLAN Page
Selection Criteria
Slot/Port - The select box lists all Slot/Ports.Select the interface for which you want
Multicast Router to be enabled.
Configurable Data
VLAN ID - VLAN ID for which the Multicast Router Mode is to be Enabled or Disabled.
Multicast Router - For the Vlan ID, multicast router may be enabled or disabled using
this.
Command Buttons
Submit - Update the switch with the values you entered.
11.2.2.11.9. Configuring L2 Static Multicast Group Configuration Page
Non-Configurable Data
