Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 727/970

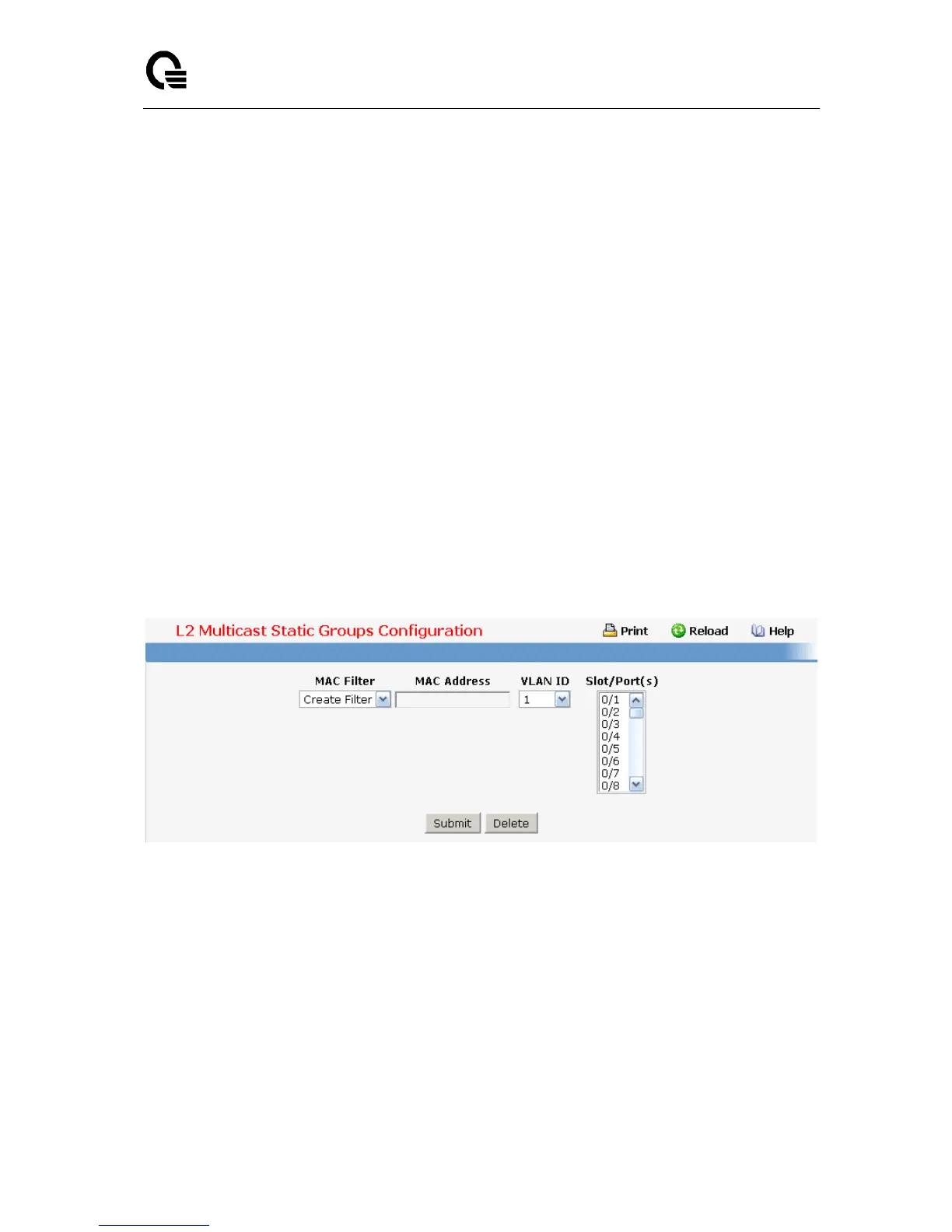

MAC Filter - This is the list of MAC address and VLAN ID pairings for all configured
L2Mcast Groups. To change the port mask(s) for an existing L2Mcast Group, select the
entry you want to change. To add a new L2Mcast Group, select "Create Filter" from the top
of the list.
Configurable Data
MAC Address - The MAC address of the L2Mcast Group in the format 01:00:5E:xx:xx:xx.
You can only change this field when you have selected the "Create Filter" option. You
cannot define L2Mcast Group for these MAC addresses:
00:00:00:00:00:00
01:00:5E:00:00:01 to 01:00:5E:00:00:FF
FF:FF:FF:FF:FF:FF
VLAN ID - The VLAN ID used with the MAC address to fully identify packets you want
L2Mcast Group. You can only change this field when you have selected the "Create Filter"
option.
Solt/Port(s) - List the ports you want included into L2Mcast Group.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain
the new values across a power cycle you must perform a save.
Delete - Remove the currently selected L2Mcast Group.
11.2.2.11.10. Viewing L2 Multicast Group Status Page
Use this panel to display information about entries in the L2Mcast Static/Dynamic Groups.
These entries are used by the transparent bridging function to determine how to forward a
received frame.
Non-Configurable Data
VLAN - L2Mcast Group's VLAN ID value.
MAC Address - A multicast MAC address for which the switch has forwarding information.
The format is a six-byte MAC address. For example: 01:00:5E:00:11:11.
Slot/Ports - the interface number belongs to this Multicast Group.
Active State - The active interface number belongs to this Multicast Group.
