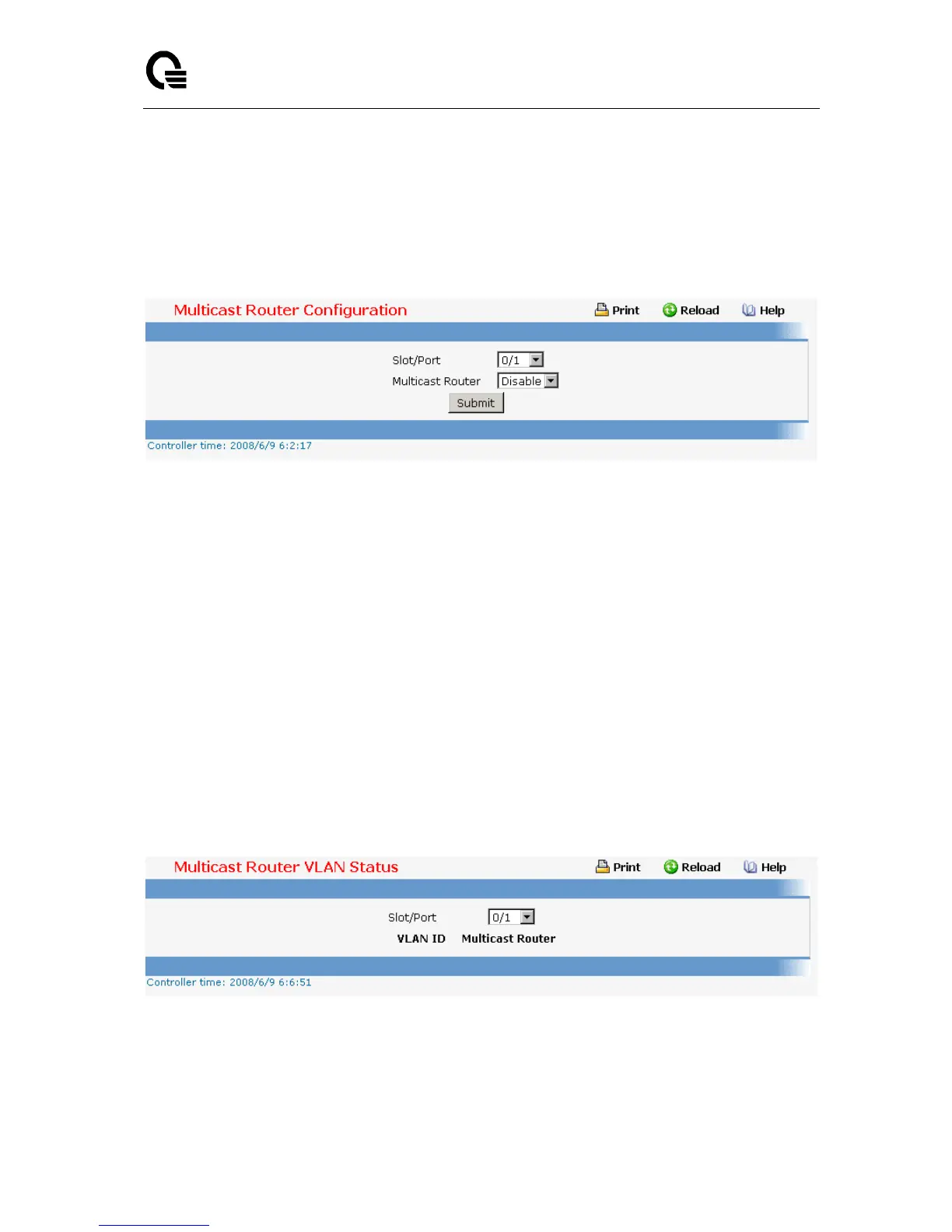

Multicast Router to be enabled.
Multicast Router - Enable or disable Multicast Router on the selected Slot/Port.
Command Buttons
Submit - Update the switch with the values you entered.
11.2.2.13.7. Configuring Multicast Router VLAN Status Page
Selection Criteria
Slot/Port - The select box lists all Slot/Ports.Select the interface for which you want to
display the status.
Non-Configurable Data
VLAN ID - All Vlan Ids for which the Multicast Router Mode is Enabled
Multicast Router - Multicast Router Mode for Vlan ID
Command Buttons
Refresh - Re-fetch the database and display it again starting with the first entry in the
table.
11.2.2.13.8. Configuring Multicast VLAN Configuration Page
Selection Criteria
