Layer 2,3,IPv6+QoS Switch
_____________________________________________________________________________
Layer 2,3,IPv6+QoS Network Switch User Manual Version 0.1 Page: 742/970

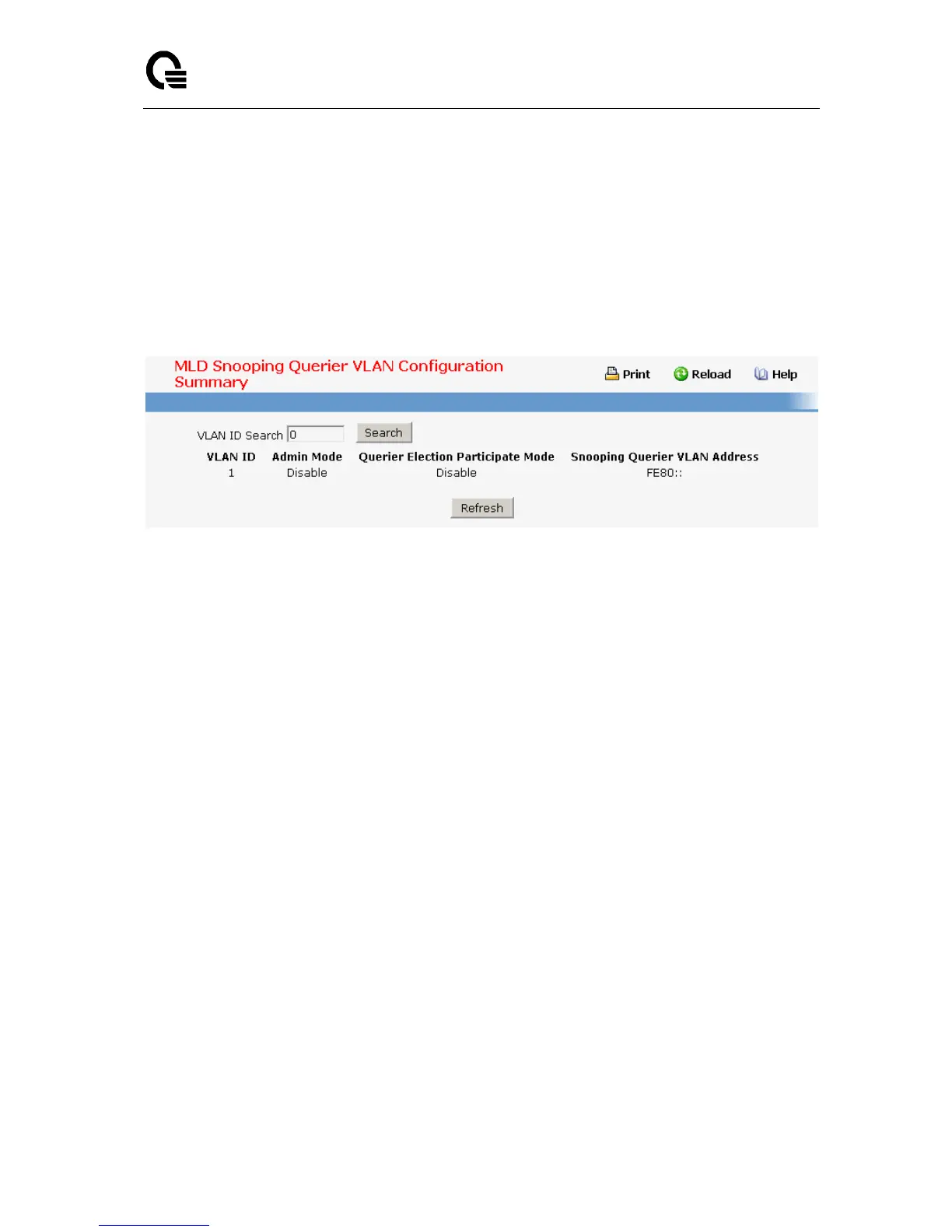

Snooping Querier VLAN Address - Displays the Snooping Querier Address to be used
as source address in periodic MLD queries sent on the specified VLAN.
Command Buttons
Search - Search for the specified Vlan ID.
Refresh - Reload the information on the page.
11.2.2.14.4. Configuring MLD Snooping Querier VLAN Status Page
Non-Configurable Data
VLAN ID - Specifies the VLAN ID on which MLD Snooping Querier is administratively
enabled and VLAN exists in the VLAN database.
Operational State - Specifies the operational state of the MLD Snooping Querier on a
VLAN. It can be in any of the following states:
Querier - Snooping switch is the Querier in the VLAN. The Snooping switch will send
out periodic queries with a time interval equal to the configured querier query interval.
If the snooping switch sees a better querier in the VLAN, it moves to non-querier
mode.
Non-Querier - Snooping switch is in Non-Querier mode in the VLAN. If the querier
expiry interval timer is expires, the snooping switch will move into querier mode.
Disabled - Snooping Querier is not operational on the VLAN. The Snooping Querier
moves to disabled mode when MLD Snooping is not operational on the VLAN or
when the querier address is not configured or the network management address is
also not configured.
Operational Version - Displays the operational MLD protocol version of the querier.
Last Querier Address - Displays the IP address of the last querier from which a query
was snooped on the VLAN.
